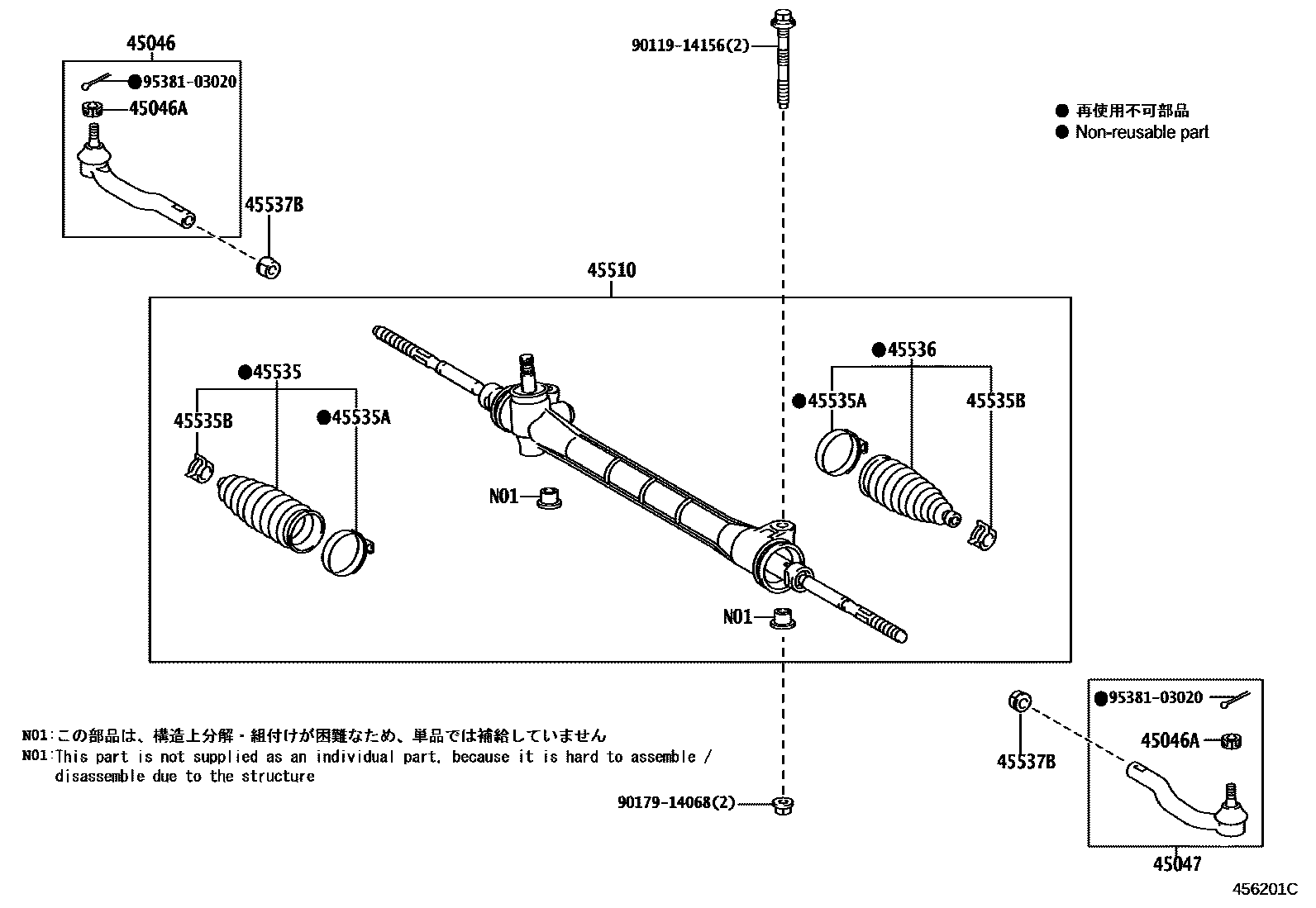

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-19415iNZE18#,ZRE186201208-201503

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNZE18#,ZRE186201208-201503

45047END SUB-ASSY, TIE ROD, LH

main45047-19215iNZE18#,ZRE186201208-201503

45510GEAR ASSY, STEERING

main45510-12490iNRE185,ZRE186,ZWE186201503

main45510-12610iNZE181201208-201304

main45510-12611iNZE181201503

main45510-12620iNZE184201208-201304

main45510-12621iNZE184201305-201503

main45510-12500iZWE186201604

45535BOOT, STEERING RACK, NO.1

main45535-49015iNZE18#,ZRE186201208-201503

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010×2iNRE185,NZE18#,ZRE186,ZWE186201503

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNRE185,NZE18#,ZRE186,ZWE186201503

45536BOOT, STEERING RACK, NO.2

main45535-49015iNRE185,NZE18#,ZRE186,ZWE186201503

45537BNUT, RACK END LOCK

main90179-15006×2iNRE185,NZE18#,ZRE186,ZWE186201503

9011914156

main90119-14156

9017914068

main90179-14068

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section
