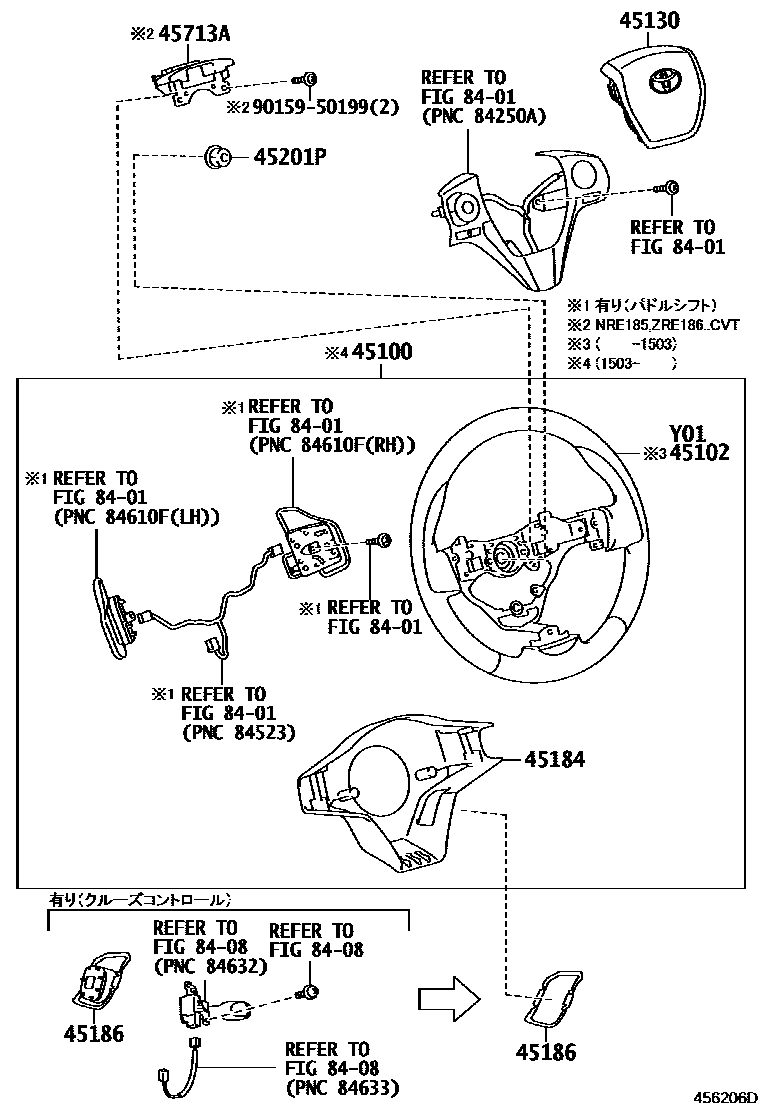

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12F60-C0iZWE186201604-201805

main45100-12G30-C0iNRE185,ZRE186..CVT201503-201805

main45100-12F70-C0supersedes 45100-12F60-C0iNZE18#201503-201805

45102WHEEL SUB-ASSY, STEERING

main45102-12B40-C0supersedes 45102-12B30-C0iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

45130BUTTON ASSY, HORN

main45130-12D10-C0iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

BLACK,TRIM0#,2#; BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12370-C0iNZE18#; ZRE186..RS201503-201805

BLACK,TRIM2#; BLACK,TRIM2#,3#

main45184-12380-C0iNRE185,ZRE186..CVT201503-201805

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-12030-C0iNZE18#,ZRE186..CVT; ZRE186..RS201208-201503

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45186-12040-C0iNRE185201503-201805

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iNZE18#,ZRE186201208-201503

45713ADAMPER, STEERING SHAKE

main45713-12180iZRE186..180201208-201503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
