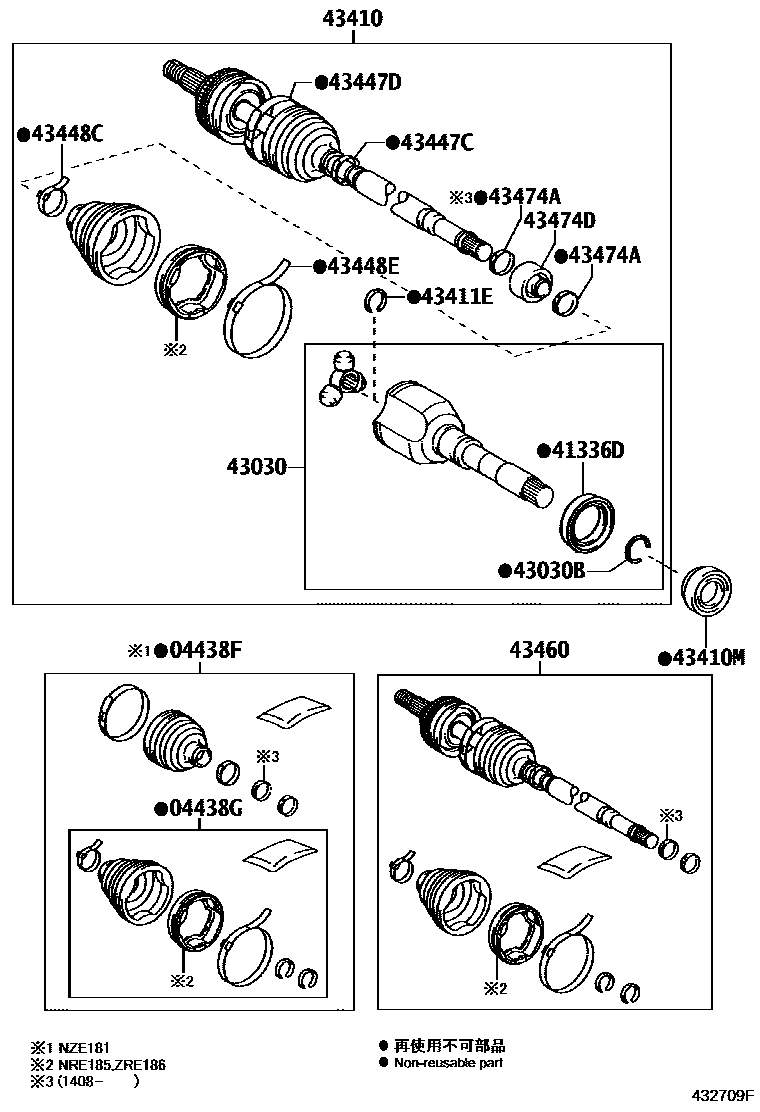

FRONT DRIVE SHAFT

0001 1������ 0002 1������ 0003 1������ 0004 1������� 0005 1������� 0006 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12750iNZE184201208-201509

sub04427-12751

main04427-12752iNZE184201509-201805

sub04427-12755

main04427-52891iNZE181201208-201805

sub04427-52897

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-12410iNZE184201208-201509

sub04437-12411

main04437-12411iNZE184201509-201805

main04437-47033iZWE186201604-201805

main04437-52191iNZE181201208-201805

main04438-12A00iNRE185,ZRE186201208-201509

sub04438-12A01

main04438-12A01iNRE185,ZRE186201509-201805

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNZE181201208-201503

main41336-12020iZWE186201604

main41336-12060iZRE186201208-201503

main41336-52020iNZE184201208-201503

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12131iNZE184201208-201805

main43040-12120iZRE186201208-201805

main43040-47010iZWE186201604-201805

main43403-10011iNZE181201208-201805

sub43403-0W031

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iNZE181201208-201503

main90521-27005iZRE186201208-201503

main90521-33002iZWE186201604

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12740iNZE181201208-201805

sub43410-12741

main43410-12760iZRE186201208-201805

main43410-12770iNZE184201208-201805

main43410-12B30iZWE186201604-201805

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34035iNZE181201208-201308

sub90311-34046

main90311-34046iNZE181201308-201805

sub90311-34050

main90311-35055iZRE186..180201208-201504

sub90311-35069

main90311-35065iZRE186..RS201208-201805

main90311-35069iNRE185,ZRE186..CVT201505-201805

main90311-40037iZWE186201604-201805

main90316-28003iNZE184201208-201805

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iNRE185,NZE184,ZRE186,ZWE186201208-201805

main90520-22001iNZE181201208-201805

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZRE186201208-201503

main42345-52260iNZE18#201208-201503

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZRE186201208-201503

main42345-52250iNZE18#201208-201503

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iNZE184,ZRE186201208-201805

main90949-01078iNZE181201208-201805

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iNRE185,NZE184,ZRE186,ZWE186201208-201805

main90949-01146iNZE181201208-201805

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-80129iNZE181201208-201408

sub43460-80158

main43460-80153iZRE186201208-201509

sub43460-80167

main43460-80158iNZE181201408-201805

sub43460-80194

main43460-80167iNRE185,ZRE186201509-201805

main43460-80179iZWE186201604-201805

main43470-80319iNZE184201208-201509

sub43470-80380

main43470-80380iNZE184201509-201805

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-12100iNRE185,ZRE186,ZWE186201208-201805

main42345-14010iNZE181201208-201805

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12140iZRE186201208-201805

main43474-47020iZWE186201604-201805

main43474-52030iNZE181201208-201805

15 parts on this diagram · 6 diagrams in section
