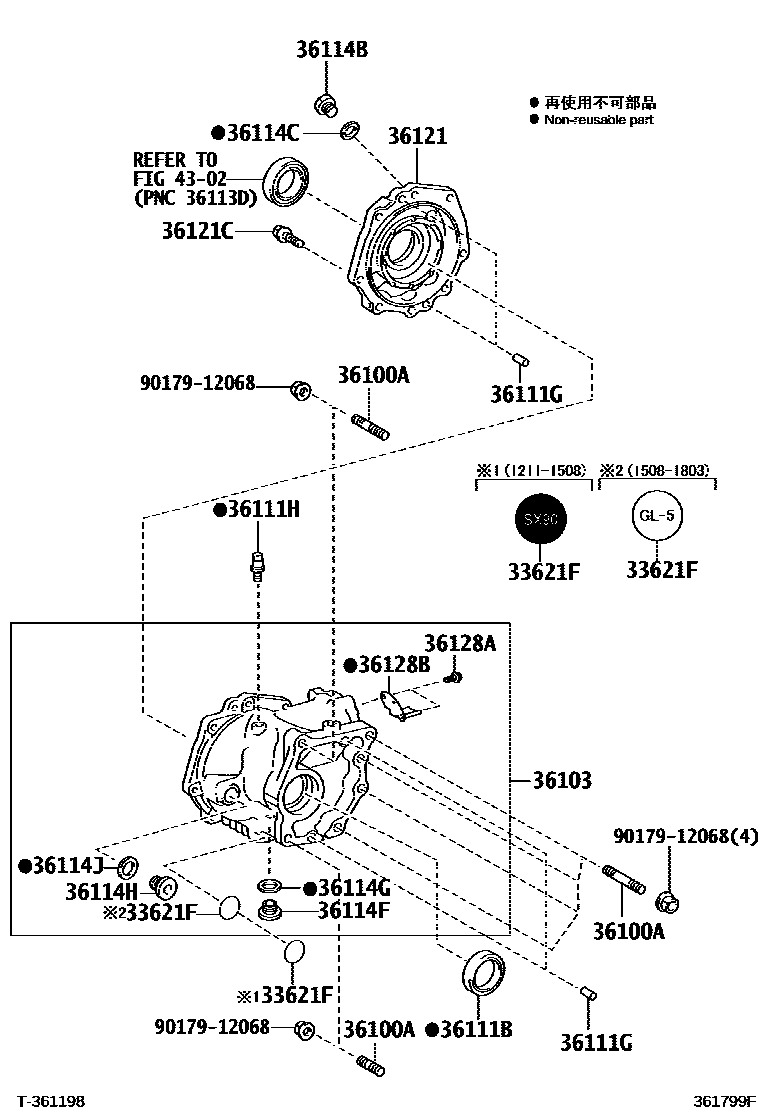

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42040iNZE184201211-201508

main33621-48020iNZE184201508-201803

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iNZE184201208-201805

main90116-12034iNZE184201208-201805

main90116-12041iNZE184201208-201805

36103CASE SUB-ASSY, TRANSFER

main36103-42050iNZE184201211-201508

main36103-42051iNZE184201508-201606

main36103-42052iNZE184201606

main36103-52010iNZE184201208-201211

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iNZE184201208-201503

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iNZE184201208-201503

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iNZE184201208-201503

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iNZE184201208-201805

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iNZE184201208-201805

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iNZE184201208-201503

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iNZE184201208-201503

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iNZE184201208-201503

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iNZE184201208-201503

36121COVER, TRANSFER CASE, NO.1

main36121-52020iNZE184201208-201503

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030iNZE184201208-201503

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614iNZE184201208-201503

36128BDEFLECTOR, BREATHER OIL

main36128-52010iNZE184201208-201503

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912068

main90179-12068

18 parts on this diagram · 1 diagram in section
