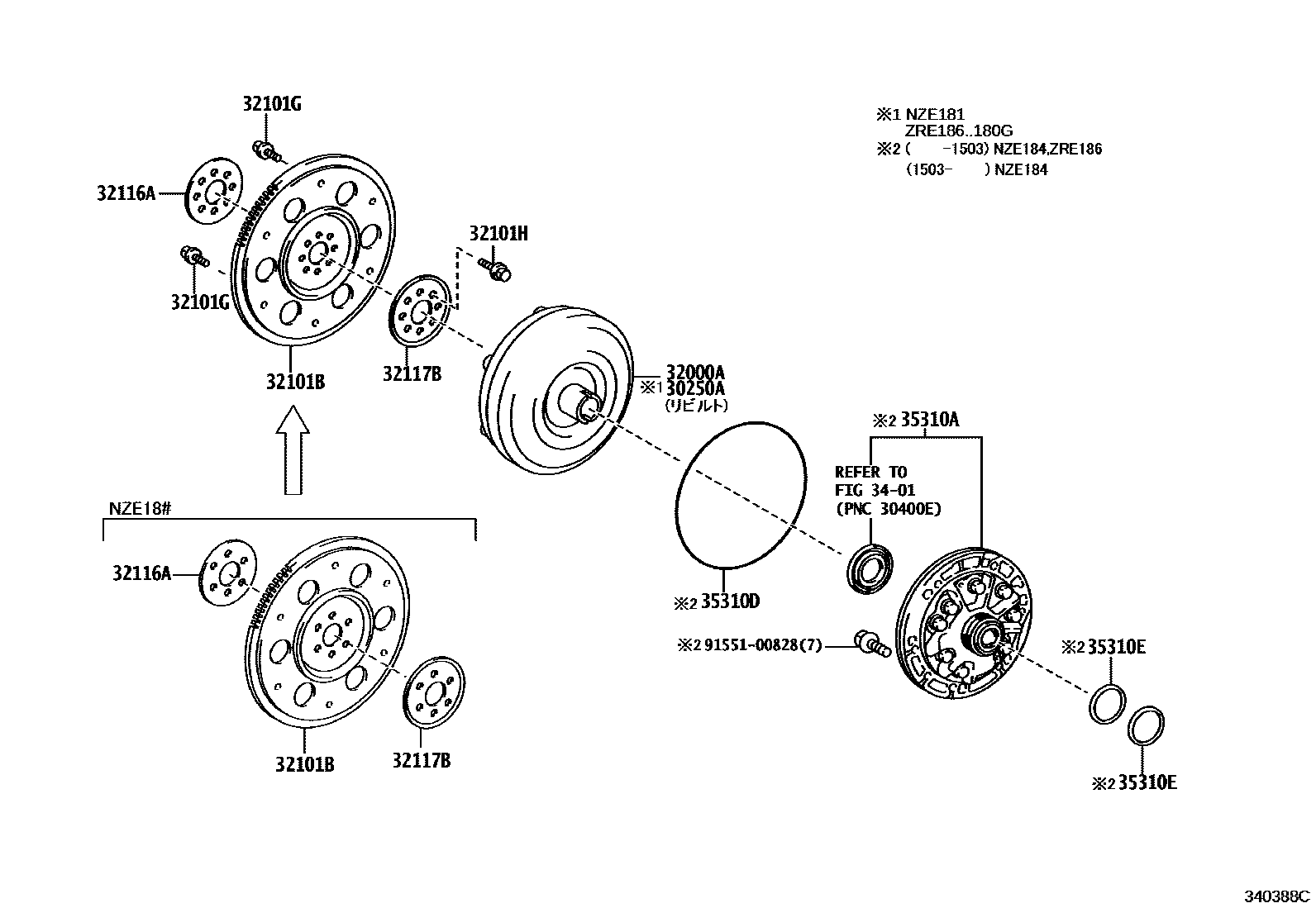

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-12480iNZE181201208-201503

main30250-12490iZRE186..180201503-201805

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE186..180201208-201503

main32000-12410iNZE184201208-201503

main32000-12450iNRE185201503-201711

main32000-12451iNRE185201712-201805

main32000-12480iNZE181201208-201503

main32000-12490iZRE186..180201503-201805

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE186..180201208-201503

main32101-52021iNZE18#201208-201503

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNZE18#,ZRE186..CVT201208-201503

main90119-08498×5iNZE18#; ZRE186..180201208-201503

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNZE18#; ZRE186..180201208-201503

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE186..180201208-201503

main32116-52030iNZE18#201208-201503

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE186..180201208-201503

main32117-52030iNZE18#201503-201805

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-12121iNZE184,ZRE186..CVT201208-201503

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99133iNZE184201503-201701

main90301-99202iNZE184201702-201805

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iNZE184,ZRE186..CVT201208-201503

main35617-12031×2iNZE184201611-201805

9155100828

main91551-00828

12 parts on this diagram · 1 diagram in section
