TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

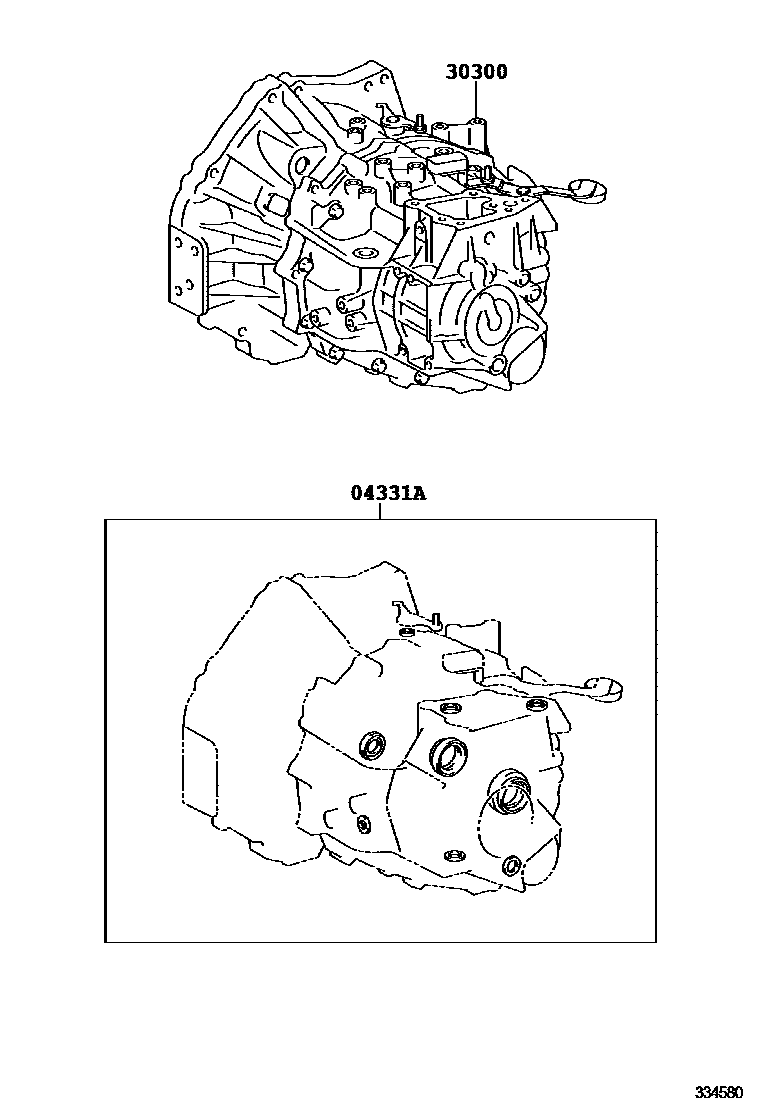

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20250i201208-201305

main04331-20252i201305-201503

main04331-20270i201612

30300TRANSAXLE ASSY, MANUAL

main30300-12G00i201208-201305

main30300-12G70i201305-201503

2 parts on this diagram · 1 diagram in section
