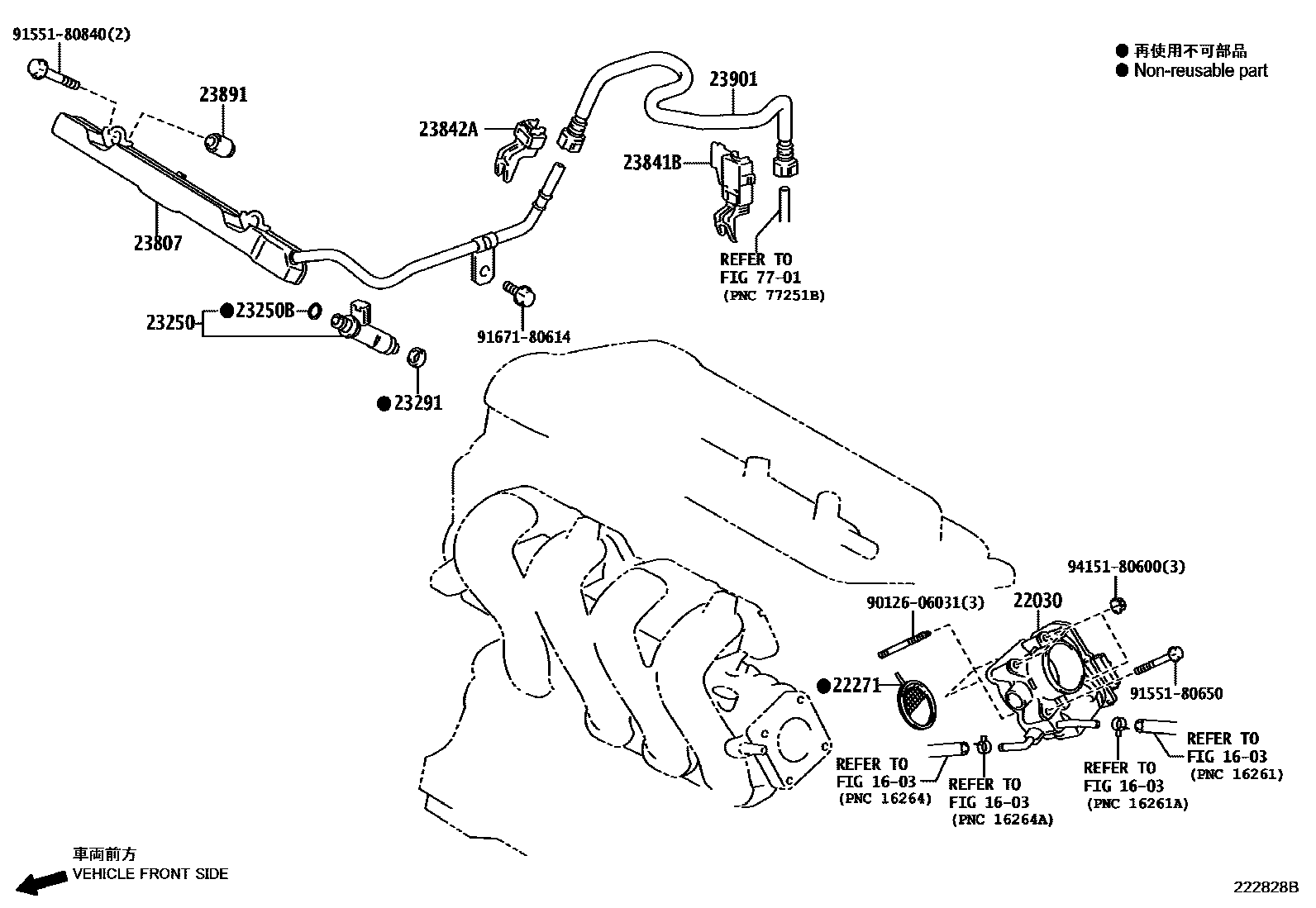

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZE184201503

main22030-21040i1NZFE..NZE181201208-201503

main22030-37050i2ZRFAE..ZRE186201503-201805

main22030-37060i2ZRFXE..ZWE186201604-201805

main22030-47080i8NRFTS..NRE185201503

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZE18#201208-201503

main22271-37010i2ZRFXE..ZWE186201604

main22271-47060×2i8NRFTS..NRE185201503

main22271-75031i2ZRFAE..ZRE186201503

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NZE184201208-201503

main23209-21100×4i1NZFE..NZE181201208-201503

main23209-39146×4i2ZRFXE..ZWE186201604

main23209-39235×4i2ZRFAE..ZRE186201208-201503

main23209-47070-01×4i8NRFTS..NRE185201503

main23209-47070-02×4i8NRFTS..NRE185201503

main23209-47070-03×4i8NRFTS..NRE185201503

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×4i8NRFTS..NRE185201503

main90301-07037×4i1NZFE..NZE18#; 2ZRFAE..ZRE186201208-201503

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE..NZE18#; 2ZRFAE..ZRE186201208-201503

main23291-28020×4i2ZR#..ZRE186,ZWE186201503

main23291-31020×4i8NRFTS..NRE185201503

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZE18#201208-201410

main23807-21031i1NZFE..NZE18#201411-201503

main23814-37051i2ZRFAE..ZRE186201208-201503

main23814-37061i2ZRFXE..ZWE186201604

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i1NZFE..NZE18#; 2ZRFAE..ZRE186201208-201210

main23841-37090i1NZFE..NZE18#; 2ZRFAE..ZRE186201211-201503

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-36010i1NZFE..NZE18#201503

main23842-28010i2ZR#..ZRE186,ZWE186201503

23891SPACER, FUEL DELIVERY

main23891-21010×2i1NZFE..NZE18#201208-201503

23901TUBE SUB-ASSY, FUEL

main23901-21240i1NZFE..NZE18#201503

main23901-22180i2ZRFAE..ZRE186201208-201503

main23901-37200i2ZRFXE..ZWE186201604

main23901-47090i8NRFTS..NRE185201503-201802

main23901-47120i8NRFTS..NRE185201802

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 5 diagrams in section
