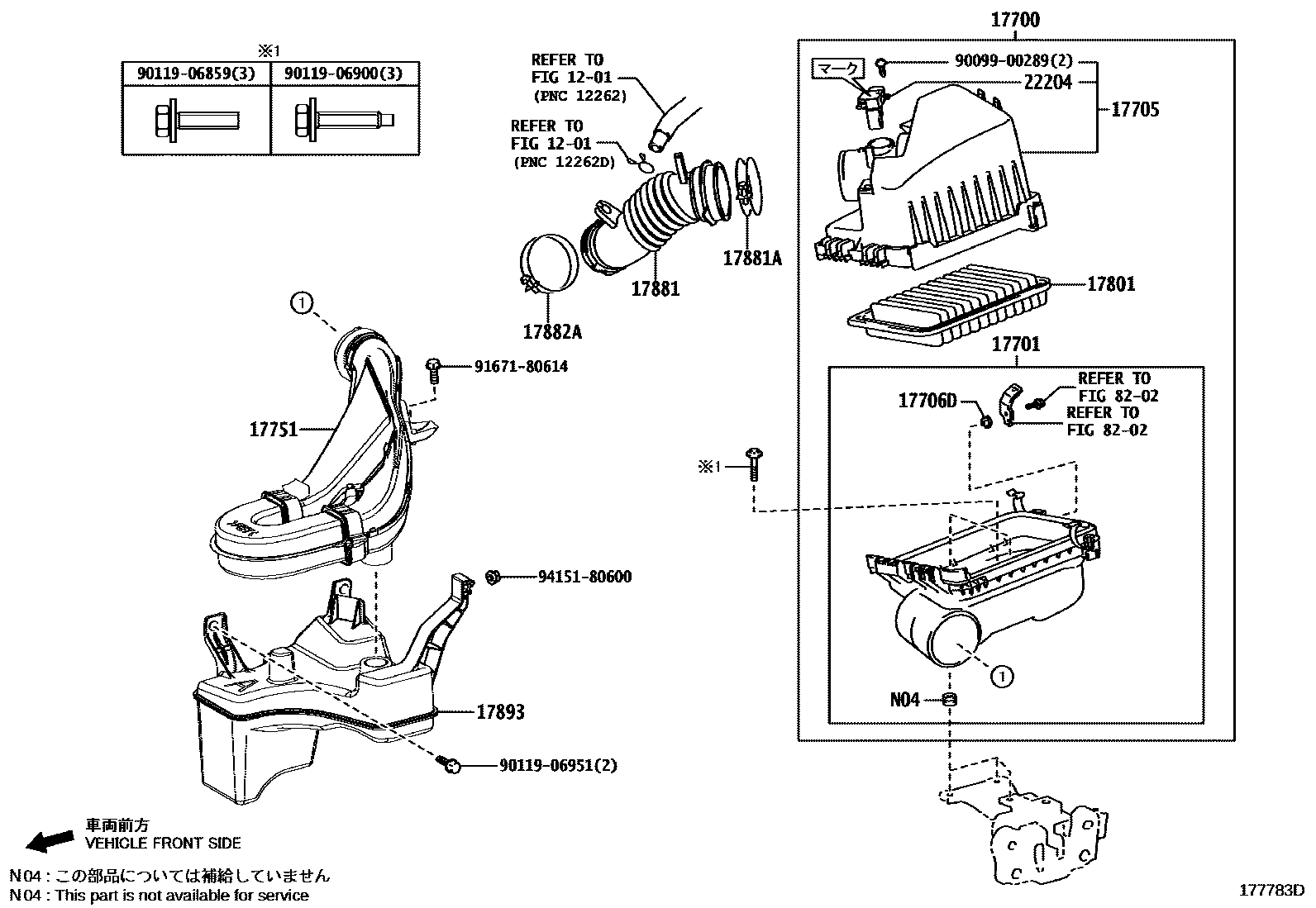

AIR CLEANER

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1 0006 1

1201

17700CLEANER ASSY, AIR

main17700-21171i1NZFE..NZE18#201208-201503

main17700-37231i2ZRFAE..ZRE186201208-201503

main17700-37252i2ZRFXE..ZWE186201604

17701CASE SUB-ASSY, AIR CLEANER

main17701-21110i1NZFE..NZE18#201208-201805

main17701-37170i2ZRFXE..ZWE186201604-201805

17705CAP SUB-ASSY, AIR CLEANER

main17705-0Y140i8NRFTS..NRE185201503

main17705-21152i1NZFE..NZE18#201208-201503

main17705-37111i2ZRFAE..ZRE186201208-201503

main17705-37121i2ZRFXE..ZWE186201604

17706DSTAY SUB-ASSY, AIR CLEANER

main17706-21010i1NZFE..NZE18#201208-201503

17751INLET, AIR CLEANER, NO.1

main17751-37120i2ZRFAE..ZRE186201208-201503

main17751-47070i1NZFE,8NRFTS..NRE185,NZE184201208-201503

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i2ZRFAE..ZRE186201208-201503

main17801-37021i2ZRFXE..ZWE186201604

17881HOSE, AIR CLEANER, NO.1

main17880-21100i1NZFE..NZE18#201208-201503

main17880-37210i2ZRFAE..ZRE186201208-201503

main17881-0Y100i8NRFTS..NRE185201503

main17881-37120i2ZRFXE..ZWE186201604

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZWE186201604

main96111-10670i8NRFTS..NRE185201503

main96111-10750i8NRFTS..NRE185201503

main96111-10750i1NZFE..NZE18#201208-201503

17882HOSE, AIR CLEANER, NO.2

main17882-37040i2ZRFXE..ZWE186201604

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE..ZWE186201604

main96111-10650i1NZFE..NZE18#201208-201503

17893RESONATOR, INTAKE AIR

main17893-37060i1NZFE..NZE181201208-201503

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i1NZFE..NZE18#201208-201503

main22204-0P010i1NZFE..NZE18#201208-201503

main22204-0T010i1NZFE..NZE18#201208-201503

main22204-0T040i2ZRFAE..ZRE186201208-201503

sub22204-28010

main22204-0V010i2ZR#..ZRE186,ZWE186201208-201503

main22204-0V020i2ZR#..ZRE186,ZWE186201208-201503

main22204-28010i2ZRFAE..ZRE186201208-201503

main22204-31020i1NZFE..NZE18#201208-201503

main22204-75030i8NRFTS..NRE185201503

8202

9009900289

main90099-00289

9011906859

main90119-06859

9011906900

main90119-06900

9011906951

main90119-06951

9167180614

main91671-80614

9415180600

main94151-80600

20 parts on this diagram · 6 diagrams in section
