ENGINE OIL COOLER

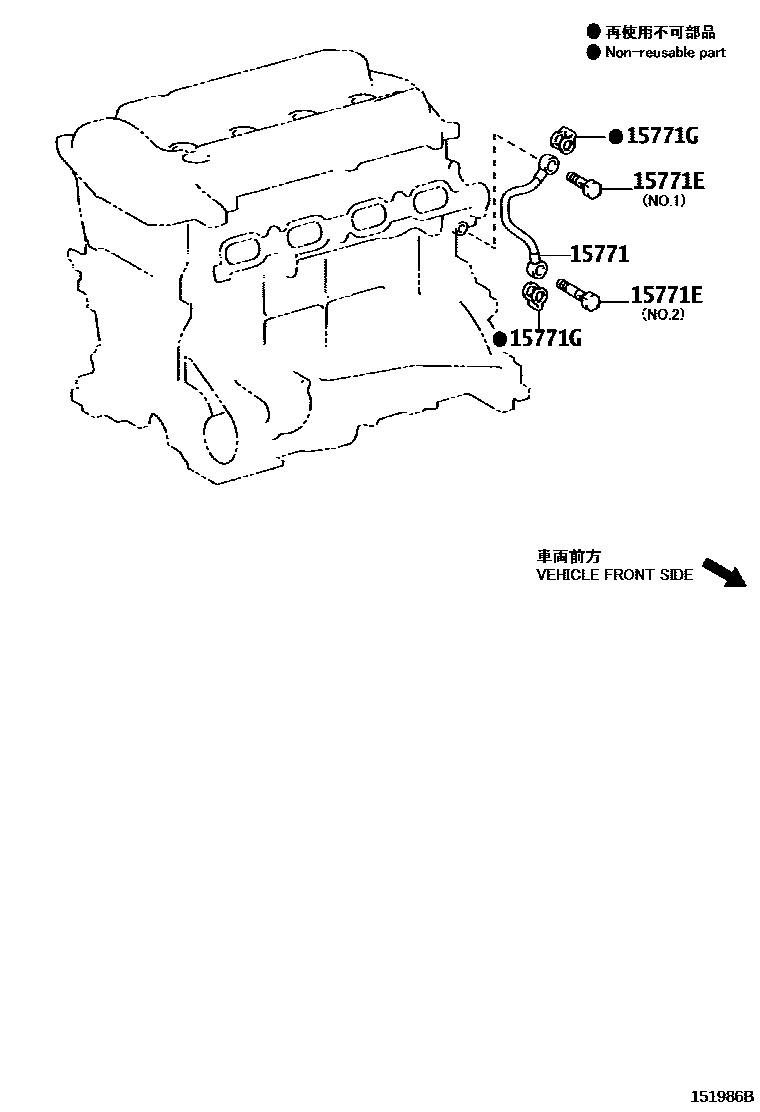

Parts diagram

15771PIPE, OIL, NO.1

main15771-21010i201503

15771EBOLT, UNION(FOR OIL PIPE)

main90401-12009i201503

main90401-12037i201208-201503

15771GGASKET

main90430-12037×2i201208-201503

3 parts on this diagram · 1 diagram in section
