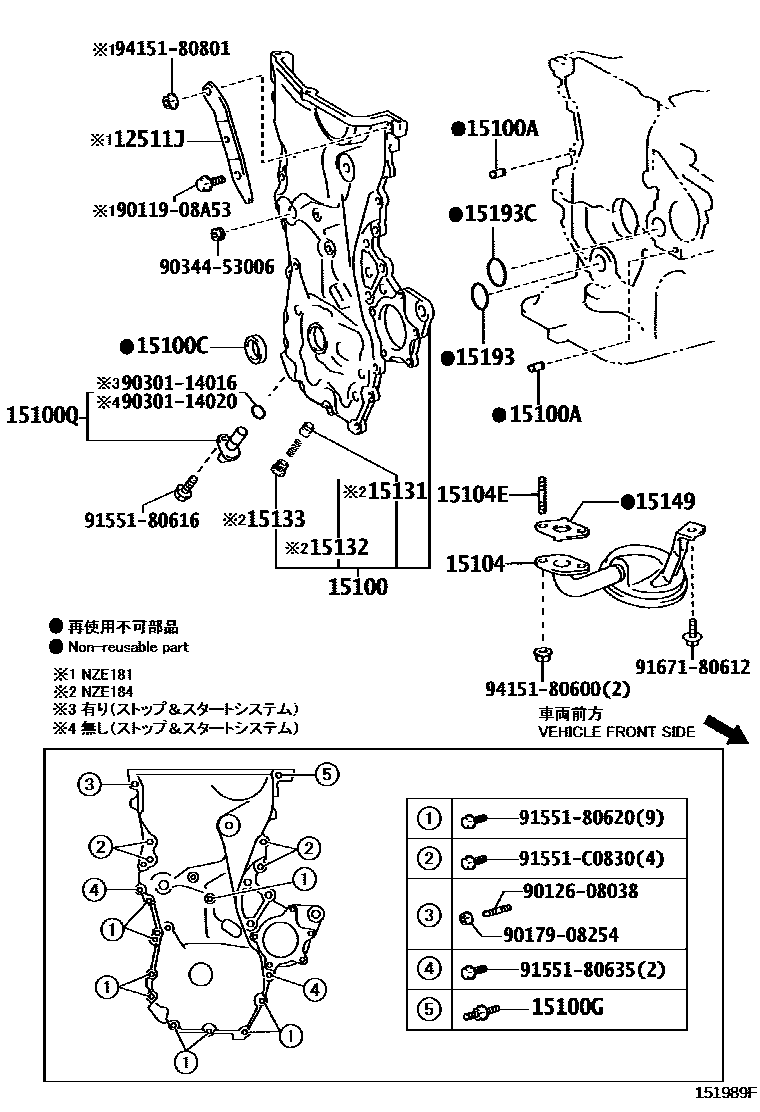

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

12511JBRACKET, ALTERNATOR

main12511-21010i1NZFE..NZE181201503

15100PUMP ASSY, OIL

main15100-21062i1NZFE..NZE184201503

main15100-21080i1NZFE..NZE181201208-201503

main15100-37020i2ZRFAE..ZRE186201208-201309

main15100-37021i2ZRFAE..ZRE186201503

main15100-37040i2ZRFXE..ZWE186201604

main15100-47050i8NRFTS..NRE185201503

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE..NZE18#201208-201503

15100CSEAL(FOR OIL PUMP)

main90311-25032i1NZFE..NZE18#201208-201310

main90311-25033i1NZFE..NZE18#201503

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NZE18#201208-201503

15100QSENSOR, CRANK POSITION

main90919-05081i1NZFE..NZE18#201208-201305

main90919-05087i1NZFE..NZE18#201503

main90919-05083i1NZFE..NZE181201208-201503

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZFE..NZE18#201503

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE..NZE18#201208-201503

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZRFXE..ZWE186201604

main15131-21020i1NZFE..NZE184201503

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21060i1NZFE..NZE184201208-201503

main15132-46060i2ZRFXE..ZWE186201604

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NZE184201503

main15133-28020i2ZRFXE..ZWE186201604

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NZE18#201208-201503

15193GASKET, OIL PUMP

main12151-21010i1NZFE..NZE18#201208-201503

15193CGASKET, OIL PUMP NO.2

main11497-21010i1NZFE..NZE18#201208-201503

9011908A53

main90119-08A53

9012608038

main90126-08038

9017908254

main90179-08254

9030114016

main90301-14016

9030114020

main90301-14020

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

9415180801

main94151-80801

27 parts on this diagram · 4 diagrams in section
