ENGINE OVERHAUL GASKET KIT

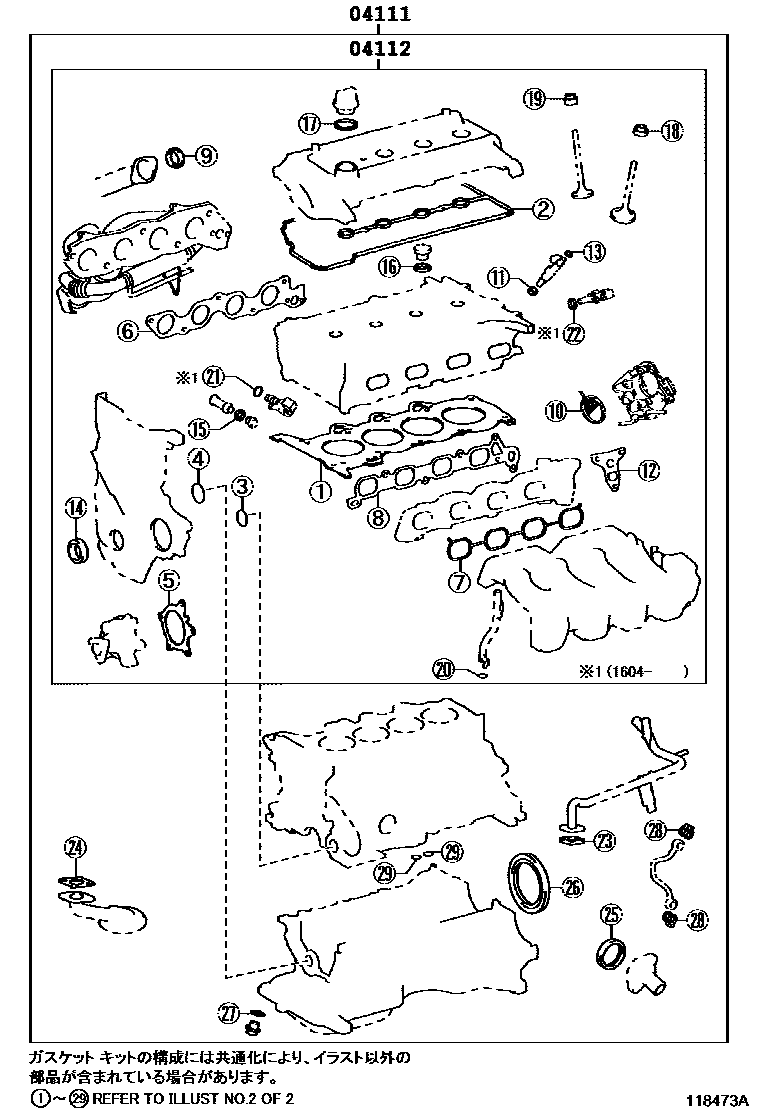

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21247i201208-201311

main04111-21248i201503-201604

main04111-21249i201604

main04111-37315i201604

main04111-37402i201208-201502

main04111-37403i201502-201503

main04111-47270i201503-201701

main04111-47271i201701-201711

main04111-47272i201711

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21245i201208-201311

main04112-21246i201311-201503

main04112-21247i201604

main04112-37223i201208-201502

main04112-37224i201503

main04112-37253i201604

main04112-47180i201503-201701

main04112-47181i201701-201711

main04112-47182i201711

2 parts on this diagram · 7 diagrams in section
