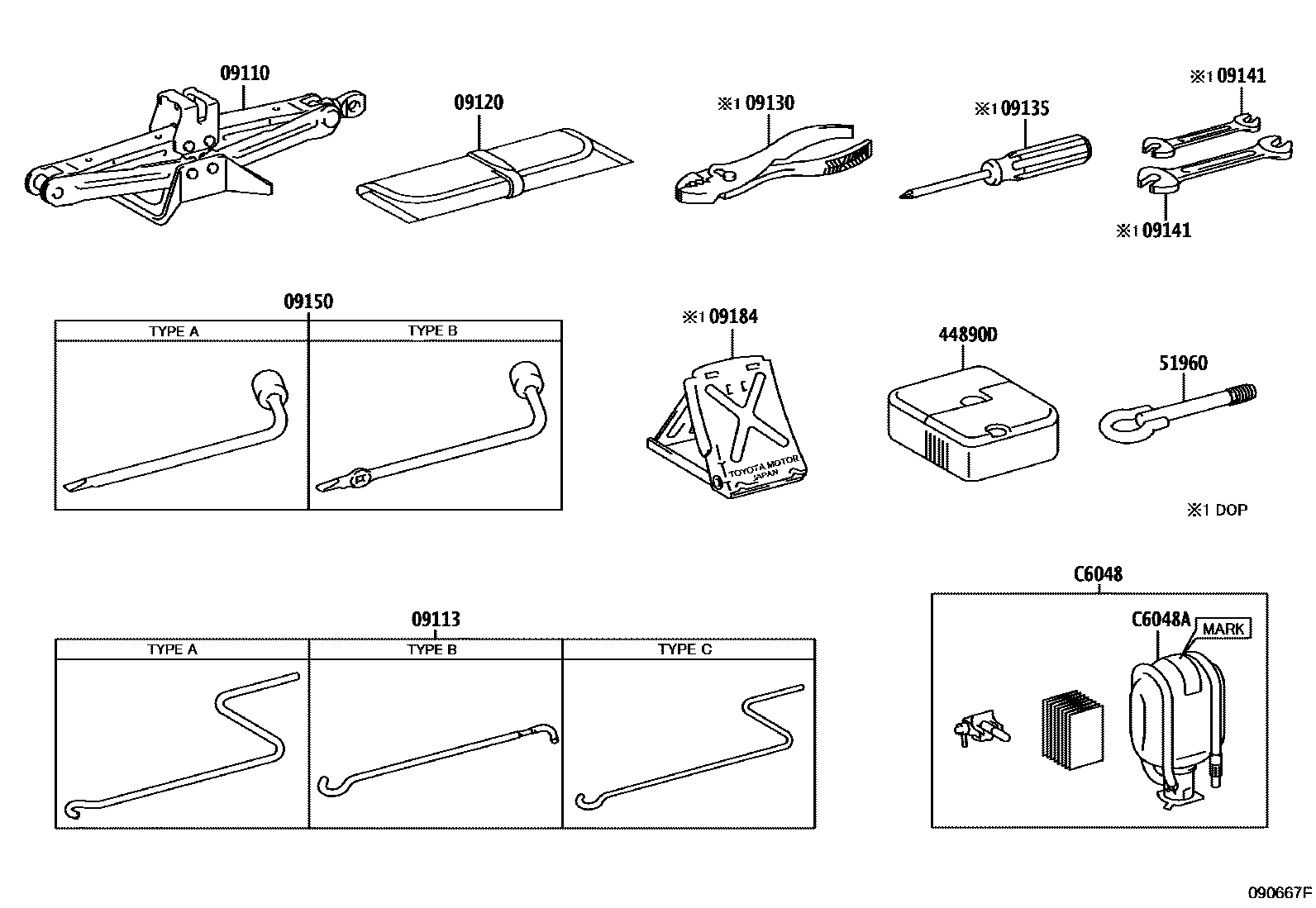

STANDARD TOOL

09110JACK ASSY

main09111-30190iNZE18#,ZRE186201208-201805

09113HANDLE, JACK

main09113-20050iNZE18#,ZRE186201208-201412

main09113-30050iNZE18#,ZRE186201412-201503

09120BAG, TOOL

main09120-10040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iNZE18#,ZRE186201208-201303

main09150-40010iNZE18#,ZRE186201304-201805

09184STOPPER, WHEEL

main09184-00010

44890DCOMPRESSOR ASSY, AIR

main44890-52021iNZE18#,ZRE186201208-201503

sub44890-52022

51960HOOK ASSY, FRONT

main51960-12090iNZE18#,ZRE186201208-201507

sub51960-12100

main51960-12100iNRE185,NZE18#,ZRE186,ZWE186201507

C6048REPAIR SET, TIRE

main42683-47021iNZE18#,ZRE186201208-201408

main42683-47021iNZE18#,ZRE186201208-201408

main42683-52021iNZE18#,ZRE186201408-201503

main42683-52021iNZE18#,ZRE186201408-201503

main42683-52021iNRE185,NZE18#,ZRE186,ZWE186201503

C6048ASEALANT, REPAIR TIRE

mainC604847051iNZE18#,ZRE186201208-201408

mainC604852021iNZE18#,ZRE186201408-201805

12 parts on this diagram · 1 diagram in section
