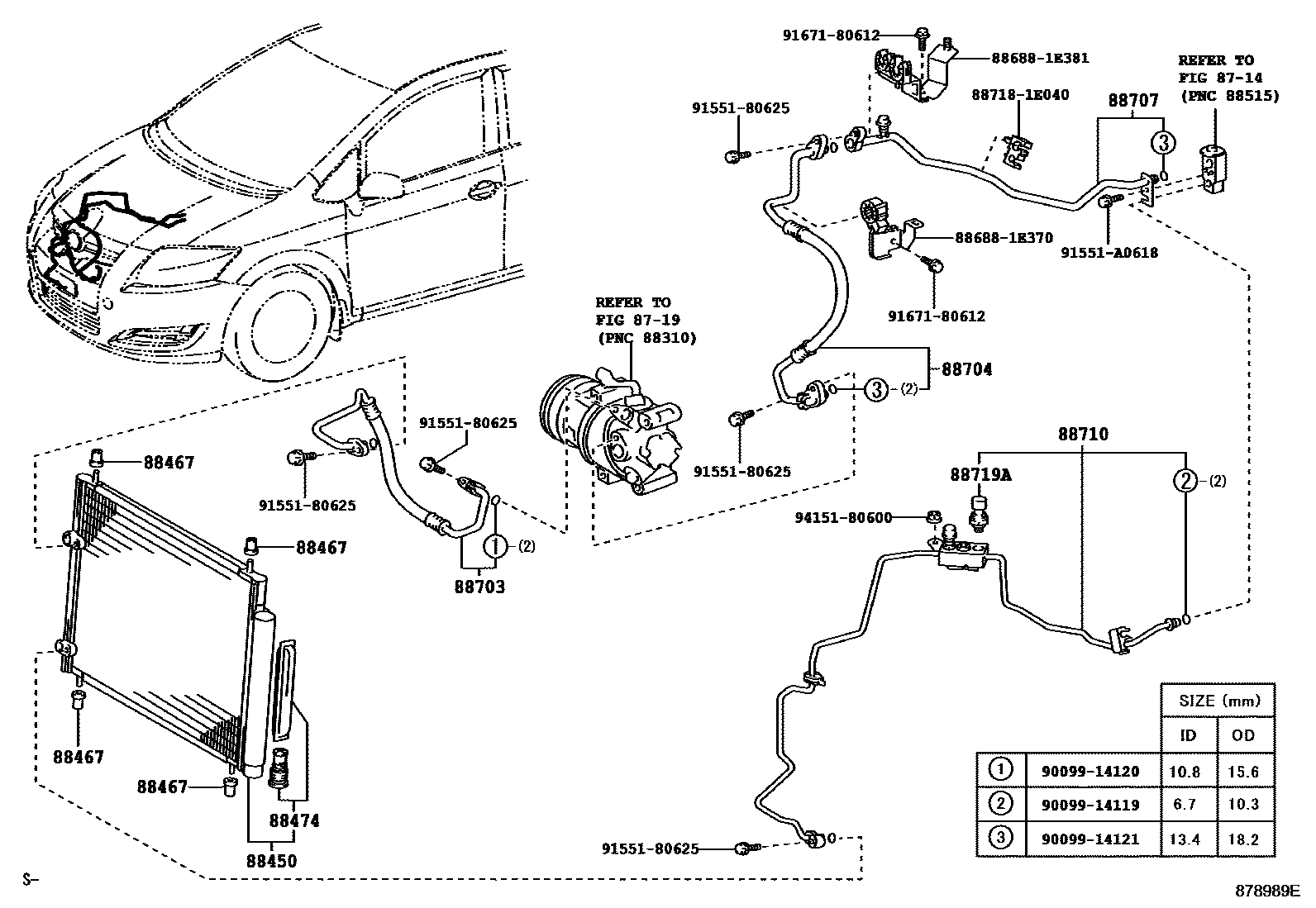

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88450CONDENSER ASSY, W/RECEIVER

main88450-12280iNZE15#,ZRE15#200812-200910

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iNZE15#,ZRE15#200610-200812

88474DRYER, COOLER

main88474-12030iNZE15#,ZRE15#200812-200910

88703HOSE SUB-ASSY, DISCHARGE

main88703-12830iZRE15#200610-200812

main88703-12870iNZE15#200610-200812

88704HOSE SUB-ASSY, SUCTION

main88704-1A180iZRE15#200610-200612

main88704-1A181iZRE15#200701-200812

main88704-1A220iNZE15#200610-200812

88707PIPE SUB-ASSY, SUCTION

main88707-12250iNZE15#,ZRE15#200812-200910

88710TUBE ASSY, AIR CONDITIONER

main88710-12790iNZE15#,ZRE15#200610-200812

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNZE15#,ZRE15#200610-200812

886881E370BRACKET, COOLER DIAPHRAGM

main88688-1E370

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
