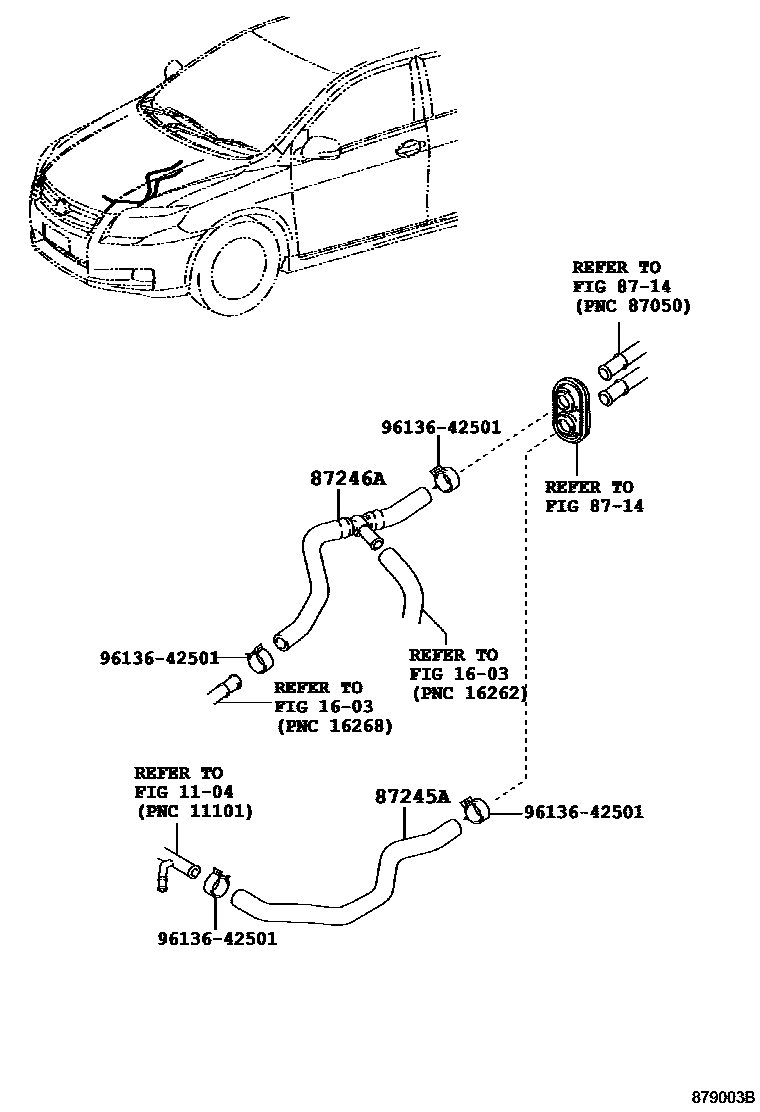

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-12A00iZRE15#200610-201204

main87245-12B80iNZE15#200610-201208

main87245-12G10iZRE15#201205-201208

87246AHOSE, HEATER WATER, OUTLET A

main87209-12490iNZE15#200610-201207

main87209-12502iZRE15#200610-201207

main87245-12A10iZRE152..6F200910-201208

9613642501

main96136-42501

6 parts on this diagram · 3 diagrams in section
