HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����� ��������� 0002 1��� ��������� 0003 1������ 0004 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

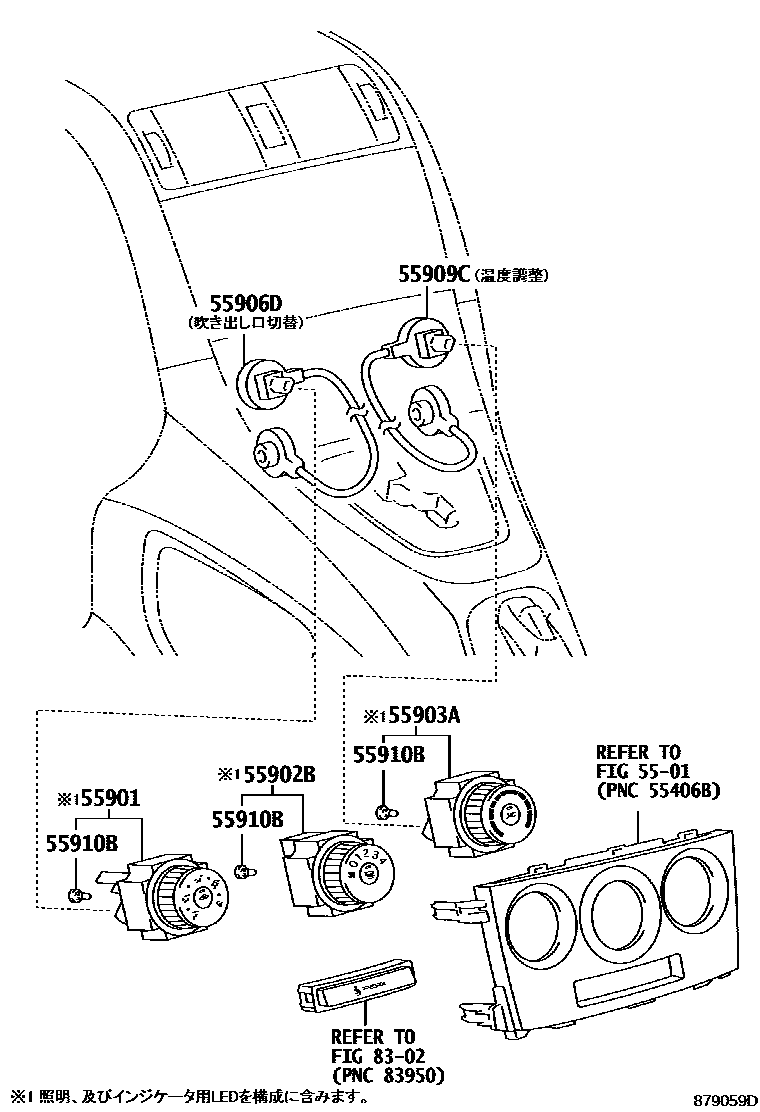

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12140iNZE15#200910

55902BCONTROL SUB-ASSY, HEATER

main55902-12060iNZE15#200910

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12010iNZE15#200910

main55903-12020supersedes 55903-12010iNZE15#200812-200910

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iNZE15#200910-201208

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iNZE15#200910-201208

55910BBULB, HEATER CONTROL

main90010-01122×3iNZE15#200910

8302INDICATOR

→ Go to FIG 83-02

8 parts on this diagram · 4 diagrams in section
