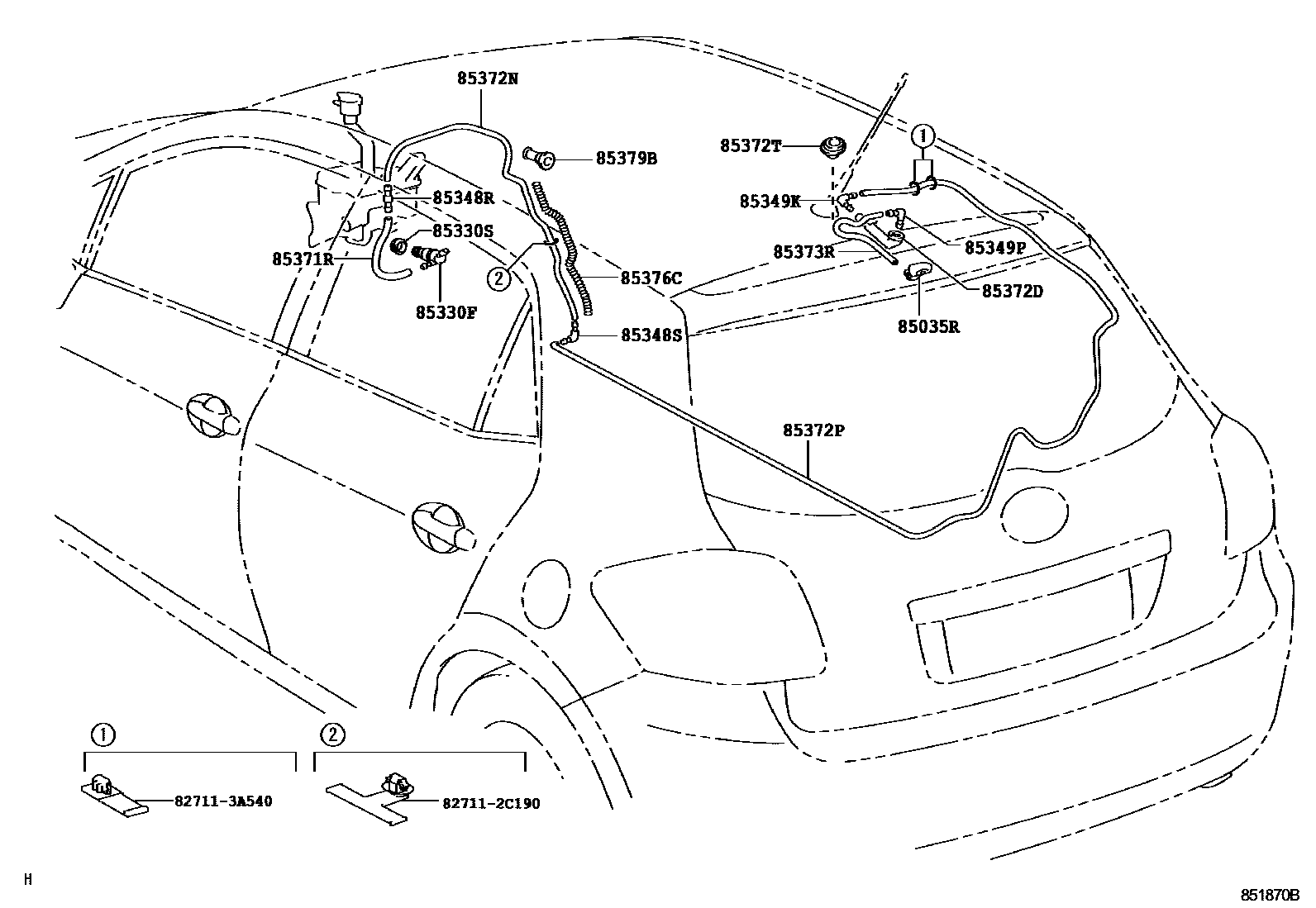

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12070iNZE15#,ZRE15#200610-200812

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNZE15#,ZRE15#200610-200812

85330SBUSH, REAR WASHER JAR

main85336-60300iNZE15#,ZRE15#200610-200812

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iNZE15#,ZRE15#200610-200812

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNZE15#,ZRE15#200610-200812

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNZE15#,ZRE15#200610-200812

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iNZE15#,ZRE15#200610-200812

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNZE15#,ZRE15#200610-200812

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNZE15#,ZRE15#200610-200611

main85373-12030iNZE15#,ZRE15#200611-200812

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNZE15#,ZRE15#200610-200812

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33595iNZE15#,ZRE15#200610-200812

85372TGROMMET, WASHER

main85372-20020iNZE15#,ZRE15#200610-200812

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNZE15#,ZRE15#200610-200812

85376CSPRING, WASHER HOSE

main85389-12850iNZE15#,ZRE15#200610-200812

85379BGROMMET, WASHER, A

main85379-12850iNZE15#,ZRE15#200610-200812

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

17 parts on this diagram · 1 diagram in section
