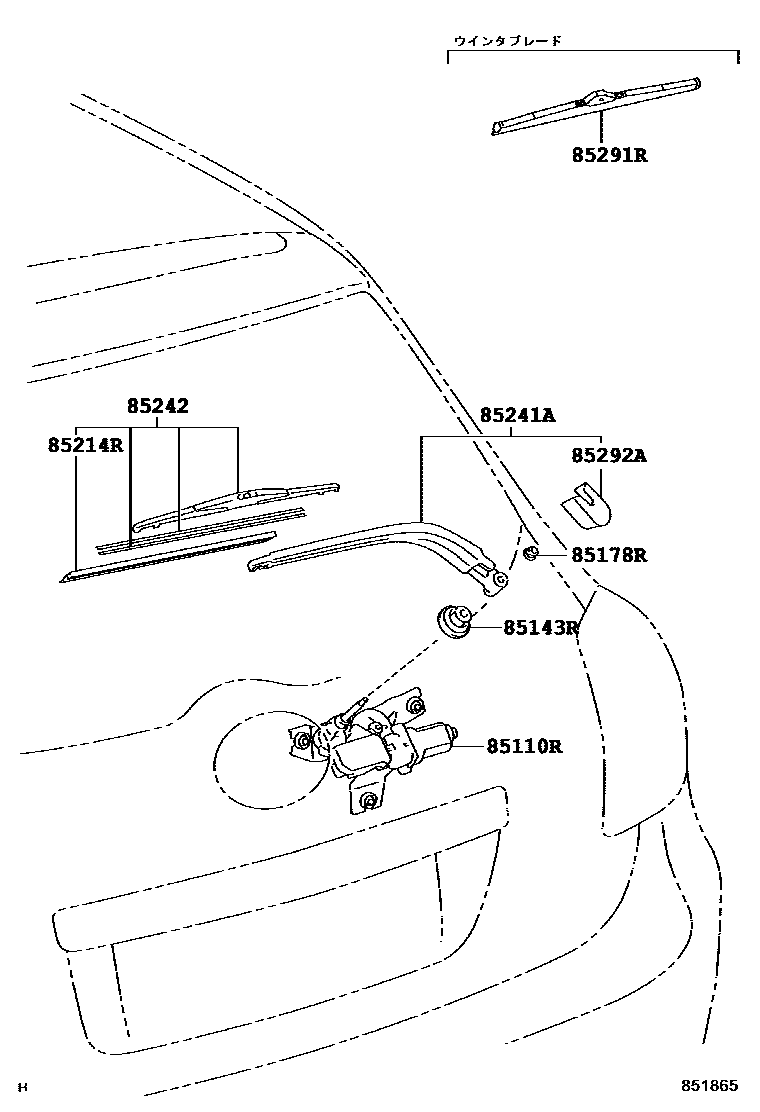

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12880iNZE15#,ZRE15#200610-200910

85143RGROMMET, REAR WIPER MOTOR

main85143-12790iNZE15#,ZRE15#200610-200910

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNZE15#,ZRE15#200610-200910

85214RRUBBER, REAR WIPER

main85214-12320iNZE15#,ZRE15#200610-200910

85241AARM, REAR WIPER

main85241-12100iNZE15#,ZRE15#200610-200910

85242BLADE, RR WIPER

main85242-12100iNZE15#,ZRE15#200610-200910

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85244-13010iNZE15#,ZRE15#200610-200910

8 parts on this diagram · 1 diagram in section
