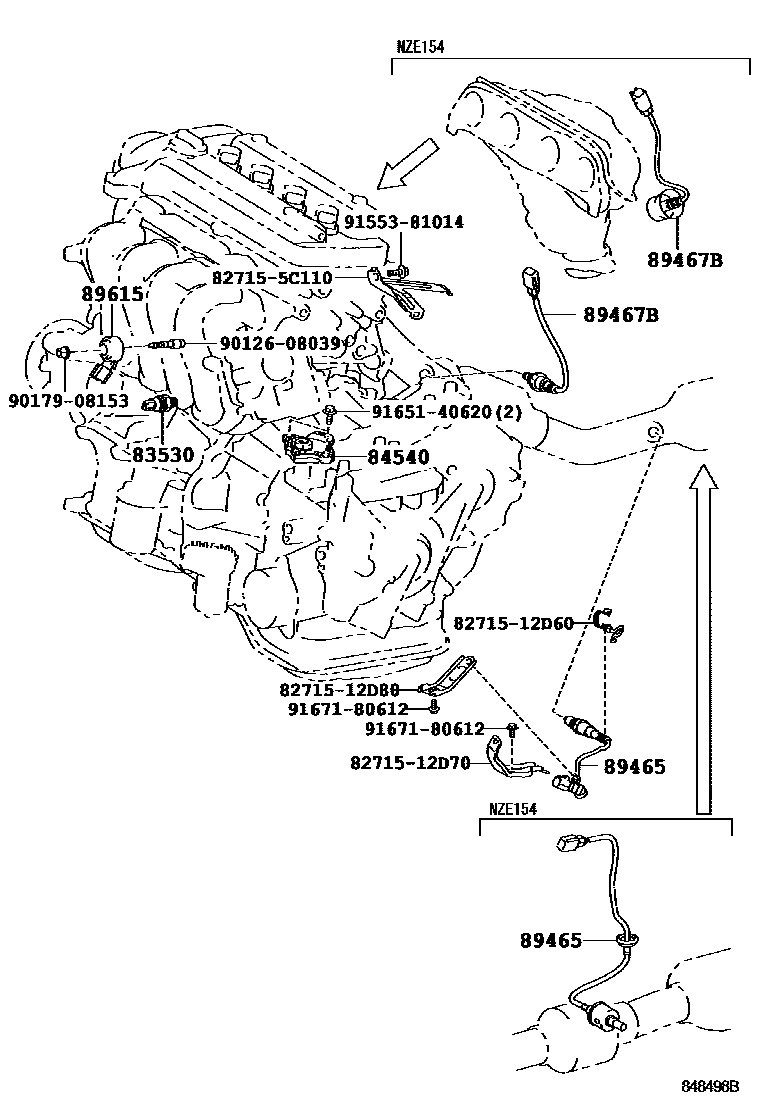

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1�������� �������� 0005 1��� 0006 1������������ 0007 1������� 0008 1������� 0009 1���,�-�,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNZE15#,ZRE15#200610-200910

main83530-28020iNZE15#,ZRE15#200610-200910

main83530-60020iNZE15#,ZRE15#200610-200910

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNZE15#,ZRE15#200610-201208

89465SENSOR, OXYGEN

main89465-12790iNZE151200610-201208

main89465-12820iNZE154200610-201208

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE152200610-200910

main89467-12040iNZE154200610-200910

main89467-12050iZRE154200610-200702

sub89467-12110

main89467-12110iZRE154200703-200910

main89467-12180iNZE151200907-200910

main89467-12190iNZE154200910

main89467-52010iNZE151200610-200906

sub89467-12180

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE15#200812-200910

main89615-20090iNZE15#200610-200910

8271512D60BRACKET,WIRING HARNESS CLAMP

main82715-12D60

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

827155C110BRACKET,WIRING HARNESS CLAMP

main82715-5C110

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

9167180612

main91671-80612

14 parts on this diagram · 9 diagrams in section
