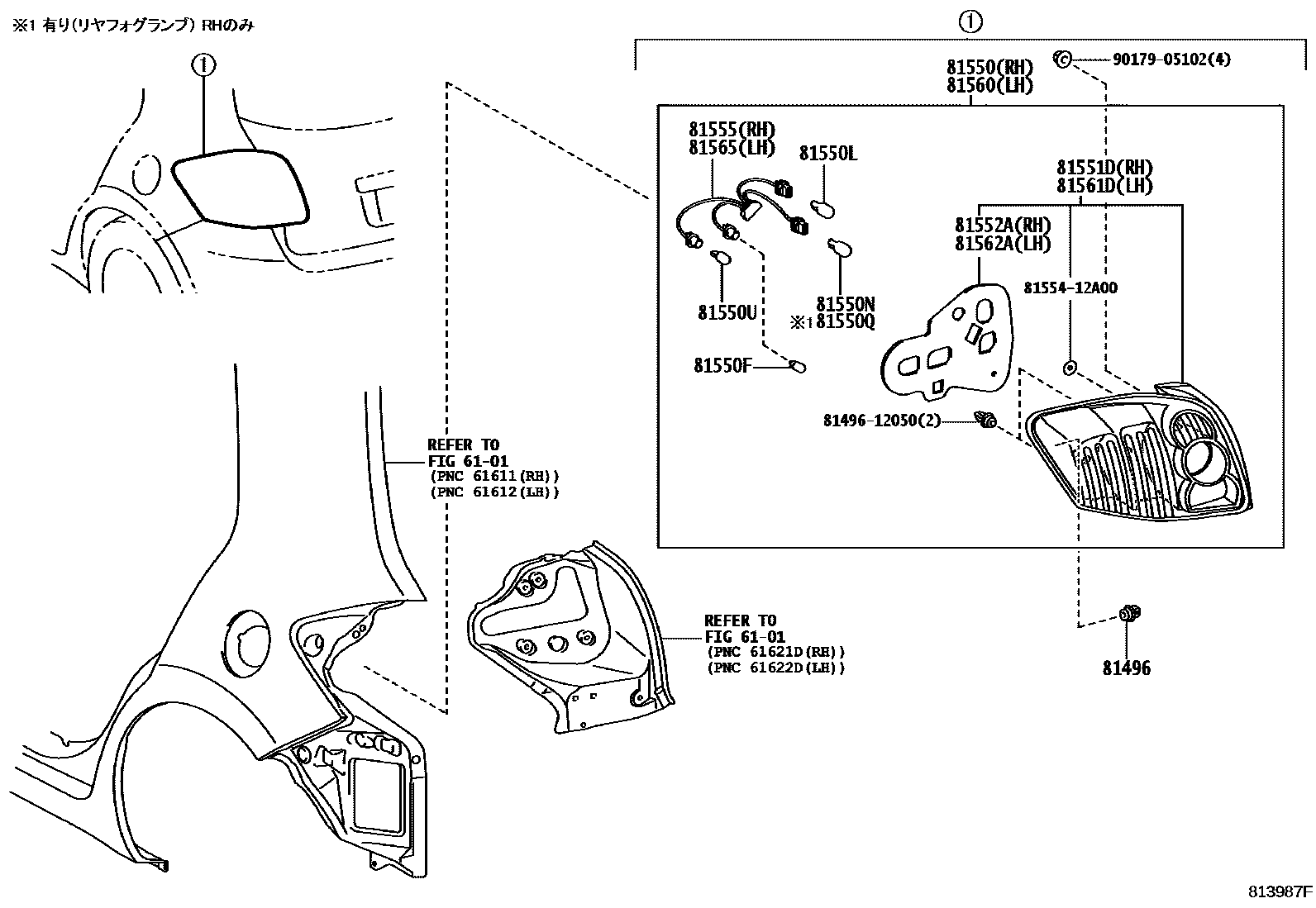

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iNZE15#,ZRE15#200610-200910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-12A00iNZE15#,ZRE15#200610-200910

main81550-12B70iNZE15#,ZRE15#200910

sub81551-12B70

sub81555-12B70

sub90981-11059

sub90981-15021

sub99132-12050

81550FBULB, TAILLAMP

main90981-11051iNZE15#,ZRE15#200610-200910

sub99132-12050

main99132-12050iNZE15#,ZRE15#200910

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNZE15#,ZRE15#200610-200910

main90981-15021iNZE15#,ZRE15#200910

81550NBULB, BACK UP LAMP

main90981-11059iNZE15#,ZRE15#200910

main90981-13043iNZE15#,ZRE15#200610-200812

main90981-13043iNZE15#,ZRE15#200812-200910

81550QBULB, REAR FOG LAMP, NO.1

81550UBULB, STOP LAMP

main90981-11059iNZE15#,ZRE15#200610-200910

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12A00iNZE15#,ZRE15#200610-200910

main81551-12B70iNZE15#,ZRE15#200910

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-12A00iNZE15#,ZRE15#200610-200910

main81552-12B70iNZE15#,ZRE15#200910

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12B70iNZE15#,ZRE15#200910

main81556-12A00iNZE15#,ZRE15#200610-200910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-12B70iNZE15#,ZRE15#200910

sub81561-12B70

sub81565-12B70

sub90981-11059

sub90981-15021

sub99132-12050

main81560-1E010iNZE15#,ZRE15#200610-200910

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12B70iNZE15#,ZRE15#200910

main81561-1E010iNZE15#,ZRE15#200610-200910

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-12A00iNZE15#,ZRE15#200610-200910

main81562-12B70iNZE15#,ZRE15#200910

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-12B70iNZE15#,ZRE15#200910

main81566-1E010iNZE15#,ZRE15#200610-200910

8149612050GUIDE, REAR COMBINATION LAMP

main81496-12050

8155412A00GASKET, REAR COMBINATION LAMP BODY, RH

main81554-12A00

9017905102

main90179-05102

18 parts on this diagram · 2 diagrams in section
