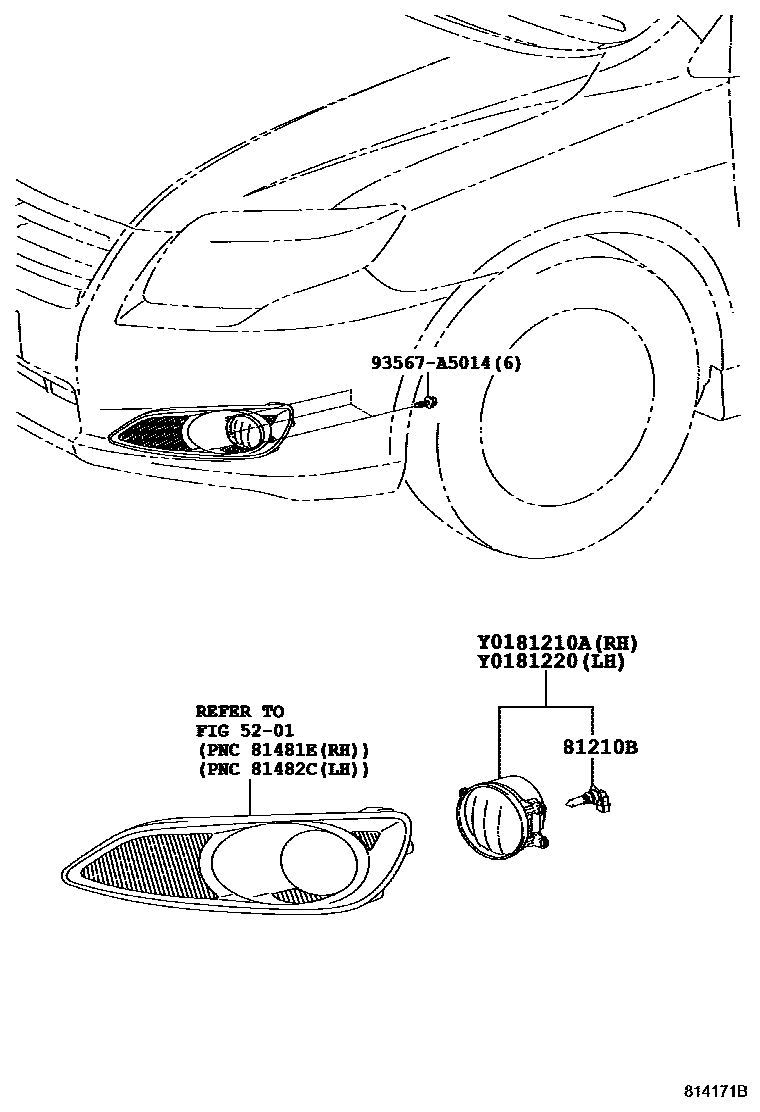

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D040iNZE15#,ZRE15#200610-200612

main81210-0D041iNZE15#; NZE15#,ZRE15#; ZRE15#200812-200910

main81210-0W050iZRE152..6F200910-201102

81210BBULB, FOG LAMP

main90981-13075×2iNZE15#,ZRE15#200610-200812

main90981-13081×2iNZE15#; NZE15#,ZRE15#; ZRE15#200812-200910

81220LAMP ASSY, FOG, LH

main81220-0D040iNZE15#,ZRE15#200610-200611

main81220-0D041iNZE15#,ZRE15#200612-200812

main81220-0W040iZRE152..6F200910-201102

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
