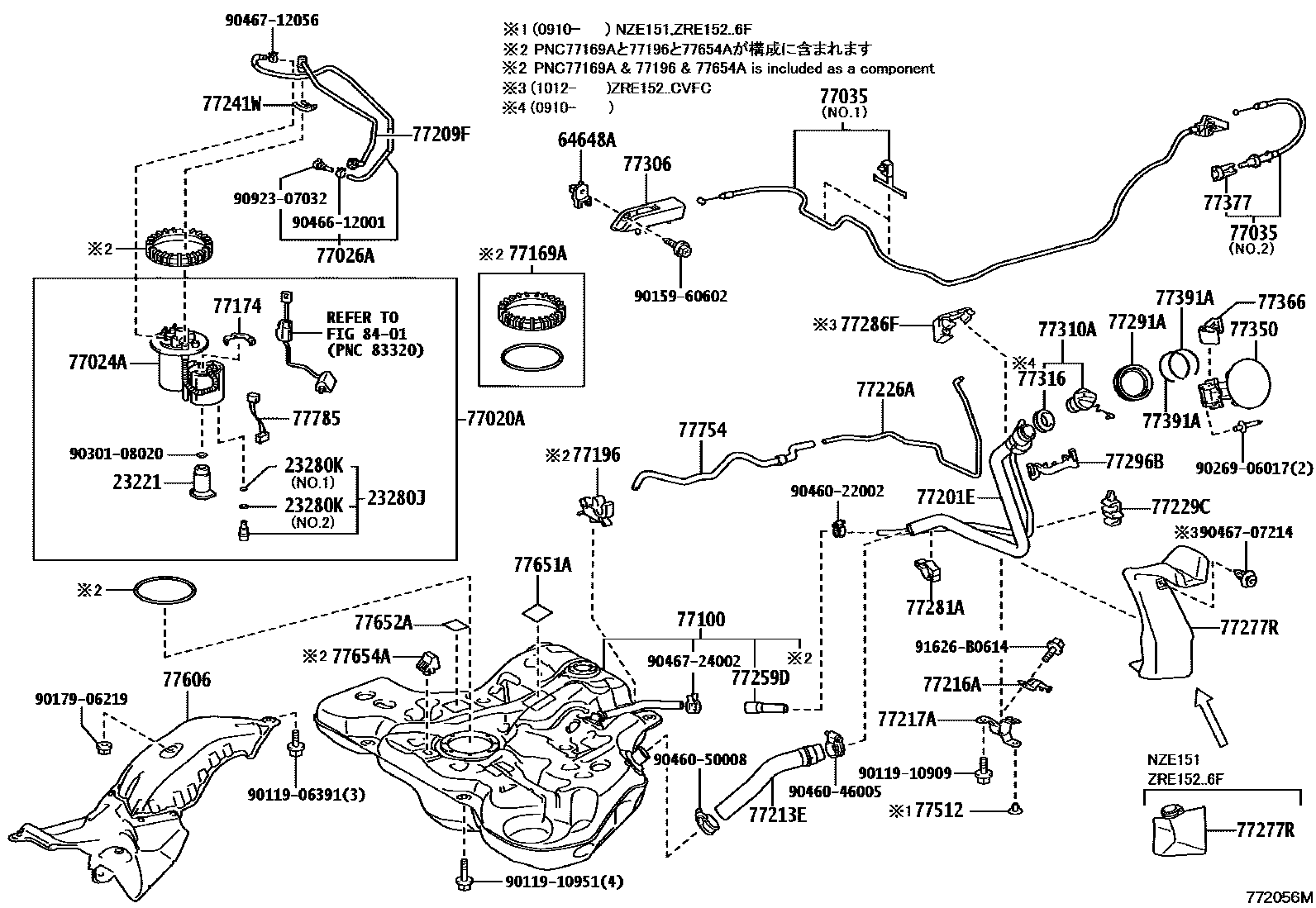

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� �����

23221PUMP, FUEL

main23220-21180i1NZFE..NZE154200610-200812

main23220-22120i1NZFE..NZE151200910-201208

main23220-37060i2ZRFE..ZRE152200610-200708

main23220-37070i2ZRFE..ZRE154200812-200910

main23220-37071i2ZRFAE..ZRE154201204-201208

main23220-37120i2ZRFAE..ZRE152200910-201203

main23220-37121i2ZRFAE..ZRE152201204-201208

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFE..NZE151200610-200707

main23280-21020i1NZFE..NZE151200812-200910

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFE,2ZRFAE..NZE15#,ZRE15#200910-201208

main90301-15024i1NZFE,2ZRFE..NZE15#,ZRE15#200812-200910

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNZE15#,ZRE15#200610-200812

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12590iNZE154200610-200806

main77020-12600iZRE154200812-200910

main77020-12610iNZE151200910-201208

main77020-12620iZRE152200910-201208

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12050iNZE151,ZRE152200812-200910

main77024-12060iNZE154,ZRE154200610-200711

main77024-12061iNZE154,ZRE154200712-200806

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-12030iNZE151,ZRE152200910

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iNZE15#,ZRE15#200910

main77035-12490iNZE15#,ZRE15#200812-200910

77100TANK ASSY, FUEL

main77001-12A30iNZE154,ZRE154200610-200810

main77001-12A31iNZE154,ZRE154200810-200812

main77001-12B70iNZE151,ZRE152200910-201208

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iNZE154,ZRE154200910-201208

main77169-52040iNZE151,ZRE152200812-200910

77174SUPPORT, FUEL SUCTION, NO.1

main77174-12020iNZE15#,ZRE15#200610-200812

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iNZE151,ZRE152200610-200812

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12640iNZE151,ZRE152200610-200812

main77201-12660iNZE154,ZRE154200812-200910

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12210iNZE151,ZRE152200910-201208

main77209-12220iNZE154,ZRE154200610-200806

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12270iNZE151,ZRE152200610-200812

main77213-12280iNZE154,ZRE154200910-201208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iNZE151,ZRE152200610-200812

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iNZE151,ZRE152200812-200910

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-12030iNZE151,ZRE152200812-200910

main77226-12040iNZE154,ZRE154200910

77229CCLAMP, BREATHER TUBE

main77229-12070iNZE15#,ZRE15#200610-200812

77241WCLIP, TUBE JOINT

main77241-33011iNZE15#,ZRE15#201003-201208

main77241-60320iNZE154,ZRE154200610-200806

77259DHOSE, FUEL, NO.1

main77259-76010iNZE151,ZRE152200610-200812

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iNZE151;ZRE152..6F200910

main77277-12200iNZE154,ZRE15#..CVFC200910-201012

main77277-12201iNZE154,ZRE15#..CVFC201012

77281ACLAMP, FUEL FILLER PIPE

main77281-12100iNZE151,ZRE152200610-200812

main77281-12170iNZE154,ZRE154201012

77286FCLAMP, FUEL TUBE, NO.2

main77286-12130iZRE152..CVFC201012

main77286-52081iNZE154,ZRE154200812-200910

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12190iNZE15#,ZRE15#200812-200910

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52020iNZE154,ZRE154200610-200812

main77296-52030iNZE151,ZRE152200610-200812

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iNZE15#,ZRE15#200812-200910

main77306-52050iNZE15#,ZRE15#201010

77310ACAP ASSY, FUEL TANK

main77300-52030iNZE15#,ZRE15#200812-200910

77316GASKET, FUEL TANK CAP

main77316-52040iNZE15#,ZRE15#200910

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iNZE15#,ZRE15#200610-200812

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iNZE15#,ZRE15#200610-200812

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iNZE15#,ZRE15#200910

77391ARING, FUEL INLET BOX

main77391-12020×2iNZE15#,ZRE15#200610-200812

77512BRACKET, FUEL TANK, REAR

main77512-35140iNZE151;ZRE152..6F200910

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12130iNZE151,ZRE152200910

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNZE151,ZRE152200610-200812

77652ACUSHION, FUEL TANK, NO.2

main77652-45020×3iNZE151,ZRE152200610-200812

77654ACUSHION, FUEL TANK, NO.4

main77654-12090iNZE151,ZRE152200610-200812

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-12160iNZE151,ZRE152200812-200910

main77754-12180iNZE154,ZRE154200910-201208

77785HARNESS, FUEL PUMP

main77785-12020iNZE15#,ZRE15#200610-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906391

main90119-06391

9011910909

main90119-10909

9011910951

main90119-10951

9015960602

main90159-60602

9017906219

main90179-06219

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046612001

main90466-12001

9046707214

main90467-07214

9046712056

main90467-12056

9046724002

main90467-24002

9092307032

main90923-07032

91626B0614

main91626-B0614

57 parts on this diagram · 3 diagrams in section
