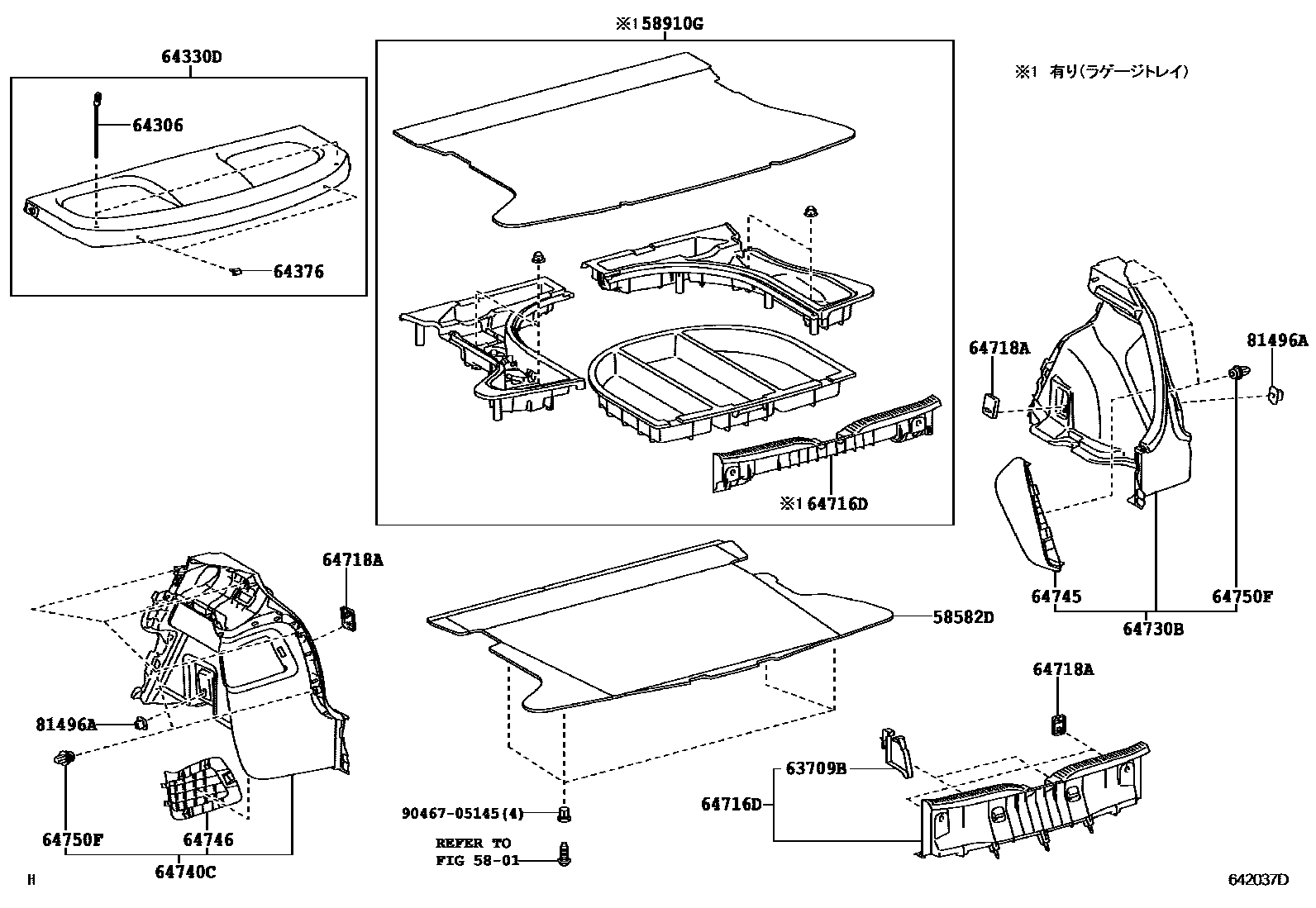

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

5801

58582DMAT, REAR FLOOR, REAR

main58570-12440-C1iNZE154,ZRE15#200610-201208

BLACK,TRIM1#,4#

main58570-12450-C1iZRE152..6F200610-201208

BLACK,TRIM1#,4#

main58570-12450-C1iNZE151,ZRE152..CVFC200910-201208

BLACK,TRIM1#

58910GBOX ASSY

63709BBAND SUB-ASSY, ROOM RACK

main63709-12051-C0iZRE152..6F200910-201208

main63709-12051-C0iNZE151,ZRE152..CVFC200910-201208

BLACK,TRIM1#

main63709-12051-C0iNZE151,ZRE152..CVFC200610-201208

BLACK,TRIM1#,4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12080iNZE15#,ZRE15#200610-200810

main64306-12081iNZE15#,ZRE15#200810-200812

main64306-12081iNZE15#,ZRE15#200812-200910

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12A00-C1iNZE15#,ZRE15#200610-200809

BLACK,TRIM1#,4#

sub64330-12A01

main64330-12A00-C1iNZE15#,ZRE15#200610-200809

sub64330-12A01

main64330-12A01-C1iNZE15#,ZRE15#200810-201112

BLACK,TRIM1#,4#

sub64330-12A02

main64330-12A01-C1iNZE15#,ZRE15#200810-200812

sub64330-12A02

main64330-12A01-C1iZRE152..6F200910-201112

BLACK,TRIM1#

sub64330-12A02

main64330-12A02-C1iNZE15#,ZRE15#..CVFC201201-201208

BLACK,TRIM1#,4#

main64330-12A02-C1iZRE152..6F201201-201208

BLACK,TRIM1#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020iNZE15#200610-200812

main64376-12020iNZE15#,ZRE15#200812-200910

64716DCOVER, DECK TRIM, REAR

main64716-12310-B0iZRE152..6F200910-201208

DK.GRAY,TRIM1#

main64716-12310-B0iNZE151200610-201208

DK.GRAY,TRIM1#,4#

main64716-12310-B0iZRE152..6F200910-201208

main64716-12320-B0iNZE154,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

main64716-12320-B0iNZE151200812-200910

main64716-12320-B0iNZE154,ZRE15#200610-200812

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-12020-B0iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12340-C0iNZE15#,ZRE15#200610-201208

BLACK,TRIM1#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-12340-C0iNZE15#,ZRE15#200610-201208

BLACK,TRIM1#,4#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12160-B0iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12140-B0iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iNZE15#,ZRE15#200610-200910

81496AGUIDE, REAR COMBINATION LAMP

main81496-12030iNZE15#,ZRE15#200610-200910

9046705145

main90467-05145

16 parts on this diagram · 2 diagrams in section
