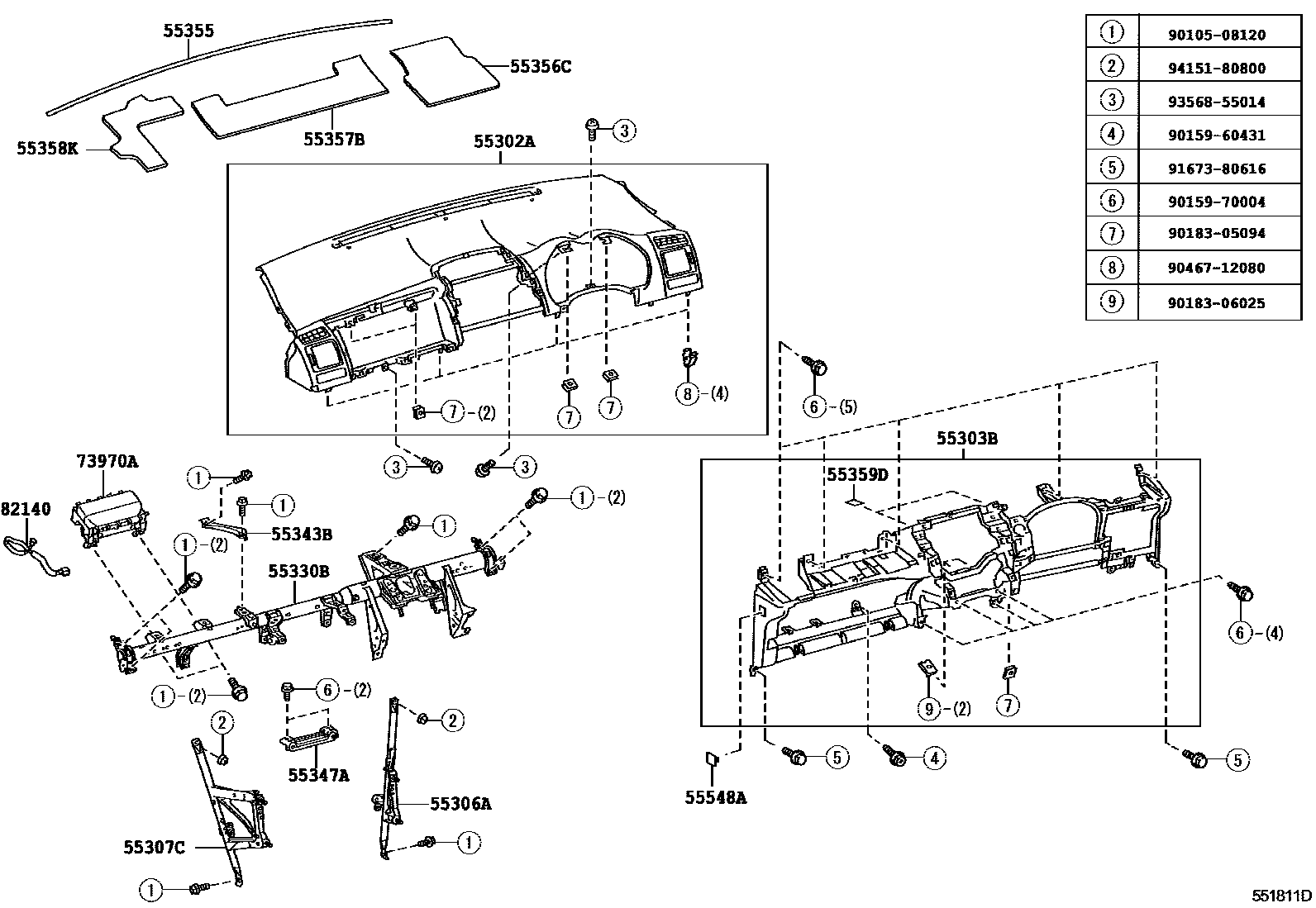

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1��������� 0006 1����� 0007 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12080-B1iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#

main55302-12080-B2iNZE15#,ZRE15#..CVFC201112-201208

DK.GRAY/GREGE,TRIM4#

main55302-12080-E1iNZE15#,ZRE15#200610-200804

GREGE,TRIM4#

main55302-12160-B1iNZE15#,ZRE15#200804-201110

DK.GRAY,TRIM1#

main55302-12160-B2iNZE15#,ZRE15#..CVFC200910-201110

DK.GRAY/GREGE,TRIM4#

main55302-12160-E1iNZE15#,ZRE15#200804-200910

GREGE,TRIM4#

main55302-12161-B1iNZE15#,ZRE15#201111-201112

DK.GRAY,TRIM1#

main55302-12161-B2iNZE15#,ZRE15#..CVFC201111-201112

DK.GRAY/GREGE,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12330-B0iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

main55303-12390-B0iNZE15#,ZRE15#200804-201110

DK.GRAY,TRIM1#,4#

main55303-12391-B0iNZE15#,ZRE15#..CVFC201111-201112

DK.GRAY,TRIM1#,4#

main55303-12391-B0iZRE152..6F201111-201112

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55307-12310iNZE15#,ZRE15#200610-200706

main55307-12311iNZE15#,ZRE15#200706-200910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12300iNZE15#,ZRE15#200610-200706

main55307-12301iNZE15#,ZRE15#200706-200910

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12680iNZE15#,ZRE15#200610-201208

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iNZE15#,ZRE15#200610-200910

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55349-12120iNZE15#,ZRE15#200610-200706

main55349-12121iNZE15#,ZRE15#200706-200904

main55349-12170iNZE15#,ZRE15#200905-200910

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12130iNZE15#,ZRE15#200610-200910

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12090iNZE15#,ZRE15#200610-200910

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12080iNZE15#,ZRE15#200610-200910

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12070iNZE15#,ZRE15#200610-200910

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-12090iNZE15#,ZRE15#200610-201201

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12090-B0iNZE15#,ZRE15#200610-201208

DK.GRAY,TRIM1#,4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-12110iNZE15#,ZRE15#200610-200910

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iNZE15#,ZRE15#200610-200910

9010508120

main90105-08120

9015960431

main90159-60431

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

24 parts on this diagram · 7 diagrams in section
