HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

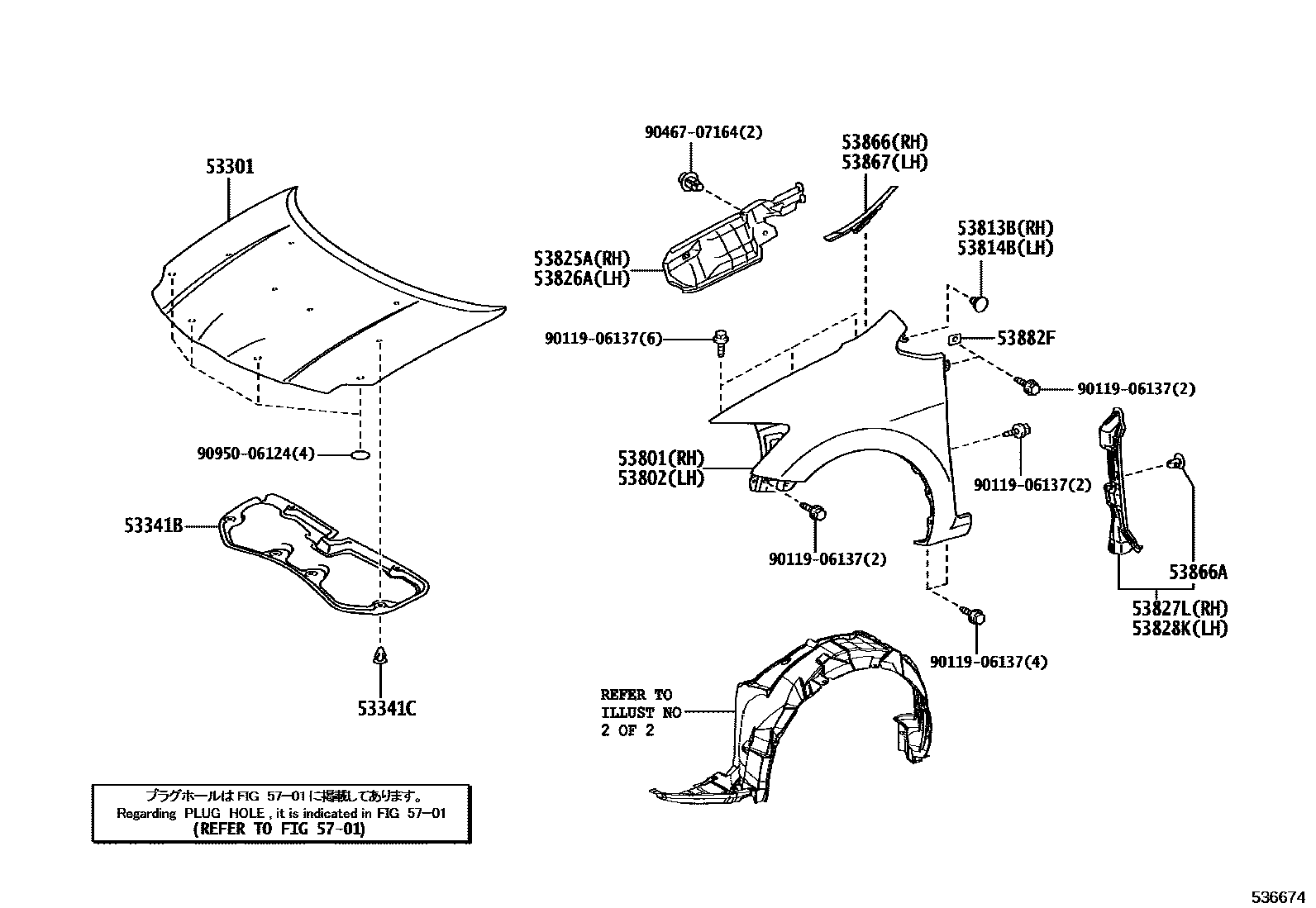

53301HOOD SUB-ASSY

main53301-12A10iNZE15#,ZRE15#200812-200910

main53301-12B00iNZE15#,ZRE15#200910-201208

53341BINSULATOR, HOOD

main53341-12240iZRE15#200610-200812

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZRE15#200910

main90467-W0003×6iZRE15#200812-200910

53801FENDER SUB-ASSY, FRONT RH

main53801-12A90supersedes 53801-12A80iNZE15#,ZRE15#..CVFC; ZRE152..6F200910-201208

main53801-12A10supersedes 53801-12A00iNZE15#,ZRE15#200812-200910

53802FENDER SUB-ASSY, FRONT LH

main53802-12A90supersedes 53802-12A80iNZE15#,ZRE15#..CVFC; ZRE152..6F200910-201208

main53802-12A10supersedes 53802-12A00iNZE15#,ZRE15#200610-200812

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iNZE15#,ZRE15#200610-200812

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iNZE15#,ZRE15#200910

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12040iNZE15#,ZRE15#200812-200910

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12020iNZE15#,ZRE15#200910

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12120supersedes 53827-12070iNZE15#,ZRE15#200903-200910

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12120supersedes 53828-12070iNZE15#,ZRE15#200903-200910

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12030iNZE15#,ZRE15#200910

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-06205-C0×2iNZE15#,ZRE15#200807-200812

BLACK

main90467-08136×2iNZE15#,ZRE15#200610-200806

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12040iNZE15#,ZRE15#200910

53882FSEAL, FRONT FENDER

main53882-16030×2iNZE15#,ZRE15#200610-200812

5701HOLE PLUG

→ Go to FIG 57-01

9011906137

main90119-06137

9046707164

main90467-07164

9095006124

main90950-06124

19 parts on this diagram · 4 diagrams in section
