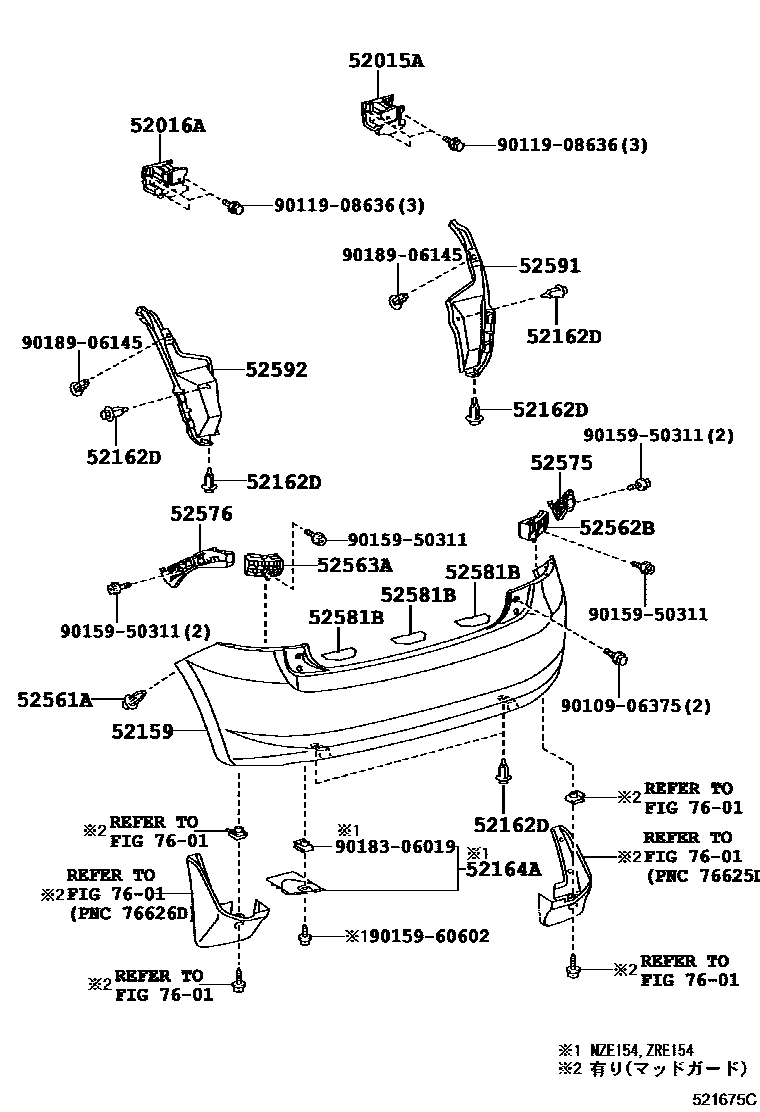

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12330iNZE15#,ZRE15#200812-200910

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12300iNZE15#,ZRE15#200610-200812

52159COVER, REAR BUMPER

main52159-12A20-A1iNZE15#,ZRE15#200812-200910

WHITE PEARL CS.,070

main52159-12A20-B0iNZE15#,ZRE15#200812-200910

SILVER ME.,1C0

main52159-12A20-B1iNZE15#,ZRE15#200812-200910

GRAY ME.,1G3

main52159-12A20-C0iNZE15#,ZRE15#200812-200910

BLACK MC.,209

main52159-12A20-D1iNZE15#,ZRE15#200610-200812

RED M.M.,3R3

main52159-12A20-J0iNZE15#,ZRE15#200610-200812

LT.BLUE M.M.,8S1

main52159-12A20-J1iNZE15#,ZRE15#200812-200910

DK.BLUE MC.,8S6

main52159-12A20-J2iNZE15#,ZRE15#200812-200910

DK.BLUE ME.,8T8

main52159-12A20-K0iNZE15#,ZRE15#200610-200812

PURPLE ME.,9AD

main52159-12B20-A1iNZE15#,ZRE15#200910-201208

WHITE PEARL CS.,070

main52159-12B20-B0iNZE15#,ZRE15#200910-201208

SILVER ME.,1F7

main52159-12B20-B1iNZE15#,ZRE15#200910-201208

GRAY ME.,1G3

main52159-12B20-C0iNZE15#,ZRE15#200910-201208

BLACK MC.,209

main52159-12B20-D0iNZE15#,ZRE15#200910-201208

RED M.M.,3R3

main52159-12B20-J1iNZE151200910-201208

DK.BLUE MC.,8S6

main52159-12B20-J2iNZE15#,ZRE15#200910-201208

BLUE ME.,8T4

main52159-12B20-J3iNZE15#,ZRE15#200910-201208

BLUE ME.,8T7

52162DPIECE, REAR BUMPER

main52161-16010×10iNZE151;ZRE152..6F; NZE154,ZRE15#..CVFC200910-201208

52164APLATE, REAR BUMPER, LH

main52164-12060iNZE154,ZRE154200812-200910

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1×2iNZE15#,ZRE15#200610-200812

DK.GRAY

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12110iNZE15#,ZRE15#200610-200812

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12030iNZE15#,ZRE15#200610-200812

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12150iNZE15#,ZRE15#200910

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12150iNZE15#,ZRE15#200812-200910

52581BPROTECTOR, REAR BUMPER

main52581-12140×3iNZE15#,ZRE15#201201

main52581-13030×3iNZE15#,ZRE15#200610-200812

52591SEAL, REAR BUMPER SIDE, RH

main52591-12190iNZE15#,ZRE15#200610-200812

main52591-12250iNZE151;ZRE152..6F200910

main52591-12260iNZE154,ZRE15#..CVFC200910

52592SEAL, REAR BUMPER SIDE, LH

main52592-12110iNZE15#,ZRE15#200610-200812

main52592-12170iNZE151;ZRE152..6F200910

main52592-12180iNZE154,ZRE15#..CVFC200910

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9010906375

main90109-06375

9011908636

main90119-08636

9015950311

main90159-50311

9015960602

main90159-60602

9018306019

main90183-06019

9018906145

main90189-06145

20 parts on this diagram · 2 diagrams in section
