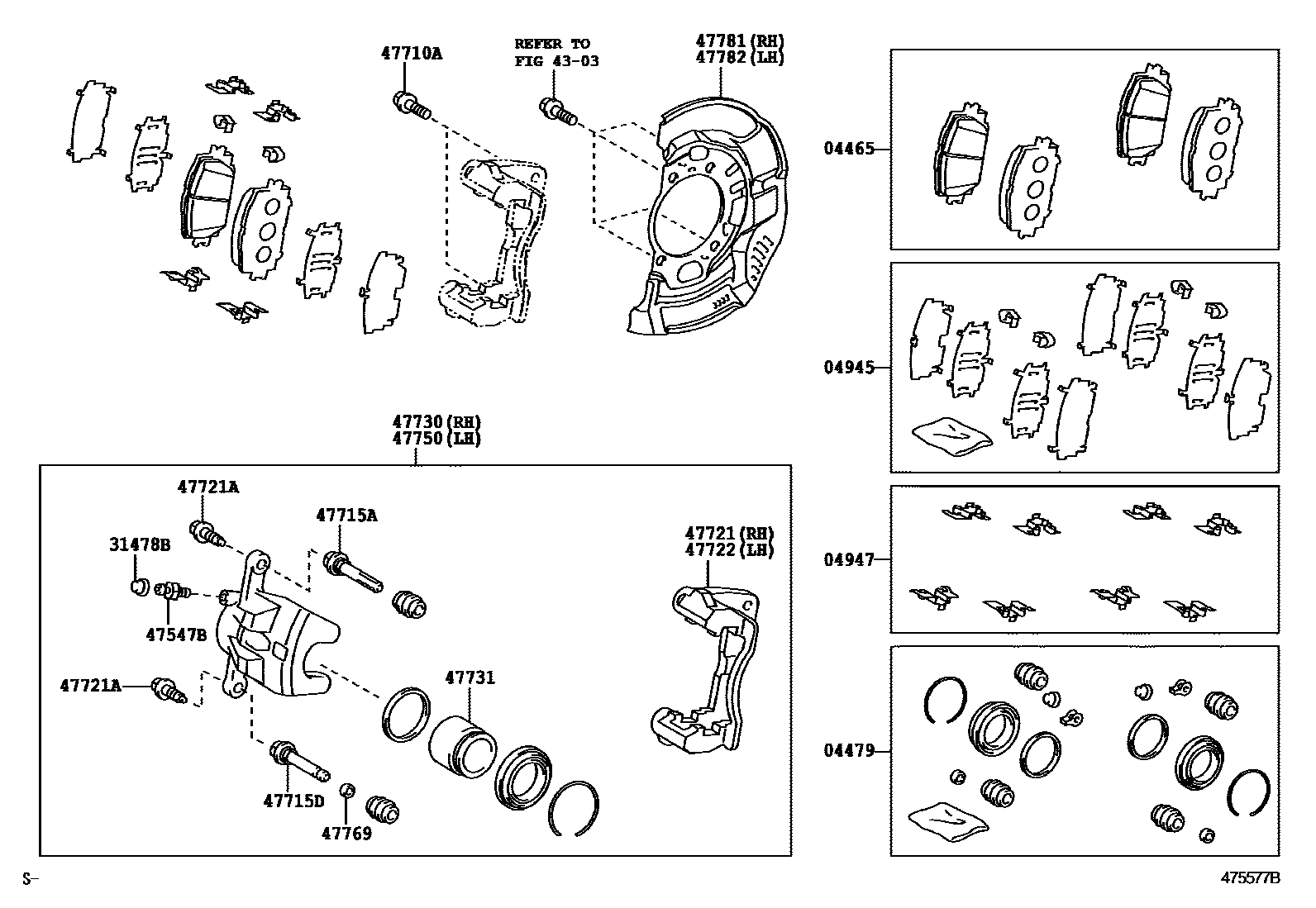

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iNZE15#,ZRE15#200702-200910

main04465-42160iNZE15#,ZRE15#200610-200702

sub04465-42200

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12060iNZE15#,ZRE15#200610-200910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12100iNZE15#,ZRE15#200610-200904

sub04945-12110

main04945-12110iNZE15#,ZRE15#200905-200910

sub04945-12111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNZE15#,ZRE15#200610-200910

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNZE15#,ZRE15#200610-200910

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNZE15#,ZRE15#200610-200910

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNZE15#,ZRE15#200610-201208

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iNZE15#,ZRE15#200610-200910

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iNZE15#,ZRE15#200610-200910

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A10iNZE15#,ZRE15#200610-200910

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNZE15#,ZRE15#200610-200910

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A10iNZE15#,ZRE15#200610-200910

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A10iNZE15#,ZRE15#200610-200910

47731PISTON, FRONT DISC BRAKE

main47731-12A10iNZE15#,ZRE15#200610-200910

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A10iNZE15#,ZRE15#200610-200910

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNZE15#,ZRE15#200610-200910

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12250iNZE15#,ZRE15#200610-201208

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12250iNZE15#,ZRE15#200610-201208

19 parts on this diagram · 1 diagram in section
