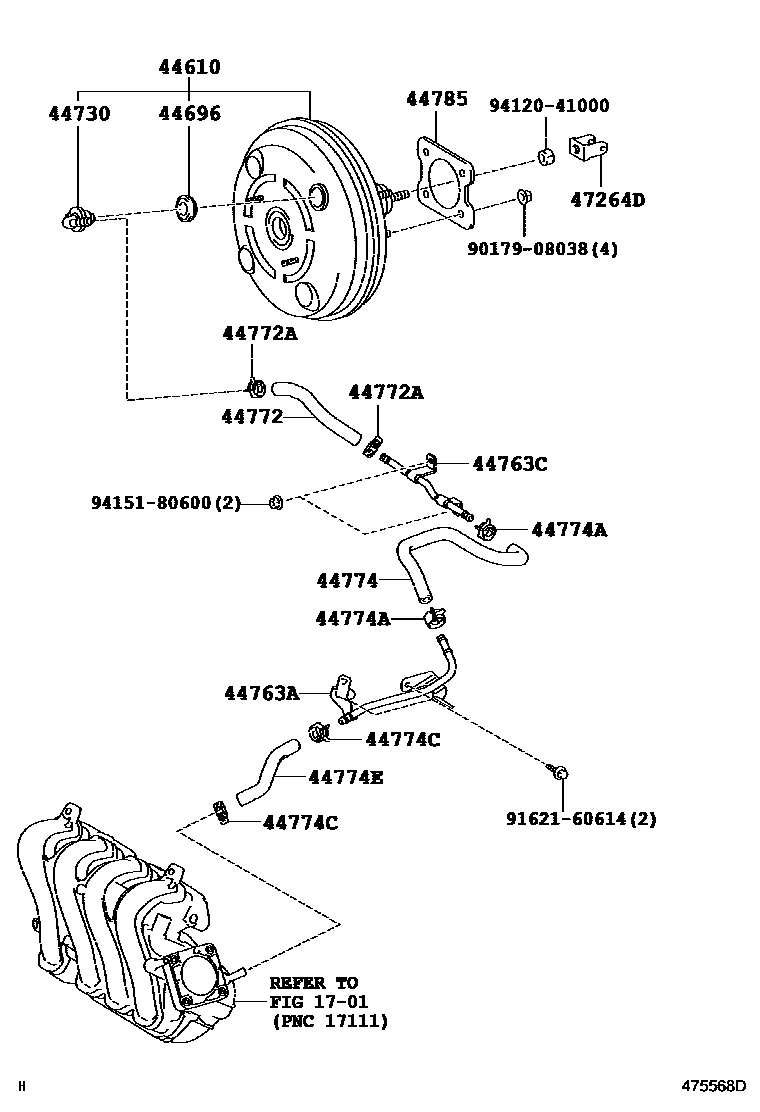

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-12A40supersedes 44610-12A31iNZE15#,ZRE15#200610-200803

main44610-12A41supersedes 44610-12A31iNZE15#,ZRE15#200812-200910

main44610-12G10supersedes 44610-12G20iZRE15#200910-201208

44696GROMMET, CHECK VALVE

main90480-24439×2iNZE15#; ZRE15#200910-201208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iNZE15#,ZRE15#200610-200812

44763ATUBE, HOSE TO HOSE, NO.1

main44763-52030iNZE15#200812-200910

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12420iNZE15#200610-200812

main44763-12440iZRE15#200610-200812

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12600iNZE15#,ZRE15#200610-200812

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500×2iNZE15#,ZRE15#200610-200812

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12560iZRE15#200910-201208

main44774-12600iNZE15#200910-201208

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNZE15#; ZRE15#200812-200910

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNZE15#200812-200910

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-28320iZRE15#200910

main44774-52070iNZE15#200610-200812

44785GASKET, BRAKE BOOSTER

main44785-12040iNZE15#,ZRE15#200610-200812

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iNZE15#,ZRE15#200610-200812

main47264-68010iNZE15#,ZRE15#201012-201208

9017908038

main90179-08038

9162160614

main91621-60614

9412041000

main94120-41000

9415180600

main94151-80600

18 parts on this diagram · 3 diagrams in section
