PARKING BRAKE & CABLE

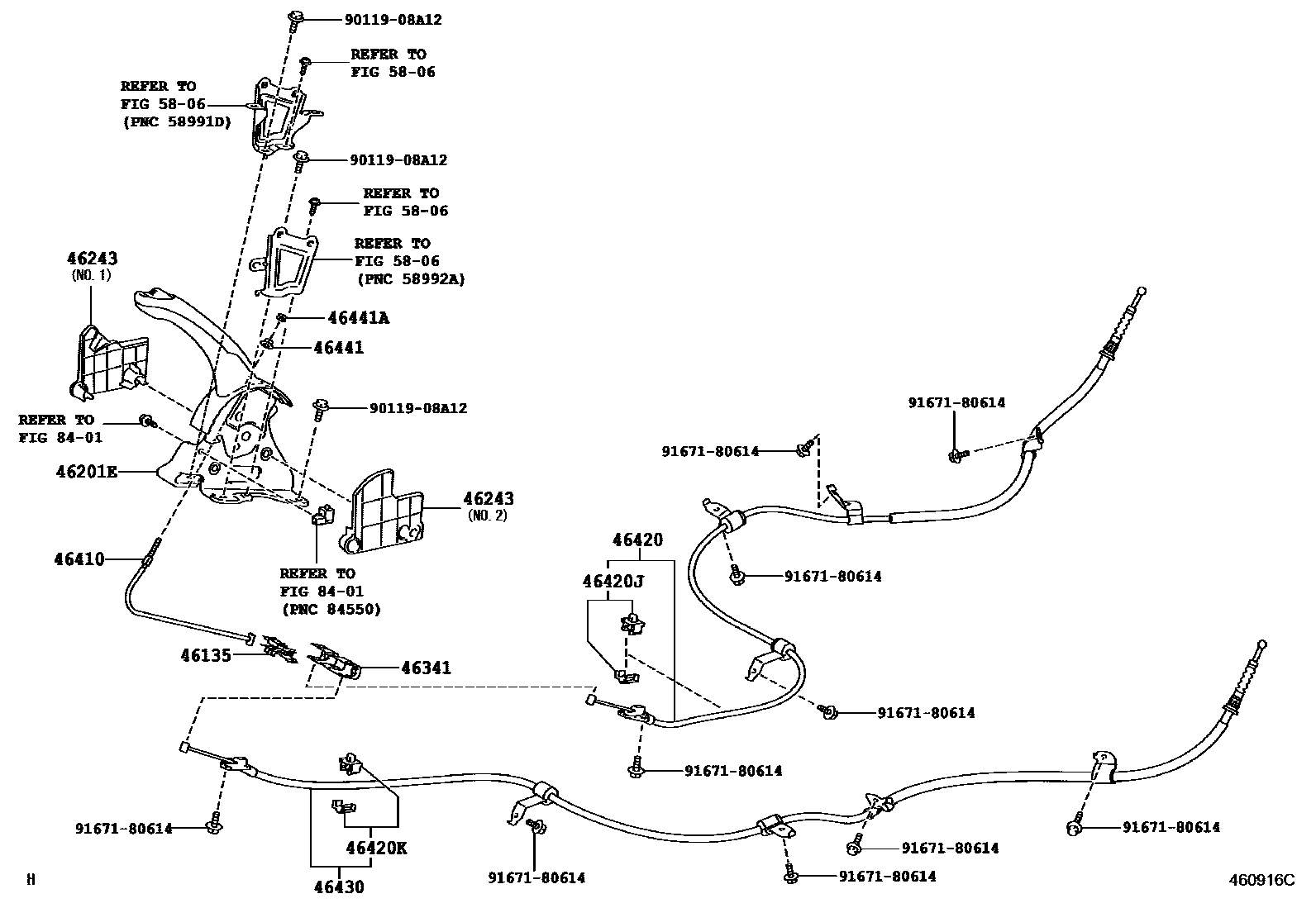

Parts diagram
46135STOPPER, PARKING BRAKE CABLE END
main46135-12010i200610-200910
46201ELEVER SUB-ASSY, PARKING BRAKE
main46201-12351-B0i200610-200708
DK.GRAY,TRIM1#,4#
sub46201-12352
main46201-12352-B0i200709-200910
DK.GRAY,TRIM1#,4#
sub46201-12353
sub90159-50360
main46201-12361-B0i200610-200708
DK.GRAY,TRIM1#,4#
sub46201-12362
main46201-12362-B0i200709-200910
DK.GRAY,TRIM1#,4#
sub46201-12363
sub90159-50360
main46201-12500-B3i200910-201208
DK.GRAY,TRIM1#
main46201-12500-B3i200910-201208
DK.GRAY,TRIM1#,4#
main46201-12510-B2i200910-201208
DK.GRAY,TRIM1#,4#
46243COVER, PARKING BRAKE LEVER
main46243-12041i200610-200910
main46243-12051i200610-200910
46341EQUALIZER, PARKING BRAKE
main46341-12040i200610-200910
46410CABLE ASSY, PARKING BRAKE, NO.1
main46410-12280i200610-200910
main46410-12290i200610-200910
main46410-12350i200910
main46410-12360i200910
46420CABLE ASSY, PARKING BRAKE, NO.2
main46420-12610i200610-200910
main46420-12700i200610-200711
sub46420-12720
main46420-12720i200712-201207
sub46420-12810
main46420-12721i201207-201208
sub46420-12720
main46420-12740i200910-201208
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
main46402-12010i200610-200711
sub46402-12030
main46402-12030i200712-200910
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
main46402-12010i200610-200711
sub46402-12030
main46402-12030i200712-200910
46430CABLE ASSY, PARKING BRAKE, NO.3
main46430-12490i200610-200910
main46430-12580i200610-200711
sub46430-12610
main46430-12610i200712-201207
sub46430-12700
main46430-12611i201207-201208
sub46430-12610
main46430-12630i200910-201208
46441NUT, WIRE ADJUSTING, NO.1
main46441-12010i200610-200910
46441ANUT, WIRE ADJUSTING, NO.2
main90179-06299i200610-201104
5806
8401
9011908A12
main90119-08A12
9167180614
main91671-80614

15 parts on this diagram · 4 diagrams in section
