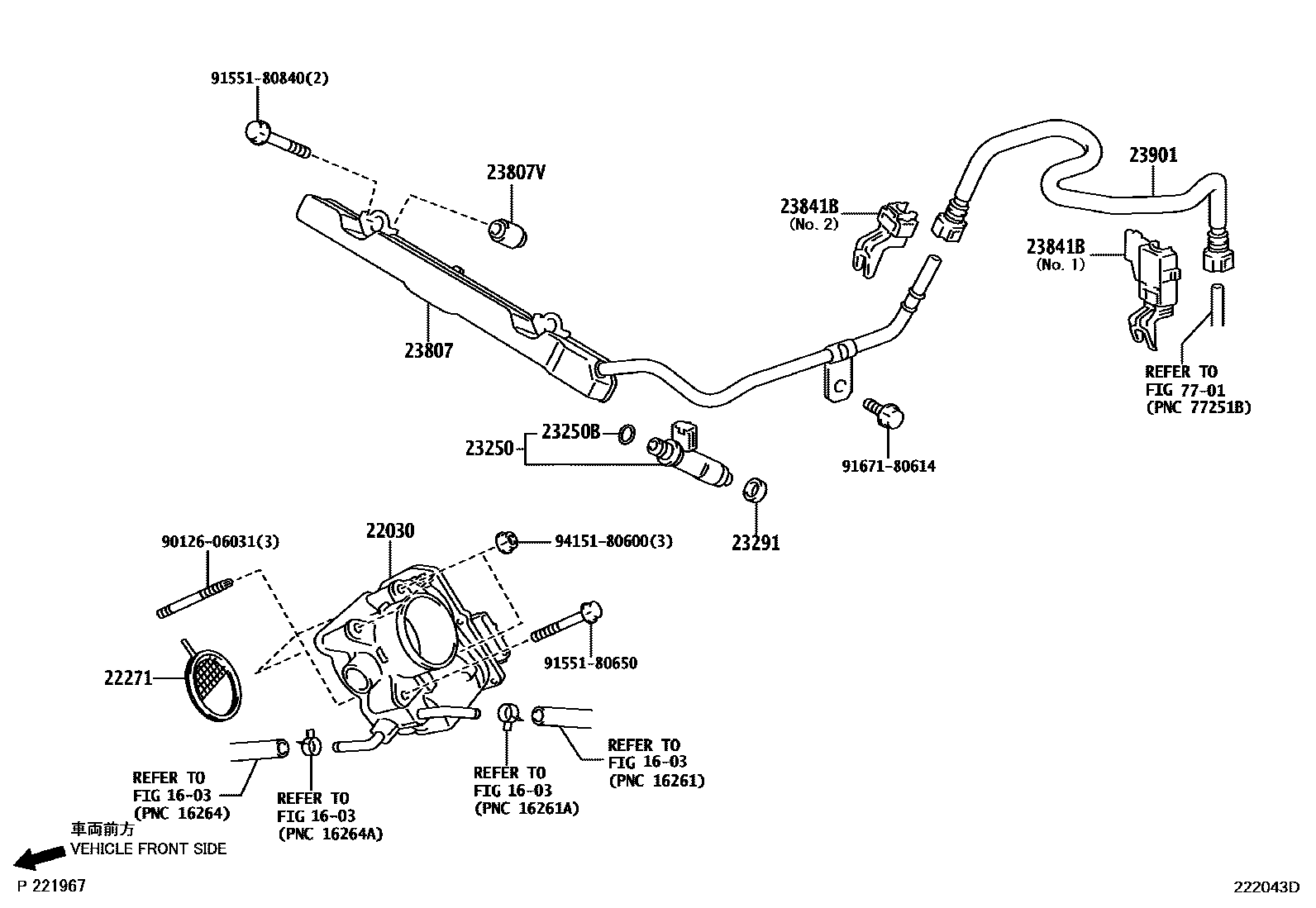

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZE15#200610-200812

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZE15#200610-200812

main22271-75031i2ZRFE..ZRE15#200812-200909

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NZE15#200610-200812

main23209-39145×4i2ZRFE..ZRE15#200610-200812

main23209-39146×4i2ZRFE..ZRE15#200902-200910

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFE..NZE15#; 2ZRFE..ZRE15#200610-200812

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFAE..ZRE15#201001-201208

main23291-28020×4i2ZRFE..ZRE15#200902-200910

main23291-41010×4i2ZRFE..ZRE15#200610-200805

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZE15#200610-200812

main23814-37050i2ZRFE..ZRE15#200812-200910

main23814-37051i2ZRFAE..ZRE15#201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NZE15#200610-200812

main23891-37010×2i2ZRFE..ZRE15#200812-200910

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i1NZFE..NZE15#; 2ZRFE..ZRE15#200812-200910

main23841-21050i1NZFE..NZE15#200910-201107

main23841-28010i1NZFE..NZE15#200610-200704

main23841-36010i1NZFE..NZE15#201108-201208

23901TUBE SUB-ASSY, FUEL

main23901-21150i1NZFE..NZE15#200610-200812

main23901-22180i2ZRFAE..ZRE15#200910-201208

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 3 diagrams in section
