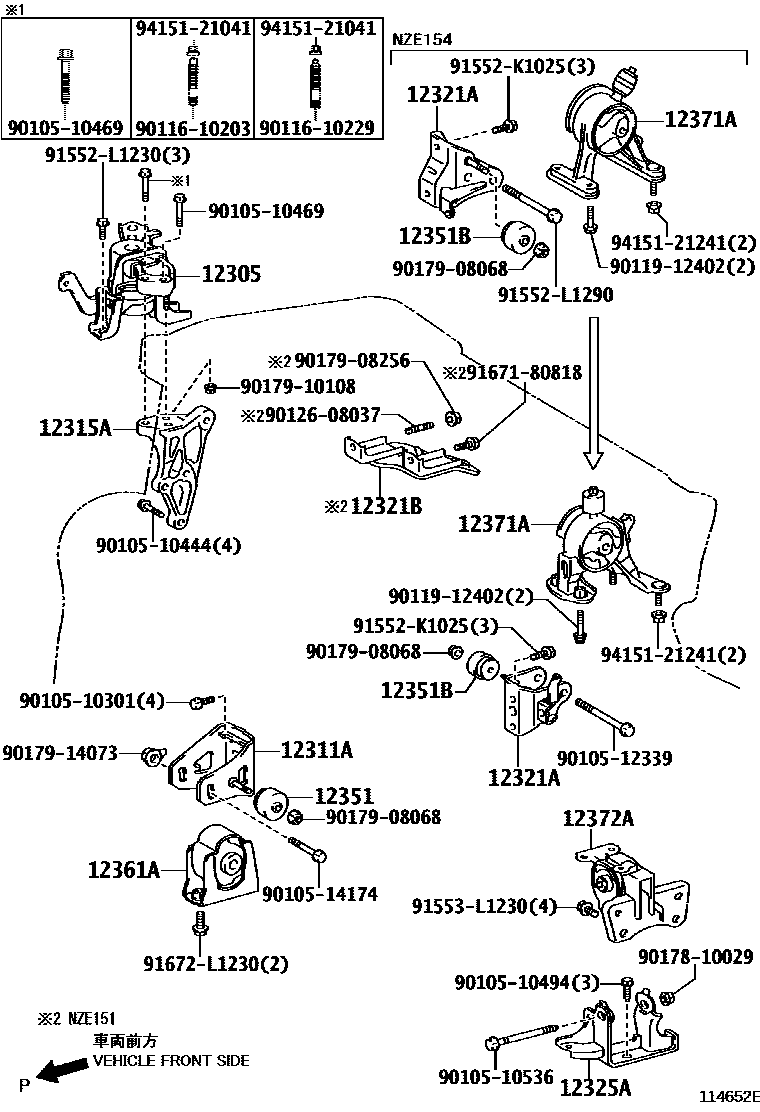

MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21270i1NZFE..NZE154200610-200910

main12305-22360i2ZRFE..ZRE152200610-200708

main12305-22361i2ZRFAE..ZRE152200709-200910

main12305-22370i2ZRFE..ZRE154200610-200910

main12305-33090i1NZFE..NZE151200610-200910

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-22240i2ZRFE..ZRE152200610-200910

main12311-22250i1NZFE..NZE154200610-200910

main12311-37120i2ZRFAE..ZRE152..6F200910

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21041i1NZFE..NZE15#200610-200908

main12315-21042i1NZFE..NZE15#200908-201009

main12315-21043i1NZFE..NZE15#201009-201111

main12315-21044i1NZFE..NZE15#201111

main12315-37030i2ZRFAE..ZRE15#200610-200910

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-22210i1NZFE..NZE151200610-200910

main12321-22220i1NZFE..NZE154200610-200910

main12321-37100i2ZRFAE..ZRE152..6F200910

main12321-37140i2ZRFAE..ZRE152..CVFC200910

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12060i2ZRFAE..ZRE152..6F201201

main43409-20031i2ZRFAE..ZRE152..6F200910-201201

main43409-52020i1NZFE..NZE151200610-200910

main43498-12051i2ZRFAE..ZRE152..6F201201

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-37100i2ZRFAE..ZRE152..6F200910

main12325-22300i1NZFE..NZE15#200610-200910

12351DAMPER, ENGINE MOUNTING

main12351-27050i2ZRFAE..ZRE15#..CVFC200610-201002

main12351-37060i2ZRFAE..ZRE152..6F200910

main12351-37120i1NZFE..NZE15#201003

12351BDAMPER, ENGINE MOUNTING

main12351-27050i1NZFE..NZE154200610-201002

main12351-37120i2ZRFAE..ZRE15#..CVFC201003

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28230i2ZRFAE..ZRE152..6F200910

main12361-28240i2ZRFE..ZRE15#200610-200910

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-22220i2ZRFAE..ZRE152..6F200910

main12371-22230i2ZRFE..ZRE152200610-200910

main12371-28220i2ZRFE..ZRE154200610-200910

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-22160i1NZFE..NZE151200610-200708

main12372-22161i1NZFE..NZE151200709-200910

main12372-22170i1NZFE..NZE154200610-200708

main12372-22171i2ZRFE..ZRE154200709-200910

main12372-37150i2ZRFAE..ZRE152..6F200910

9010510301

main90105-10301

9010510444

main90105-10444

9010510469

main90105-10469

9010510494

main90105-10494

9010510536

main90105-10536

9010512339

main90105-12339

9010514174

main90105-14174

9011610203

main90116-10203

9011610229

main90116-10229

9011912402

main90119-12402

9012608037

main90126-08037

9017810029

main90178-10029

9017908068

main90179-08068

9017908256

main90179-08256

9017910108

main90179-10108

9017914073

main90179-14073

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1290

main91552-L1290

91553L1230

main91553-L1230

9167180818

main91671-80818

91672L1230

main91672-L1230

9415121041

main94151-21041

9415121241

main94151-21241

35 parts on this diagram · 4 diagrams in section
