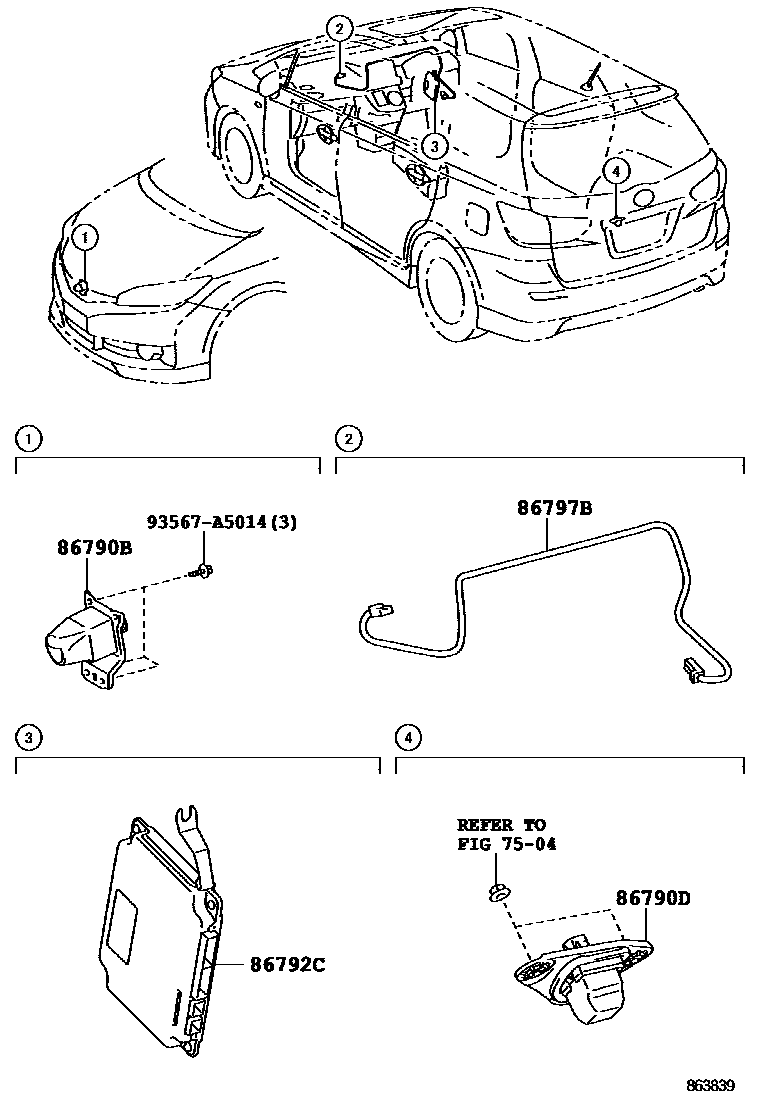

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86790BCAMERA ASSY, TELEVISION, FR

main86790-68070iZGE2#..CBU200903-201109

main86790-68071iZGE2#..CBU201110-201204

86790DCAMERA ASSY, TELEVISION, RR

main86790-68090iZGE2#..(18S,18X,20G,20Z)..CBU200903

86792CCOMPUTER, PARKING ASSIST

main86792-68080iZGE20,25..18X..CBU200903-201204

main86792-68090iZGE20,25..18X..CBU200912-201110

main86792-68100iZGE22..CBU200903-201204

86797BWIRE, PARKING ASSIST

main86797-68030iZGE20,25..18X..CBU200912-201110

93567A5014

main93567-A5014

6 parts on this diagram · 1 diagram in section
