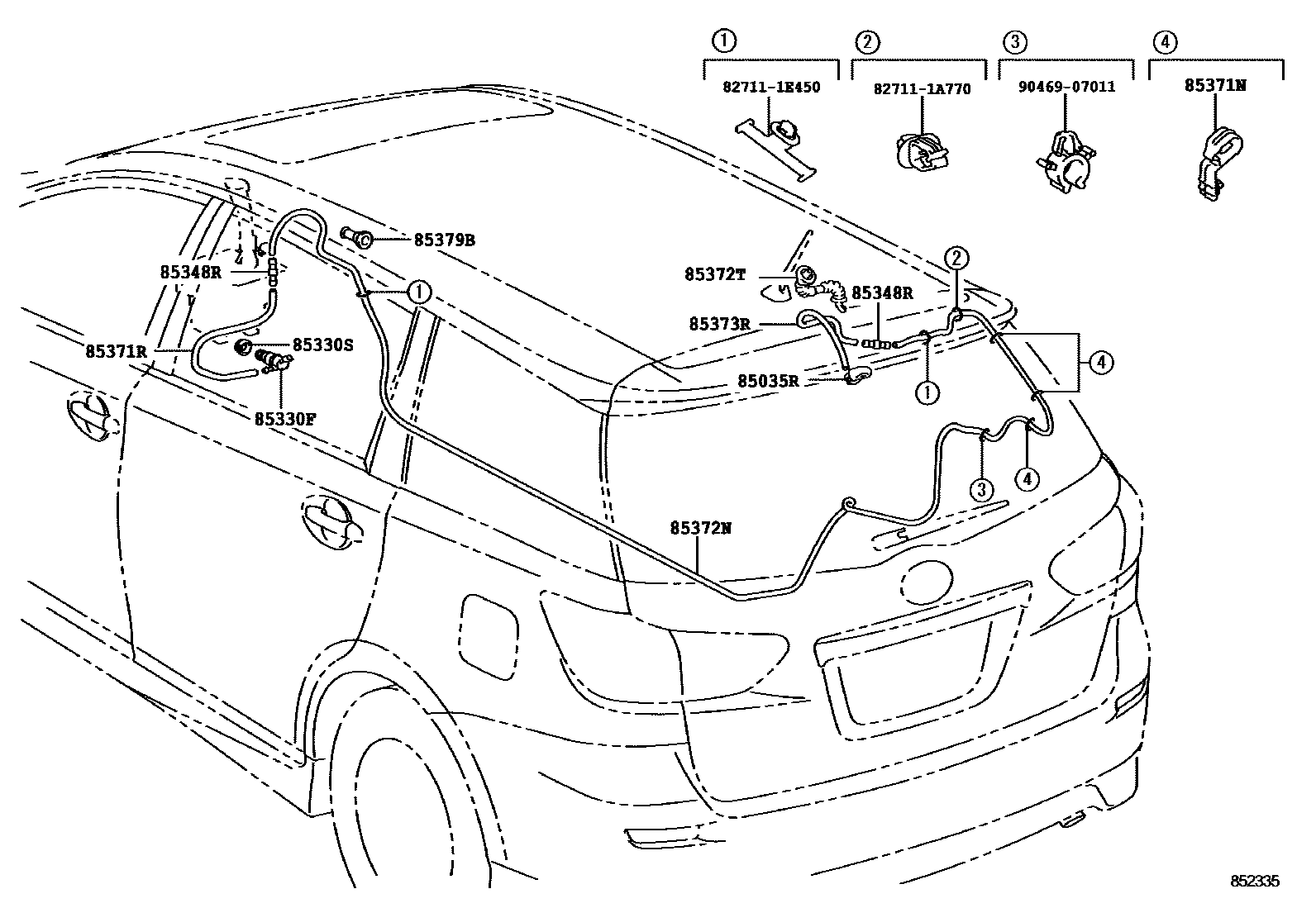

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-68020iZGE2#..CBU201204

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iZGE2#..CBU200903-201204

85330SBUSH, REAR WASHER JAR

main85336-60300iZGE2#..CBU200903-201204

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iZGE2#..CBU200903-201204

85371NCLAMP, REAR WASHER HOSE

main85371-68020×3iZGE2#..CBU200903-201204

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iZGE2#..CBU201204

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59337iZGE2#..CBU200905-201204

main90099-59358iZGE2#..CBU200903-200905

85372TGROMMET, WASHER

main85373-44010iZGE2#..CBU200903-201204

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZGE2#..CBU200903-201109

main90099-62070iZGE2#..CBU201109-201204

85379BGROMMET, WASHER, A

main85379-16180iZGE2#..CBU200903-201204

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

9046907011

main90469-07011

13 parts on this diagram · 1 diagram in section
