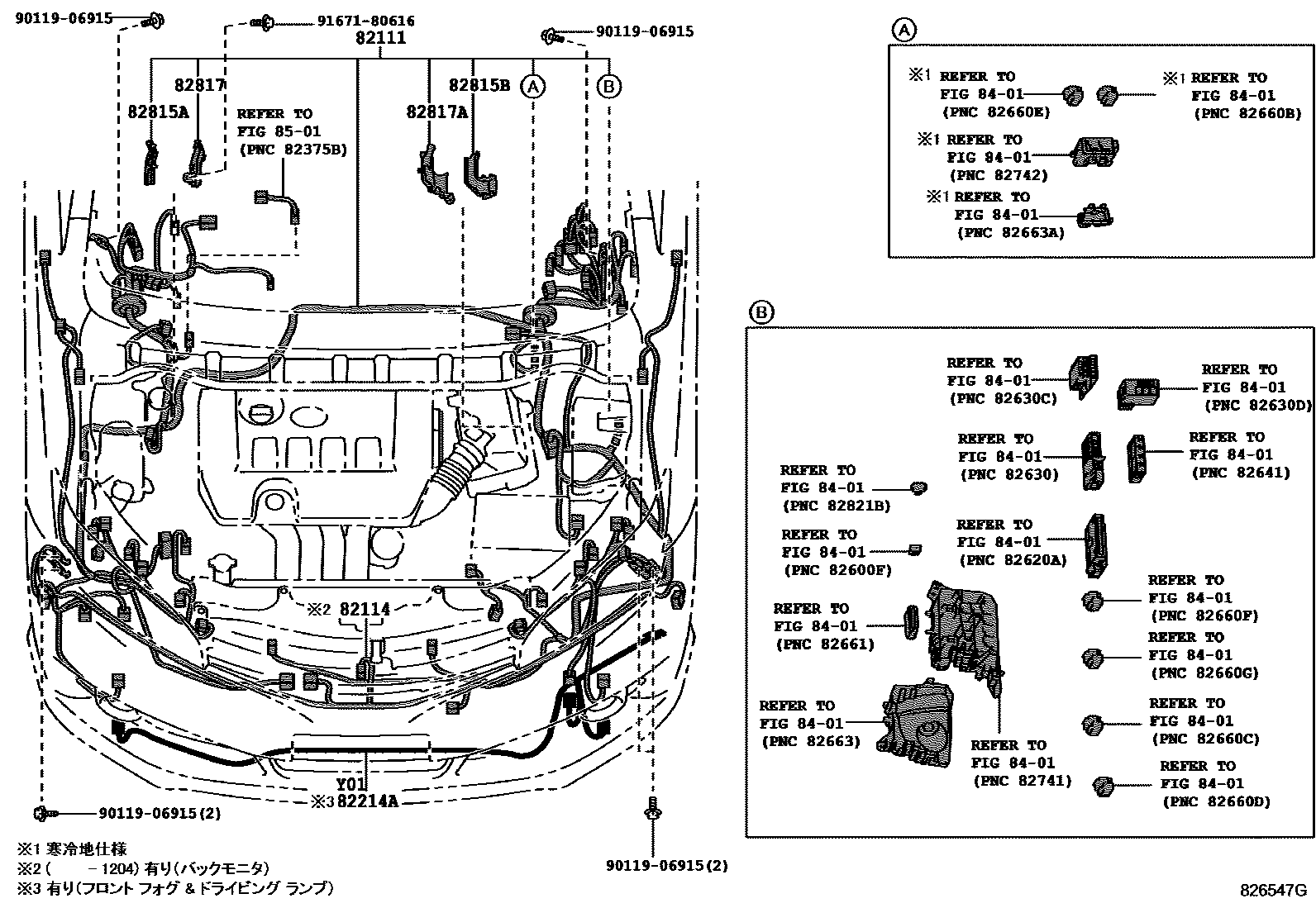

82111WIRE, ENGINE ROOM MAIN

main82111-68130supersedes 82111-68120iZGE20,25..18X..CBU200903-200912

main82111-68131supersedes 82111-68121iZGE20,25..18X..CBU200912-201204

main82111-68132supersedes 82111-68122iZGE20,25..(18A,18X)..CBU201204-201505

main82111-68141iZGE20,25..18X..CBU201004-201204

main82111-68142iZGE20,25..18S..CBU; ZGE20,25..18X..CBU201204-201505

main82111-68150supersedes 82111-68140iZGE20,25..18S..CBU; ZGE21,22..CBU200903-200912

main82111-68151supersedes 82111-68141iZGE20,25..18S..CBU; ZGE21,22..CBU200912-201204

main82111-68160supersedes 82111-68140iZGE20,25..18S..CBU200903-200912

main82111-68161iZGE20,25..18X..CBU201004-201204

main82111-68162supersedes 82111-68142iZGE20,25..18S..CBU; ZGE20,25..18X..CBU201204-201505

main82111-68170supersedes 82111-68140iZGE20,25..18S..CBU; ZGE21,22..CBU200903-200912

main82111-68171supersedes 82111-68141iZGE20,25..18S..CBU; ZGE21,22..CBU200912-201204

main82111-68172supersedes 82111-68230iZGE2#..18G,20Z; ZGE20,25..18S..CBU; ZGE20,25..18X..CBU201204-201505

main82111-68190supersedes 82111-68121iZGE20,25..18X..CBU200912-201204

main82111-68191supersedes 82111-68122iZGE20,25..(18A,18X)..CBU201204-201505

main82111-68200supersedes 82111-68121iZGE20,25..18X..CBU200912-201204

main82111-68201supersedes 82111-68122iZGE20,25..(18A,18X)..CBU201204-201505

main82111-68230supersedes 82111-68142iZGE2#..18G,20Z; ZGE20,25..18S..CBU; ZGE20,25..18X..CBU201204-201505

main82111-68250supersedes 82111-68380iZGE25..(18A,18X)..CBU201505

main82111-68260supersedes 82111-68390iZGE20..(18A,18X)..CBU201505

main82111-68270supersedes 82111-68380iZGE25..(18A,18X)..CBU201505

main82111-68280supersedes 82111-68390iZGE20..(18A,18X)..CBU201505

main82111-68310supersedes 82111-68290iZGE25..18S..CBU201505

main82111-68320supersedes 82111-68300iZGE20..18S..CBU201505

main82111-68330supersedes 82111-68290iZGE22,25..18G,20Z; ZGE25..18S..CBU201505

main82111-68340supersedes 82111-68300iZGE20..18G; ZGE20..18S..CBU201505

main82111-68350supersedes 82111-68330iZGE22,25..18G,20Z; ZGE25..18S..CBU201505

main82111-68360supersedes 82111-68340iZGE20..18G; ZGE20..18S..CBU201505

main82111-68400supersedes 82111-68380iZGE25..(18A,18X)..CBU201505

main82111-68410supersedes 82111-68390iZGE20..(18A,18X)..CBU201505

82114WIRE, ENGINE ROOM, NO.4

main82114-68010iZGE2#..CBU200903-201204

82214AWIRE, LAMP

main82214-68010iZGE20,25..18X..CBU200903-201204

main82214-68011iZGE20,25..(18A,18X)..CBU201204-201711

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12330iZGE2#..CBU200903-201204

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12250iZGE2#..CBU201204

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12E91iZGE2#..CBU201204

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12D50iZGE2#..CBU201204

8401SWITCH & RELAY & COMPUTER
