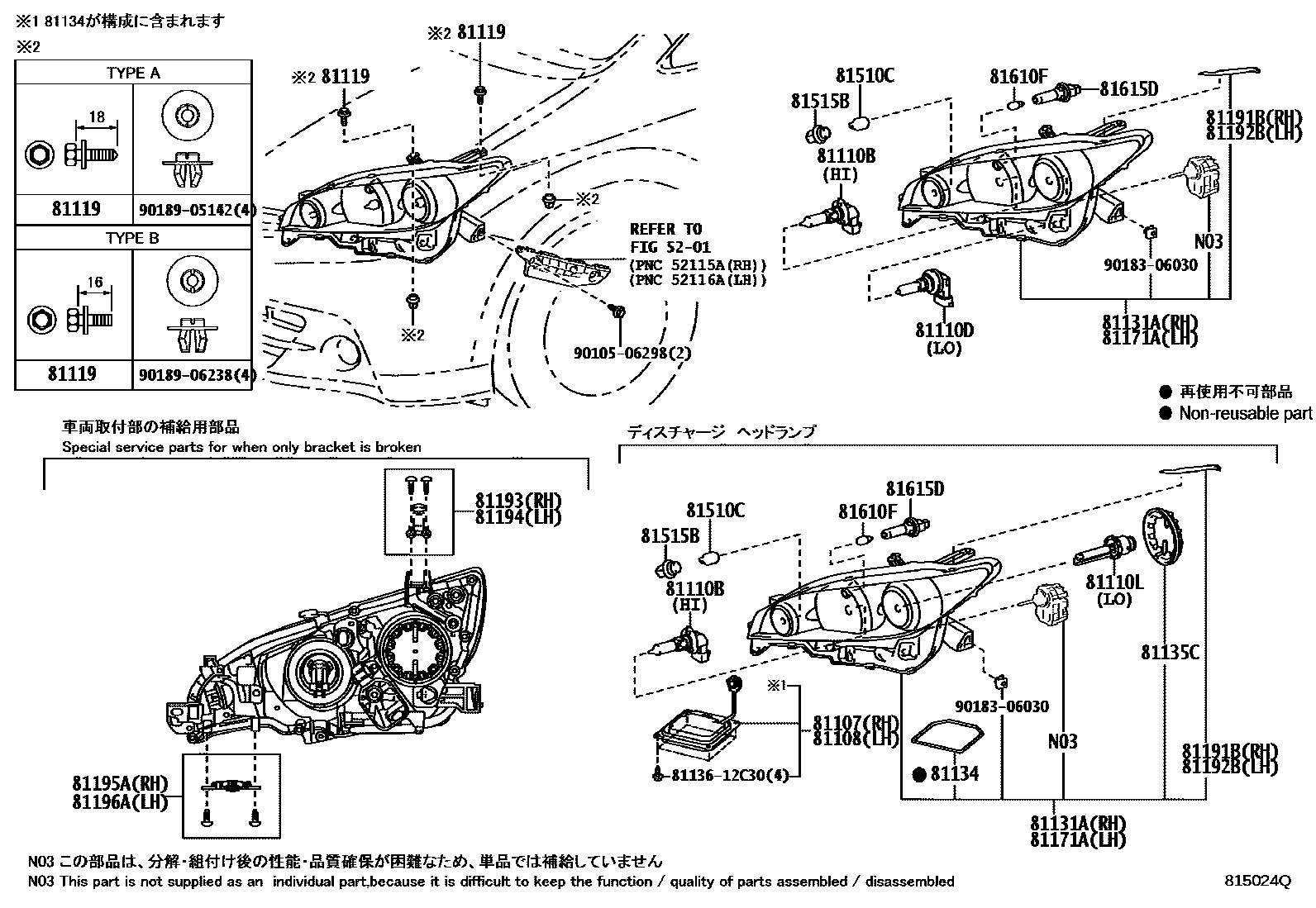

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-52A00i200903-201001

main81107-52A01i201204

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-52A00i200903-201001

main81107-52A01i201204

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i201204

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13082×2i201204

81110LBULB, DISCHARGE HEADLAMP

main90981-20028×2i201204

81119SCREW, HEADLAMP

main90159-50311×4i200903-201204

main90159-50388×4i201206-201711

main90159-60621×4i201511-201711

81131AUNIT, HEADLAMP, RH

main81130-68070i201204

main81145-68080supersedes 81130-68070i200903-201204

main81145-68100i201204

81134GASKET, HEADLAMP

main90075-68007i200903-201204

81135CCOVER, HEADLAMP BACK, NO.1

main81135-12B30×2i200903-201204

81171AUNIT, HEADLAMP, LH

main81170-68070i201204

main81185-68080supersedes 81170-68070i200903-201204

main81185-68100i201204

81191BTAPE, HEADLAMP, RH

main81191-68010i200903-201204

81192BTAPE, HEADLAMP, LH

main81192-68010i200903-201204

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-68050i200903-201204

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81193-68050i200903-201204

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-68050i200903-201204

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81195-68050i200903-201204

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200903-201204

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2i200903-201204

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200903-201204

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2i200903-200912

main90075-60077×2i200912-201204

8113612C30PROTECTOR, HEADLAMP, NO.1 RH

main81136-12C30

9010506298

main90105-06298

9018306030

main90183-06030

9018905142

main90189-05142

9018906238

main90189-06238
