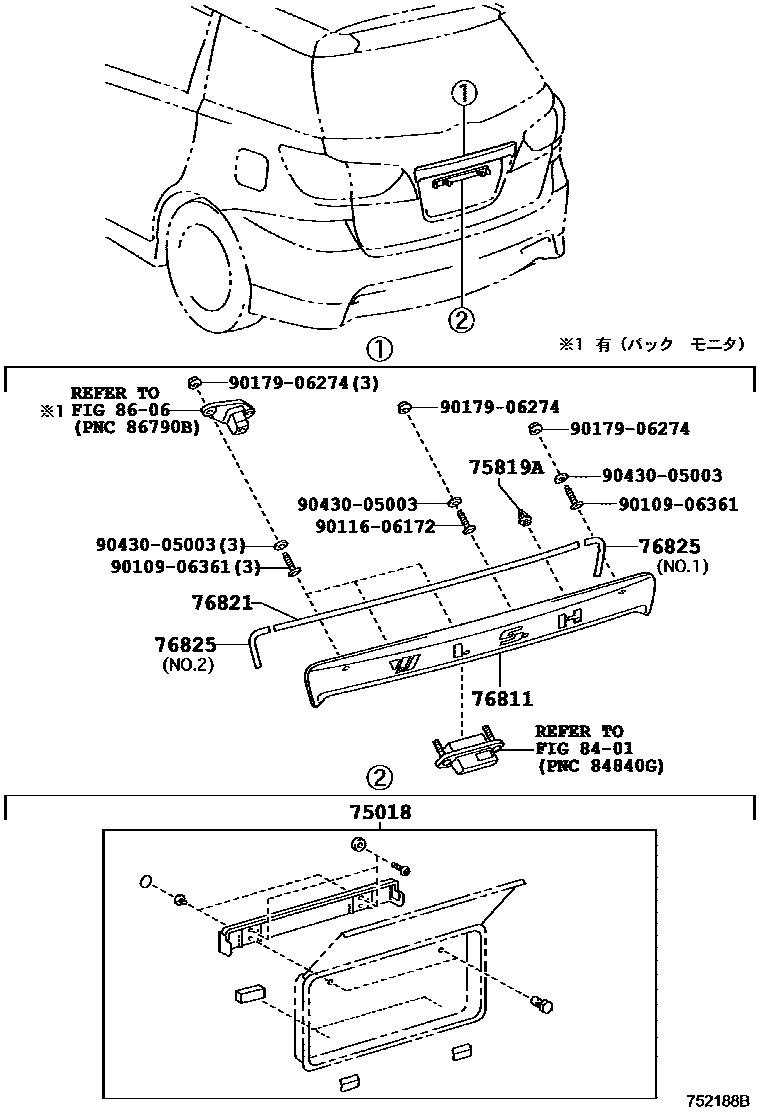

REAR MOULDING

0001 1 0002 1

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020iZGE2#..CBU200903-201204

75819ACLIP, BACK DOOR MOULDING

main75819-33010iZGE2#..CBU201204

76811GARNISH, BACK DOOR, OUTSIDE

main76811-68130iZGE2#..CBU201204

main76811-68110supersedes 76811-68120iZGE2#..CBU200903-201204

main76811-68140iZGE20,25..18S..CBU201110-201204

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-68070iZGE2#..CBU201204

main76821-68080iZGE2#..CBU200903-201204

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-68030iZGE2#..CBU200903-201204

main76835-68030iZGE2#..CBU200903-201204

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010906361

main90109-06361

9011606172

main90116-06172

9017906274

main90179-06274

9043005003

main90430-05003

11 parts on this diagram · 2 diagrams in section
