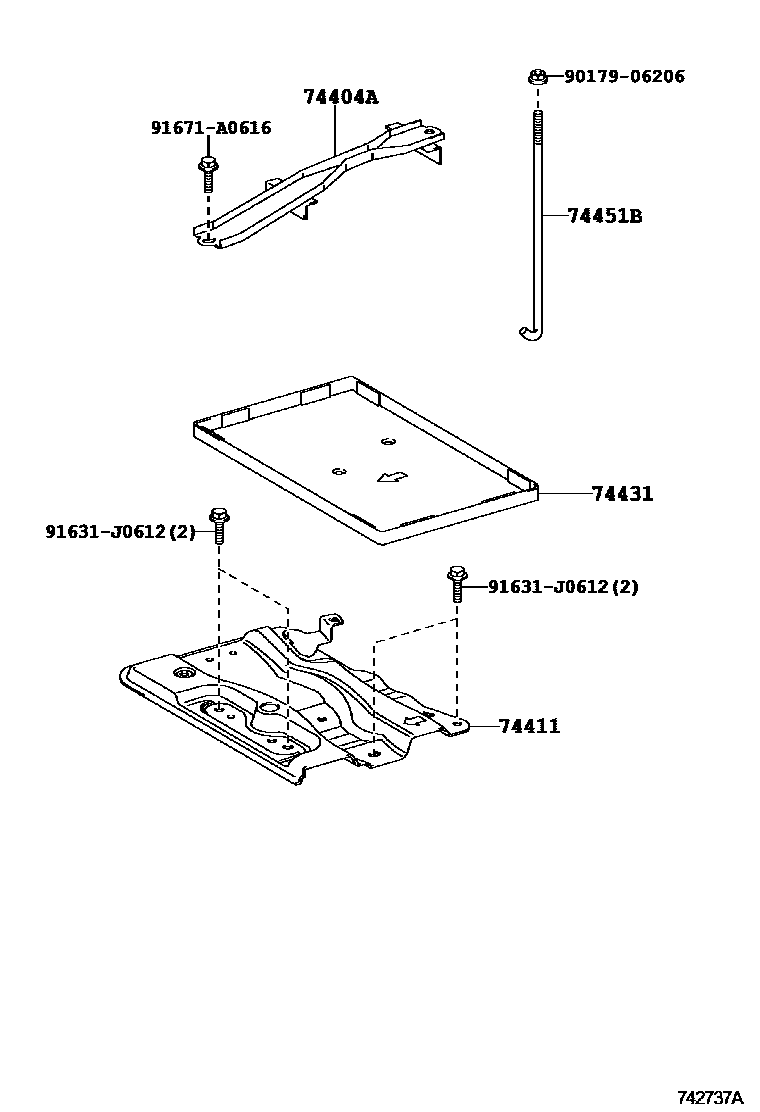

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-20640iZGE20..18X..CBU;ZGE21,22,25..CBU200903-201204

main74404-20650iZGE20..18S..CBU201004-201204

74411CARRIER, BATTERY

main74410-20080iZGE2#..CBU200903-201204

74431TRAY, BATTERY

main74431-12090iZGE20..18S..CBU201004-201204

main74431-20130iZGE20..18X..CBU;ZGE21,22,25..CBU200903-201204

74451BBOLT, BATTERY CLAMP

main74451-10060iZGE2#..CBU200903-201210

main74451-10061iZGE2#..CBU201506

sub74451-42030

main74451-58011iZGE2#..CBU201211-201505

9017906206

main90179-06206

91631J0612

main91631-J0612

91671A0616

main91671-A0616

7 parts on this diagram · 1 diagram in section
