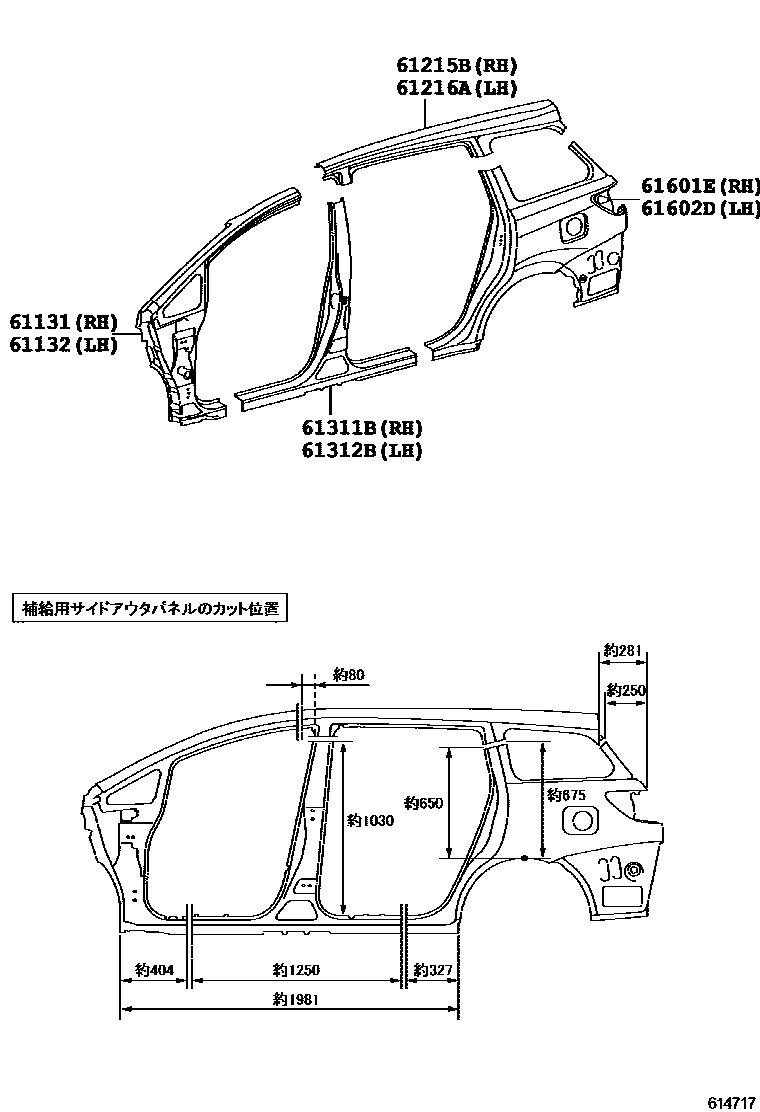

SIDE MEMBER

0001 1������� 0002 1������� RH 0003 1������� RH 0004 1������� RH 0005 1������� LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-68010iZGE2#..CBU200903-201204

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-68010iZGE2#..CBU200903-201204

61215BRAIL, ROOF SIDE, OUTER NO.3 RH

main61215-68020iZGE2#..CBU200903-201204

61216ARAIL, ROOF SIDE, OUTER REAR LH

main61216-68020iZGE2#..CBU200903-201204

61311BPILLAR, CENTER BODY, OUTER RH

main61311-68030iZGE2#..CBU200903-201204

61312BPILLAR, CENTER BODY, OUTER LH

main61312-68030iZGE2#..CBU200903-201204

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-68040iZGE20,21,25..CBU200903-201204

main61601-68050iZGE22..CBU200903-201204

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-68040iZGE20,21,25..CBU200903-201204

main61602-68050iZGE22201204

8 parts on this diagram · 5 diagrams in section
