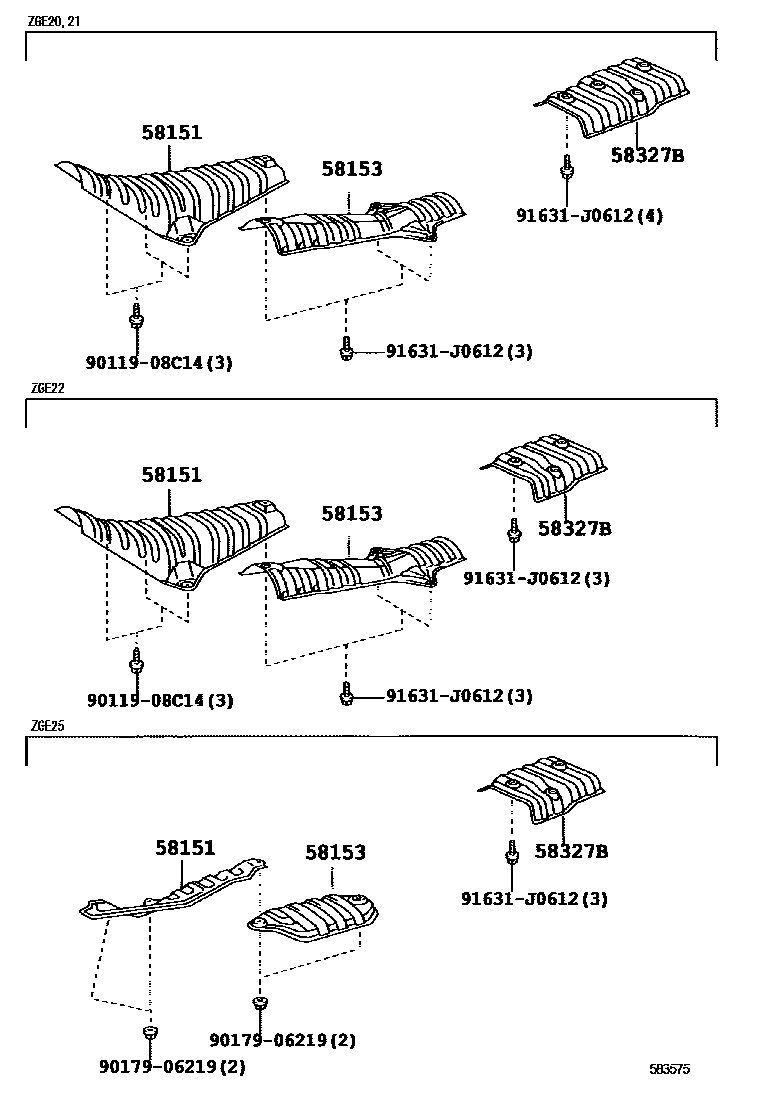

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-68021iZGE25..CBU200903-201204

main58151-68040iZGE20,21,22..CBU200903-201204

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-68011iZGE20,22..CBU201204

main58153-68020iZGE25..CBU200903-201204

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-68010iZGE20,21..CBU200903-201204

main58327-68030iZGE22,25..CBU200903-201204

9011908C14

main90119-08C14

9017906219

main90179-06219

91631J0612

main91631-J0612

6 parts on this diagram · 1 diagram in section
