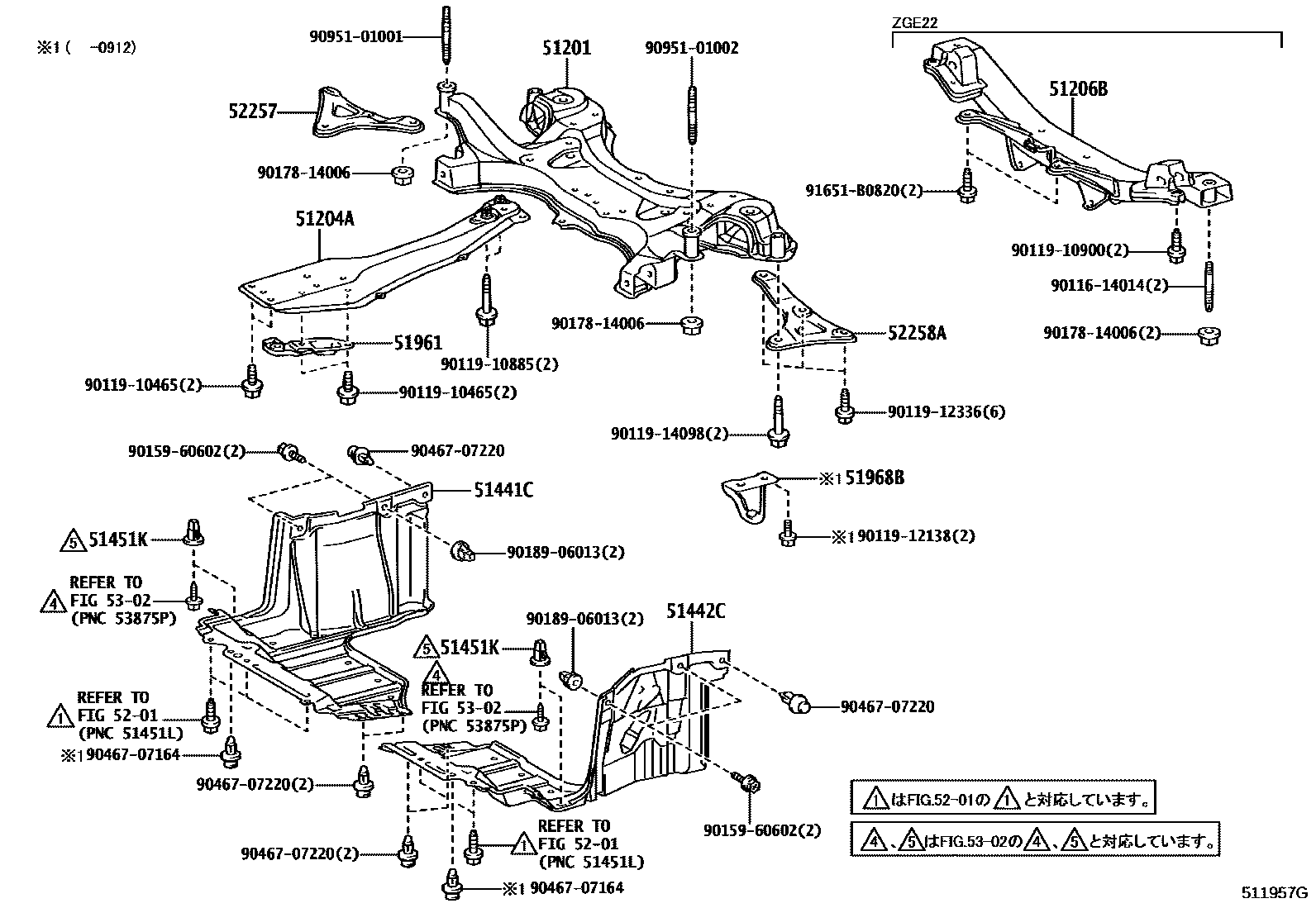

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20361iZGE20,21,22..CBU200903-201204

main51201-20362iZGE20,22..CBU201310

main51201-20370iZGE25..CBU200903-201204

main51201-20371iZGE25..CBU201312

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iZGE20,21,22..CBU200903-201204

main51204-44020iZGE25..CBU201204-201711

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-68010iZGE22..CBU200903-201001

main51206-68011iZGE22201204

main51206-68022iZGE25..CBU200903-201005

main51206-68023iZGE25..CBU201204-201504

main51206-68024iZGE25..CBU201505

51441CCOVER, ENGINE UNDER, RH

main51441-68020iZGE2#..CBU200903-201204

51442CCOVER, ENGINE UNDER, LH

main51442-68020iZGE2#..CBU200903-201204

51451KGROMMET, SCREW, NO.1

main90189-06208×2iZGE2#..CBU200903-201204

51961HOOK, NO.1

main51963-32040iZGE2#..CBU200903-201204

51968BHOOK, TRANSPORT, REAR LH

main51968-68011iZGE20,21..CBU; ZGE22,25..CBU200903-201204

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iZGE2#..CBU200903-201104

main52257-20071iZGE2#..CBU201105-201204

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iZGE2#..CBU200903-201104

main52258-20071iZGE2#..CBU201105-201204

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011614014

main90116-14014

9011910465

main90119-10465

9011910885

main90119-10885

9011910900

main90119-10900

9011912138

main90119-12138

9011912336

main90119-12336

9011914098

main90119-14098

9015960602

main90159-60602

9017814006

main90178-14006

9018906013

main90189-06013

9046707164

main90467-07164

9046707220

main90467-07220

9095101001

main90951-01001

9095101002

main90951-01002

91651B0820

main91651-B0820

27 parts on this diagram · 2 diagrams in section
