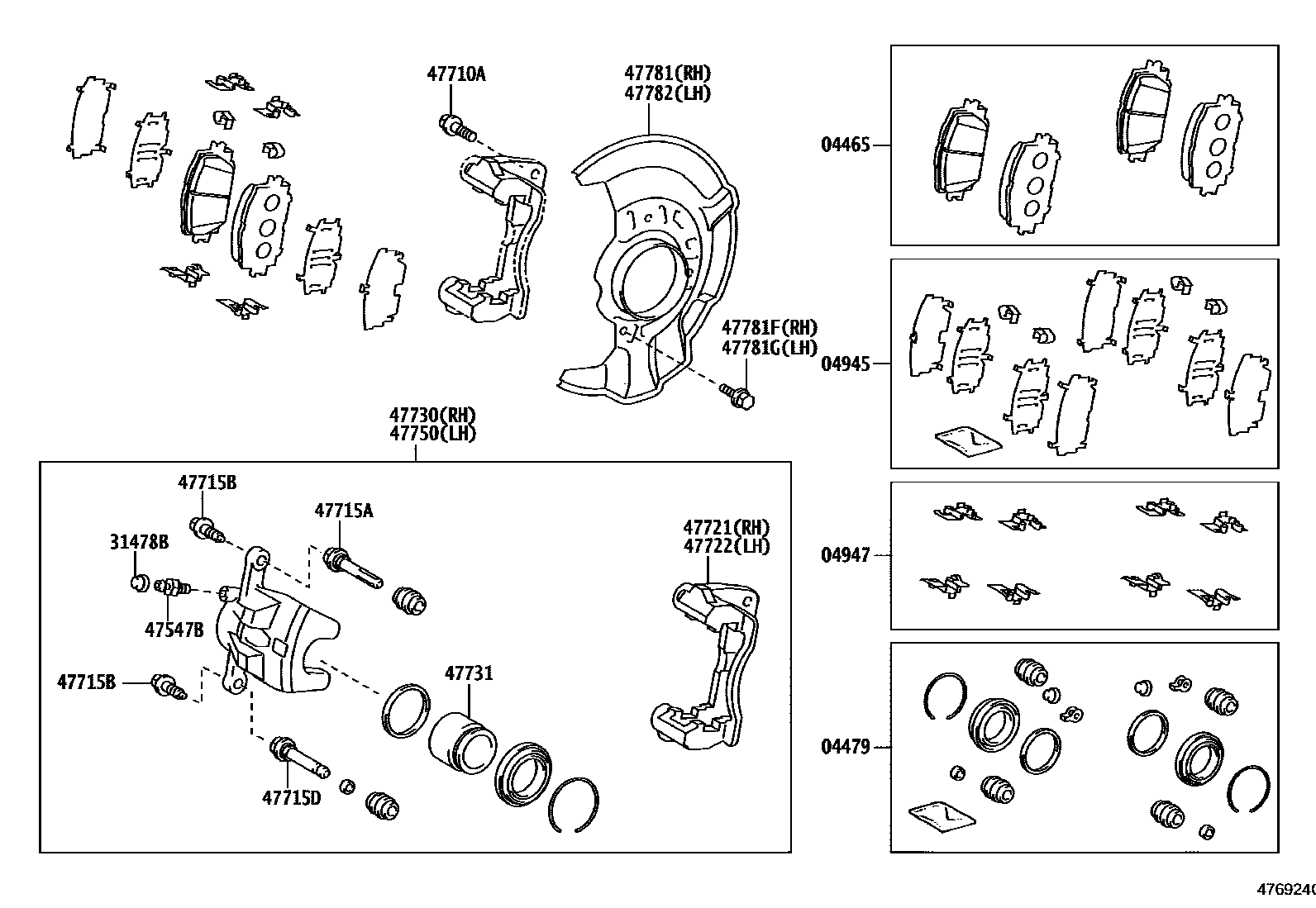

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iZGE2#..CBU200903-201204

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZGE2#..CBU200903-201204

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12110iZGE2#..CBU200906-201204

main04945-12111iZGE2#..CBU201311

main04945-68010iZGE2#..CBU200903-200905

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZGE2#..CBU201204

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iZGE2#..CBU200903-201204

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iZGE2#..CBU200903-201204

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iZGE2#..CBU200903-201204

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190×2iZGE2#..CBU200903-201204

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iZGE2#..CBU200903-201204

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10×2iZGE2#..CBU200903-201204

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-68030iZGE2#..CBU200903-201204

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-68030iZGE2#..CBU200903-201204

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-68030iZGE2#..CBU200903-201204

47731PISTON, FRONT DISC BRAKE

main47731-12A70×2iZGE2#..CBU200903-201204

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-68030iZGE2#..CBU200903-201204

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12260iZGE2#..CBU200903-201204

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227×3iZGE2#..CBU200903-201204

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227×3iZGE2#..CBU200903-201204

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12260iZGE2#..CBU200903-201204

19 parts on this diagram · 1 diagram in section
