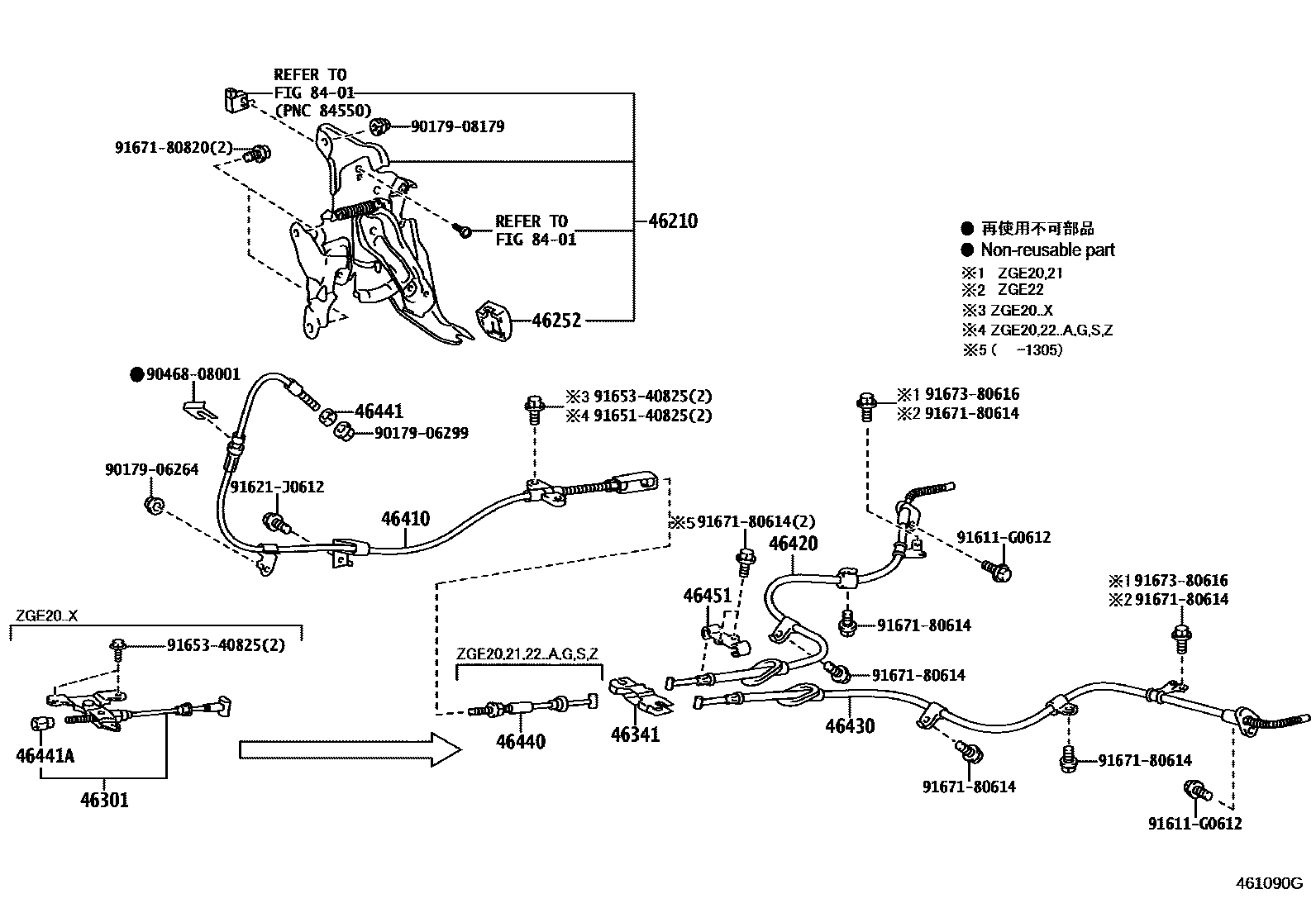

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46210LEVER ASSY, PARKING BRAKE

main46210-68030iZGE20..18X..CBU200903-201204

main46210-68040iZGE20..18S..CBU;ZGE21,22,25..CBU200903-201204

46252PAD, PARKING PEDAL

main46252-22010iZGE2#..CBU200903-201204

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-68010iZGE20..18X..CBU200903-201204

46341EQUALIZER, PARKING BRAKE

main46341-12020iZGE25..CBU200903-201204

main46341-20070iZGE20,21,22..CBU200903-201006

main46341-42020iZGE20,22..CBU201007-201204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-68040iZGE20..18X..CBU200903-201204

main46410-68050iZGE20,21,22..(18S,20G,20Z)..CBU200903-201204

main46410-68060iZGE25..CBU200903-201204

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-68020iZGE20..(18A,18G,18S)..CBU200903-201711

main46420-68060iZGE20..18X..CBU200903-201711

main46420-68070iZGE22200903-201711

main46420-68080iZGE25..CBU200903-201711

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-68020iZGE20,21..(18S,20G)..CBU200903-201711

main46430-68060iZGE20..18X..CBU200903-201711

main46430-68070iZGE22200903-201711

main46430-68080iZGE25..CBU200903-201711

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-68020iZGE20,21,22..(18S,20G,20Z)..CBU200903-201204

main46440-68030iZGE25..CBU200903-201204

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZGE2#..CBU200903-201204

46441ANUT, WIRE ADJUSTING, NO.2

main46441-47020iZGE20..18X..CBU200903-201204

46451BRACKET, CABLE SUPPORT

main46451-68010iZGE20,21,22..CBU200903-201204

8401

9017906264

main90179-06264

9017906299

main90179-06299

9017908179

main90179-08179

9046808001

main90468-08001

91611G0612

main91611-G0612

91621J0612

main91621-J0612

9165140825

main91651-40825

9165340825

main91653-40825

9167180614

main91671-80614

9167180820

main91671-80820

9167380616

main91673-80616

23 parts on this diagram · 3 diagrams in section
