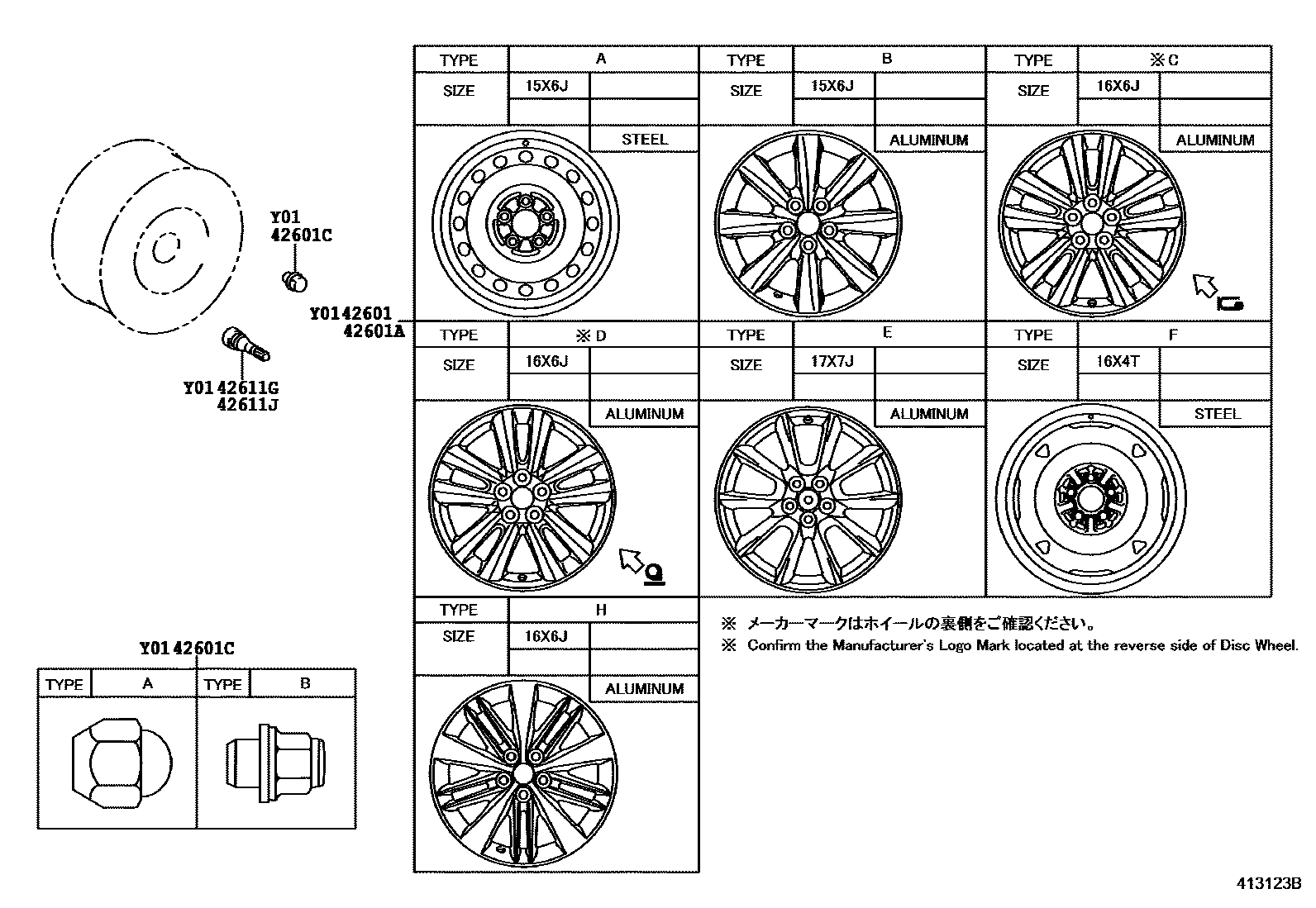

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-20A30×4iZGE20,25..18X..CBU200903-201204

main42611-68030×4iZGE21,25..(18S,20G)..CBU200903-201204

main42611-68050×4iZGE20..18G;ZGE25..(18G,18S)..CBU201204

main42611-68100×4iZGE22..CBU200903-201204

main42611-68130×4iZGE22201204

main42611-68110×4supersedes 42611-68120iZGE20..18S..CBU201107-201204

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iZGE2#..CBU200903-201204

main42611-20841iZGE2#..CBU201301

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iZGE20,25..18X..CBU200903-201204

main90942-01033×20iZGE2#..(18G,18S,20Z)..CBU201204

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iZGE2#..CBU200903-201204

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZGE2#..CBU200903-201204

5 parts on this diagram · 4 diagrams in section
