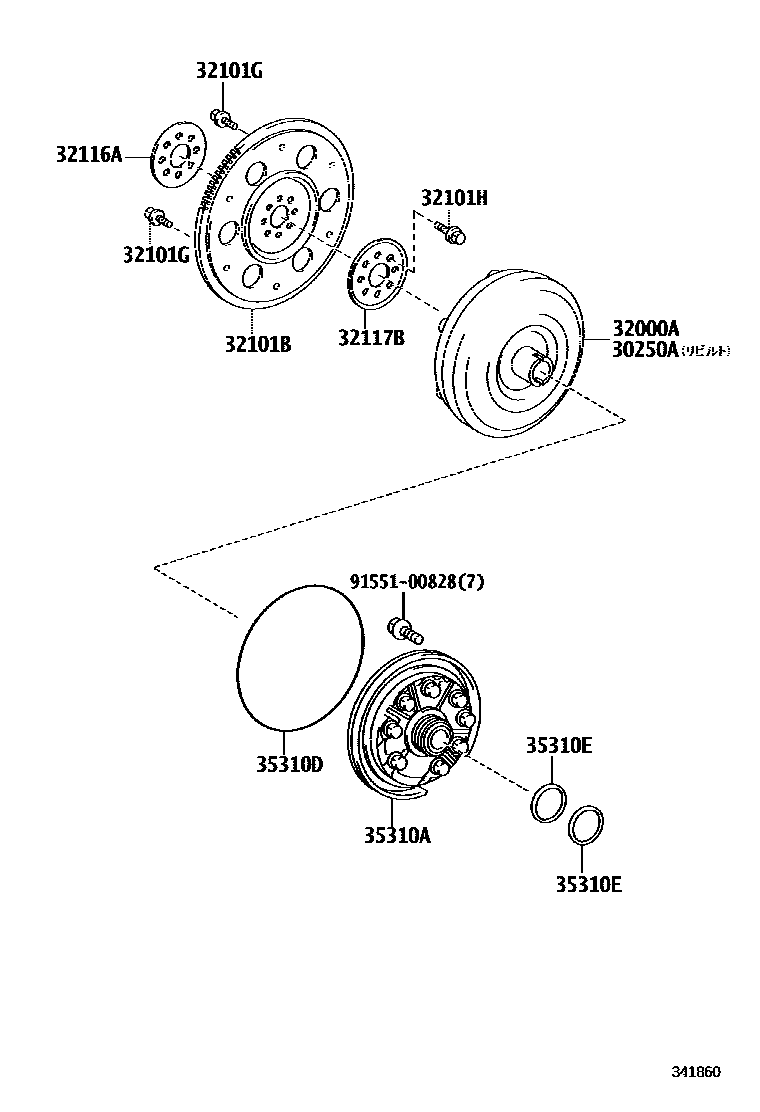

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311,K311F,K313 0002 1K111

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-12490iZGE20..CBU201505-201711

32000ACONVERTER ASSY, TORQUE

main32000-12400iZGE20..CBU201204-201505

main32000-12490iZGE20..CBU201505-201711

main32000-28180iZGE21,22..CBU200903-201204

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZGE20,25..CBU200903-201204

main32101-28050iZGE22201204-201711

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZGE20,25..CBU200903-201204

main90109-09001iZGE22201204-201711

main90119-08498×5iZGE20,25..CBU201204-201711

main90119-09025×5iZGE22201204-201711

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZGE2#..CBU200903-201204

main90105-A0022×8iZGE2#..CBU200903-201003

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGE2#..CBU201204-201711

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGE2#..CBU201204-201711

35310APUMP ASSY, FRONT OIL

main35310-12121iZGE20..CBU200903-201204

main35310-28030iZGE21,22..CBU200903-201204

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iZGE21,22..CBU200903-201204

main90301-99133iZGE20..CBU200903-201204

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iZGE20..CBU200903-201204

main35617-44010×2iZGE21,22..CBU200903-201204

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
