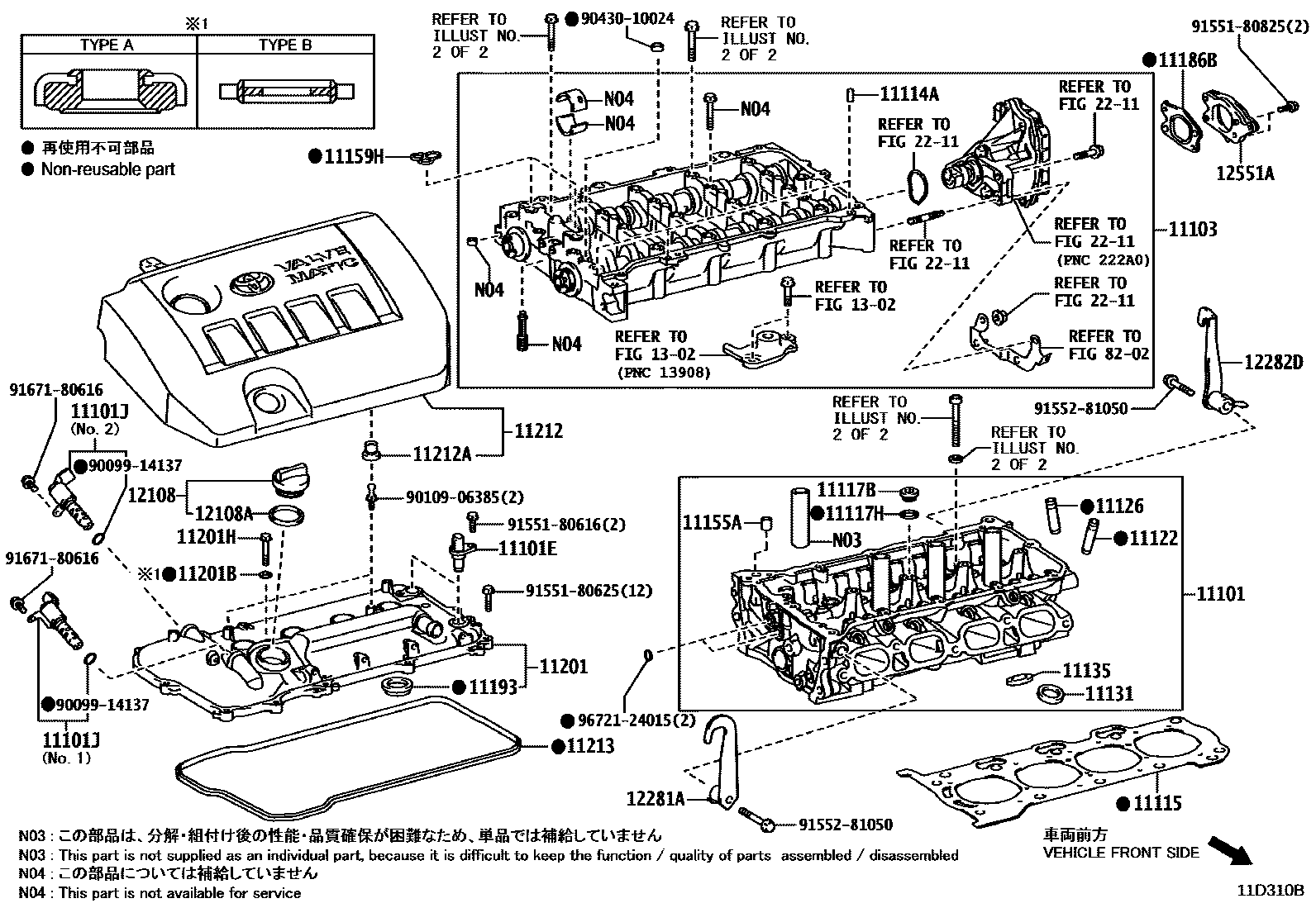

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11103HOUSING SUB-ASSY, CAMSHAFT
sub11107-37013
sub11107-37014
sub11107-37015
sub11107-37022
sub11107-37023
sub11107-37024
11114APIN, STRAIGHT
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11186BGASKET, CAMSHAFT HOUSING REAR COVER
11193GASKET, SPARK PLUG TUBE
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12551ABRACKET, VACUUM PUMP, NO.1
1302
2211
8202
9009914137
main90099-14137
9010906385
main90109-06385
9043010024
main90430-10024
9155180616
main91551-80616
9155180625
main91551-80625
9155180825
main91551-80825
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
39 parts on this diagram · 2 diagrams in section
