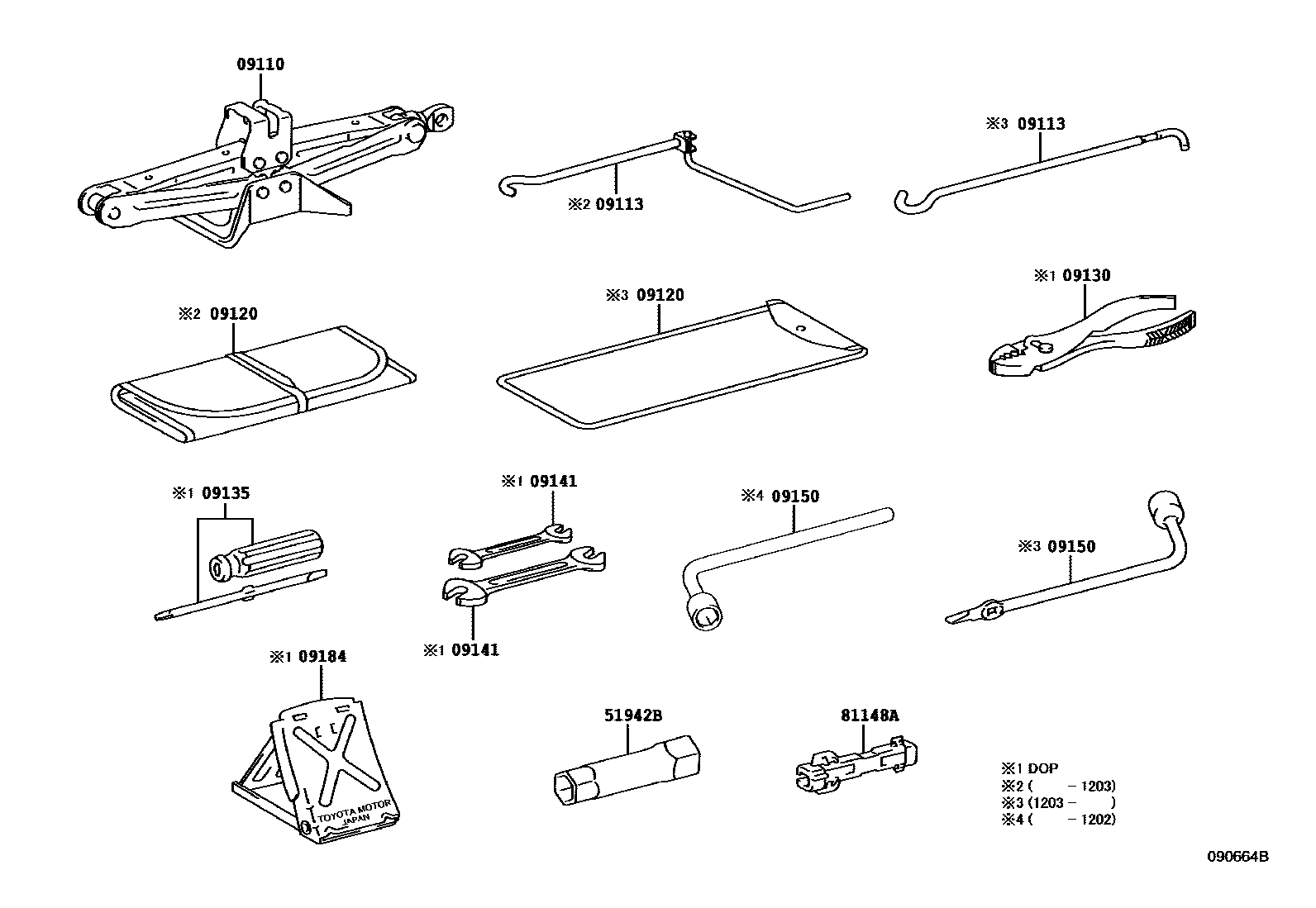

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-33030iZGE2#..CBU201010-201512

sub09111-76010

main09111-50051iZGE2#..CBU200903-201010

sub09111-76011

main09111-76010iZGE2#..CBU201601

sub09111-76011

09113HANDLE, JACK

main09113-42030iZGE2#..CBU201203-201204

main09113-44010iZGE2#..CBU200903-201203

09120BAG, TOOL

main09120-16030iZGE2#..CBU200903-201203

main09120-37030iZGE2#..CBU201203-201204

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iZGE2#..CBU200903-201202

main09150-42010iZGE2#..CBU201203-201711

09184STOPPER, WHEEL

main09184-00010

51942BHANDLE, SPARE WHEEL CARRIER BOLT

main51942-68010iZGE2#..CBU200903-201204

81148AATTACHMENT, HEADLAMP AIMER

main81148-68010iZGE2#..CBU200903-201711

10 parts on this diagram · 2 diagrams in section
