HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

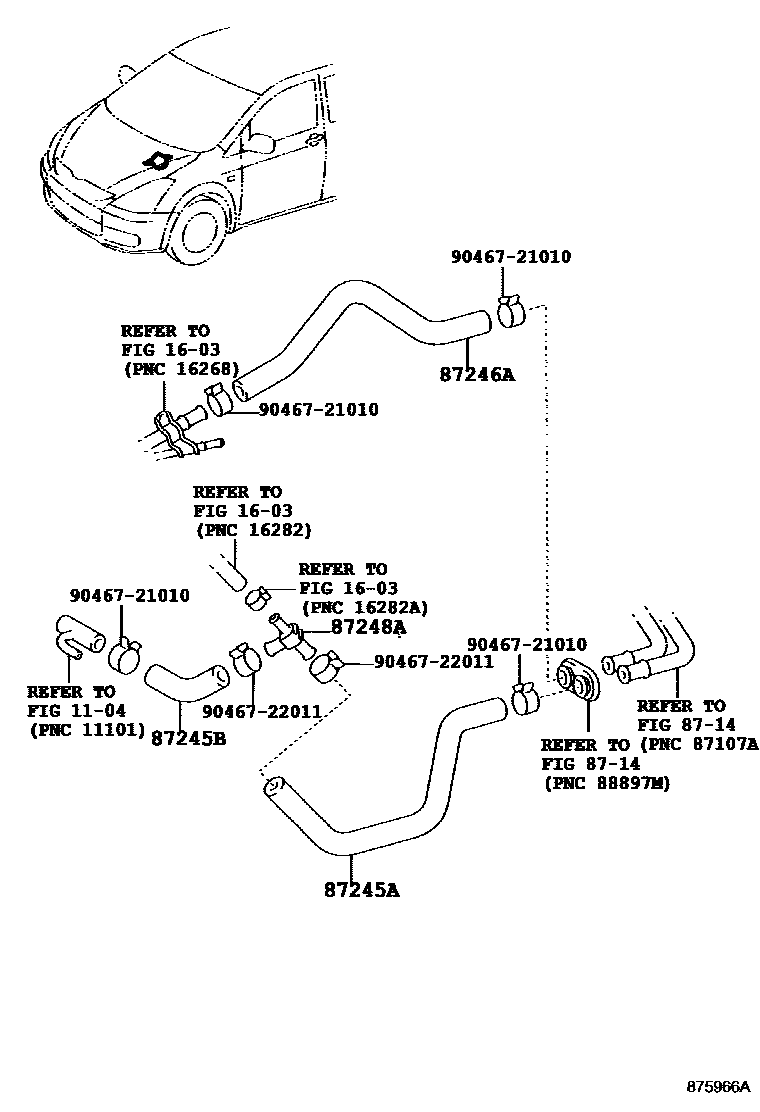

87245AHOSE, HEATER WATER, INLET A

main87245-2D600iANE1#200304-200508

main87245-2D601iANE1#200705-200903

main87245-2D620iZNE10200301-200411

main87245-2D680iZNE10200411-200508

main87245-2D681iZNE1#200705-200711

main87245-2D682iZNE1#200712-200903

87245BHOSE, HEATER WATER, INLET B

main87245-2D660iANE1#200508-200705

main87245-2D661iANE1#200705-200903

main87245-2D670iZNE10200301-200411

main87245-68060iZNE10200411-200508

main87245-68061iZNE10200705-200903

87246AHOSE, HEATER WATER, OUTLET A

main87245-2D610iANE1#200304-200508

main87245-2D611iANE1#200705-200903

main87245-2D630iZNE10200301-200411

main87245-2D631iZNE14200705-200711

main87245-2D632iZNE14200712-200903

main87245-68050iZNE10200508-200705

main87245-68051iZNE10200705-200903

87248APIPE, HEATER WATER INLET, A

main87248-20380iZNE10200301-200411

main87248-44180iZNE10200508-200903

9046721010

main90467-21010

9046722011

main90467-22011
