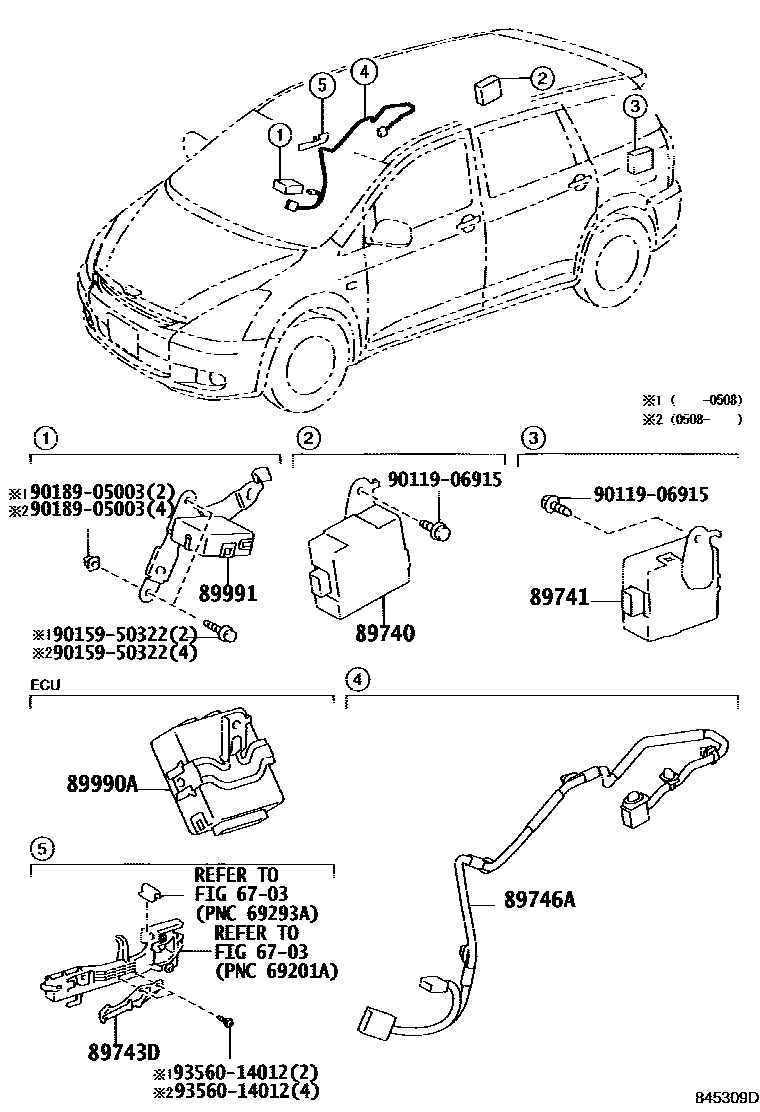

WIRELESS DOOR LOCK

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-68010iANE1#200508-200903

89741RECEIVER, DOOR CONTROL

main89741-68010iZNE1#; ZNE10200508-200903

main89741-68020iANE1#,ZNE1#200301-200508

89743DBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130iANE1#200508-200903

main89743-68010iANE1#200508-200903

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-68010iANE1#200508-200903

main89746-68030iANE1#200508-200903

89990ACOMPUTER ASSY, SMART KEY

main89990-68030iANE1#200508-200903

main89990-68020iANE1#,ZNE1#200304-200508

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-68020iANE1#200508-200903

main89991-68030iANE1#; ZNE1#200508-200701

main89991-68060iANE1#200702-200903

main89991-68050iANE1#,ZNE1#200301-200406

9011906915

main90119-06915

9015950322

main90159-50322

9018905003

main90189-05003

9356014012

main93560-14012

11 parts on this diagram · 1 diagram in section
