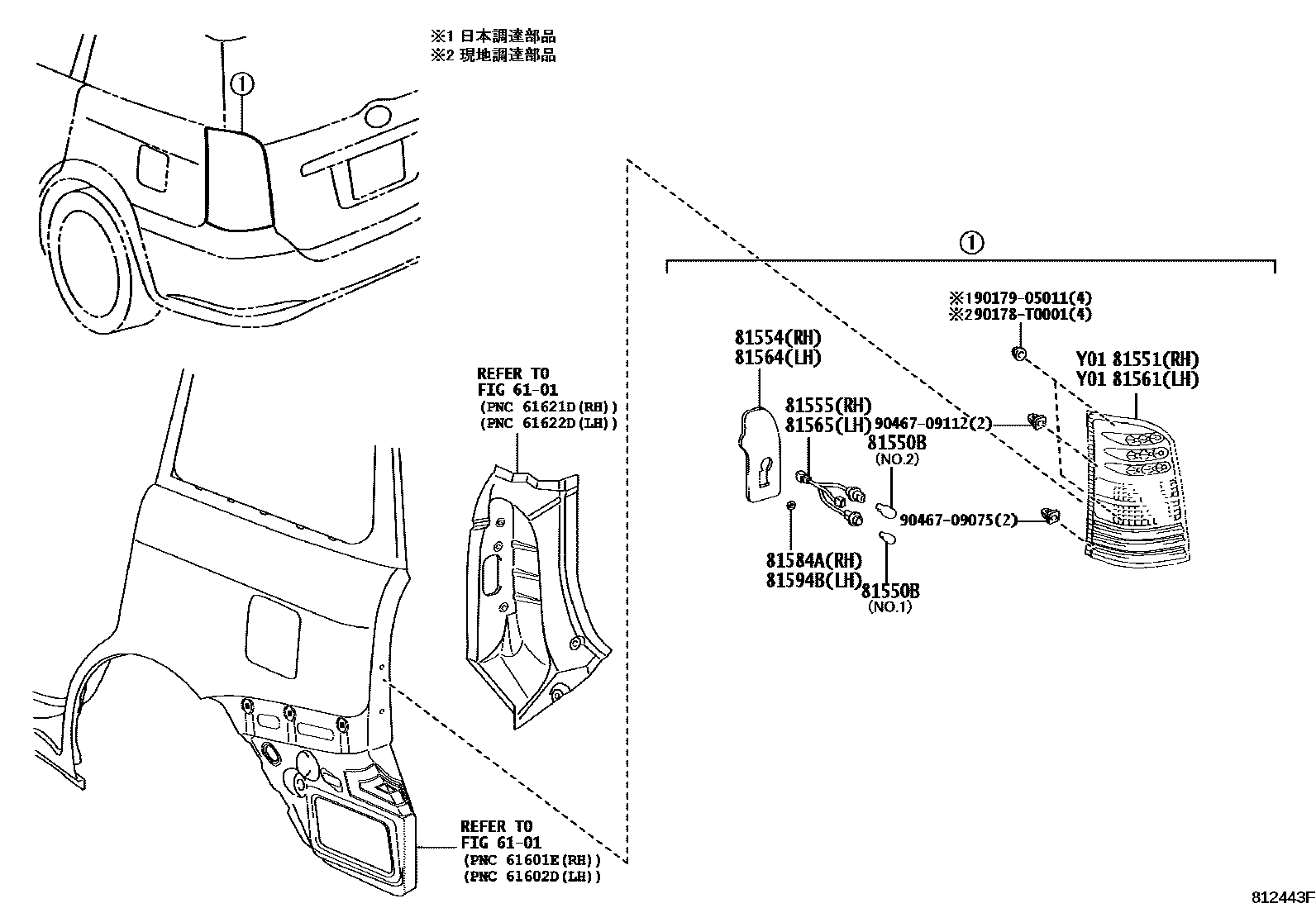

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059×2iANE1#,ZNE1#200301-200508

main90981-15011×2iANE1#,ZNE1#200301-200508

81551LENS, REAR COMBINATION LAMP, RH

main81551-68010iANE1#,ZNE1#200301-200508

main81551-68030iANE1#,ZNE1#200508-200903

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-68010iANE1#,ZNE1#200301-200508

main81554-68030iANE1#,ZNE1#200508-200702

main81554-68040iANE1#,ZNE1#200702-200903

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-68010iANE1#,ZNE1#200301-200508

main81555-68030iANE1#,ZNE1#200508-200903

81561LENS, REAR COMBINATION LAMP, LH

main81561-68010iANE1#,ZNE1#200301-200508

main81561-68030iANE1#,ZNE1#200508-200903

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-68010iANE1#,ZNE1#200301-200508

main81564-68030iANE1#,ZNE1#200508-200702

main81564-68040iANE1#,ZNE1#200702-200903

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-68010iANE1#,ZNE1#200301-200508

main81555-68030iANE1#,ZNE1#200508-200903

81584AGASKET, REAR LAMP RH

main81584-22040iANE1#,ZNE1#200301-200508

81594BPACKING, REAR LAMP LH

main81584-22040iANE1#,ZNE1#200301-200508

90178T0001

main90178-T0001

9017905011

main90179-05011

9046709075

main90467-09075

9046709112

main90467-09112

14 parts on this diagram · 2 diagrams in section
