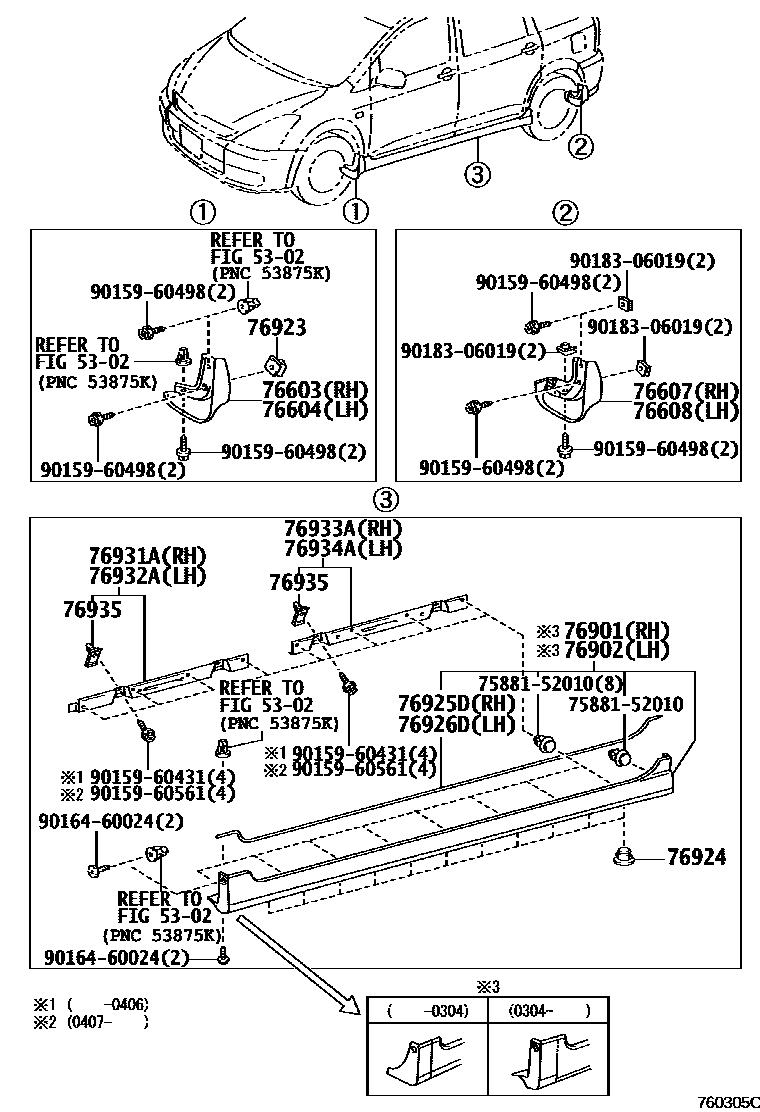

MUDGUARD & SPOILER

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-68010-A0iANE10,ZNE1#200301-200508

main76621-68010-A1iANE10,ZNE1#200508-200903

main76621-68010-B0iANE10,ZNE1#200301-200508

main76621-68010-B1iANE10,ZNE1#200508-200903

main76621-68010-B2iANE10,ZNE1#200508-200903

main76621-68010-B3iANE10,ZNE1#200508-200903

main76621-68010-C0iANE10,ZNE1#200301-200508

main76621-68010-D0iANE10,ZNE1#200508-200903

main76621-68010-F0iANE10,ZNE1#200301-200406

main76621-68010-J0iANE10,ZNE1#200301-200508

main76621-68010-J1iANE10,ZNE1#200402-200508

main76621-68010-J2iANE10,ZNE1#200508-200903

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-68010-A0iANE10,ZNE1#200301-200508

main76622-68010-A1iANE10,ZNE1#200508-200903

main76622-68010-B0iANE10,ZNE1#200301-200508

main76622-68010-B1iANE10,ZNE1#200301-200508

main76622-68010-B2iANE10,ZNE1#200508-200903

main76622-68010-B3iANE10,ZNE1#200508-200903

main76622-68010-C0iANE10,ZNE1#200301-200508

main76622-68010-D0iANE10,ZNE1#200508-200903

main76622-68010-F0iANE10,ZNE1#200301-200406

main76622-68010-J0iANE10,ZNE1#200301-200508

main76622-68010-J1iANE10,ZNE1#200402-200508

main76622-68010-J2iANE10,ZNE1#200508-200903

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-68010-A0iANE10,ZNE1#200301-200508

main76625-68010-A1iANE10,ZNE1#200508-200903

main76625-68010-B0iANE10,ZNE1#200301-200508

main76625-68010-B1iANE10,ZNE1#200301-200508

main76625-68010-B2iANE10,ZNE1#200508-200903

main76625-68010-B3iANE10,ZNE1#200508-200903

main76625-68010-C0iANE10,ZNE1#200508-200903

main76625-68010-D0iANE10,ZNE1#200508-200903

main76625-68010-F0iANE10,ZNE1#200301-200406

main76625-68010-J0iANE10,ZNE1#200301-200508

main76625-68010-J1iANE10,ZNE1#200402-200508

main76625-68010-J2iANE10,ZNE1#200508-200903

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-68010-A0iANE10,ZNE1#200301-200508

main76626-68010-A1iANE10,ZNE1#200301-200508

main76626-68010-B0iANE10,ZNE1#200301-200508

main76626-68010-B1iANE10,ZNE1#200301-200508

main76626-68010-B2iANE10,ZNE1#200508-200903

main76626-68010-B3iANE10,ZNE1#200508-200903

main76626-68010-C0iANE10,ZNE1#200301-200508

main76626-68010-D0iANE10,ZNE1#200508-200903

main76626-68010-F0iANE10,ZNE1#200301-200406

main76626-68010-J0iANE10,ZNE1#200301-200508

main76626-68010-J1iANE10,ZNE1#200402-200508

main76626-68010-J2iANE10,ZNE1#200508-200903

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-68030-A0iANE11; ZNE1#200304-200508

main76901-68030-B0iANE11; ZNE1#200304-200508

main76901-68030-B1iANE11; ZNE1#200508-200903

main76901-68030-B4iANE11; ZNE1#200508-200903

main76901-68030-B5iANE11; ZNE1#200508-200903

main76901-68030-C0iANE11; ZNE1#200304-200508

main76901-68030-D0iANE11; ZNE1#200304-200508

main76901-68030-J0iANE11; ZNE1#200304-200508

main76901-68030-J3iANE11; ZNE1#200402-200508

main76901-68020-A0iZNE1#200301-200304

main76901-68020-B0iZNE1#200301-200304

main76901-68020-B1iZNE1#200301-200304

main76901-68020-C0iZNE1#200301-200304

main76901-68020-D0iZNE1#200301-200304

main76901-68020-J0iZNE1#200301-200304

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-68030-A0iANE11; ZNE1#200304-200508

main76902-68030-B0iANE11; ZNE1#200304-200508

main76902-68030-B1iANE11; ZNE1#200304-200508

main76902-68030-B4iANE11; ZNE1#200508-200903

main76902-68030-B5iANE11; ZNE1#200508-200903

main76902-68030-C0iANE11; ZNE1#200304-200508

main76902-68030-D0iANE11; ZNE1#200304-200508

main76902-68030-J0iANE11; ZNE1#200304-200508

main76902-68030-J3iANE11; ZNE1#200508-200903

main76902-68020-A0iZNE1#200301-200304

main76902-68020-B0iZNE1#200301-200304

main76902-68020-B1iZNE1#200301-200304

main76902-68020-C0iZNE1#200301-200304

main76902-68020-D0iZNE1#200301-200304

main76902-68020-J0iZNE1#200301-200304

76923RETAINER, SIDE MUDGUARD

main76923-68010×2iANE10,ZNE1#200301-200508

76924RETAINER, SIDE MUDGUARD, NO.2

main76924-52021×22iANE11200304-200508

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-68010-B0iANE11; ZNE1#200508-200903

main76925-68010-C0iANE11; ZNE1#200508-200903

76926DPROTECTOR, SIDE MUDGUARD, LH

main76925-68010-B0iANE11; ZNE1#200508-200903

main76925-68010-C0iANE11; ZNE1#200508-200903

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-68010iANE11200304-200508

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-68010iANE11200304-200508

76933ABRACKET, SIDE MUDGUARD, NO.2 RH

main76933-68010iANE11200304-200508

76934ABRACKET, SIDE MUDGUARD, NO.2 LH

main76933-68010iANE11200304-200508

76935RETAINER, SIDE MUDGUARD, NO.7

main76935-68010×8iANE11; ZNE1#200508-200903

7588152010SPACER, REAR COMBINATION RIM, INSIDE RH

main75881-52010

9015960431

main90159-60431

9015960498

main90159-60498

9015960561

main90159-60561

9016460024

main90164-60024

9018306019

main90183-06019

22 parts on this diagram · 2 diagrams in section
