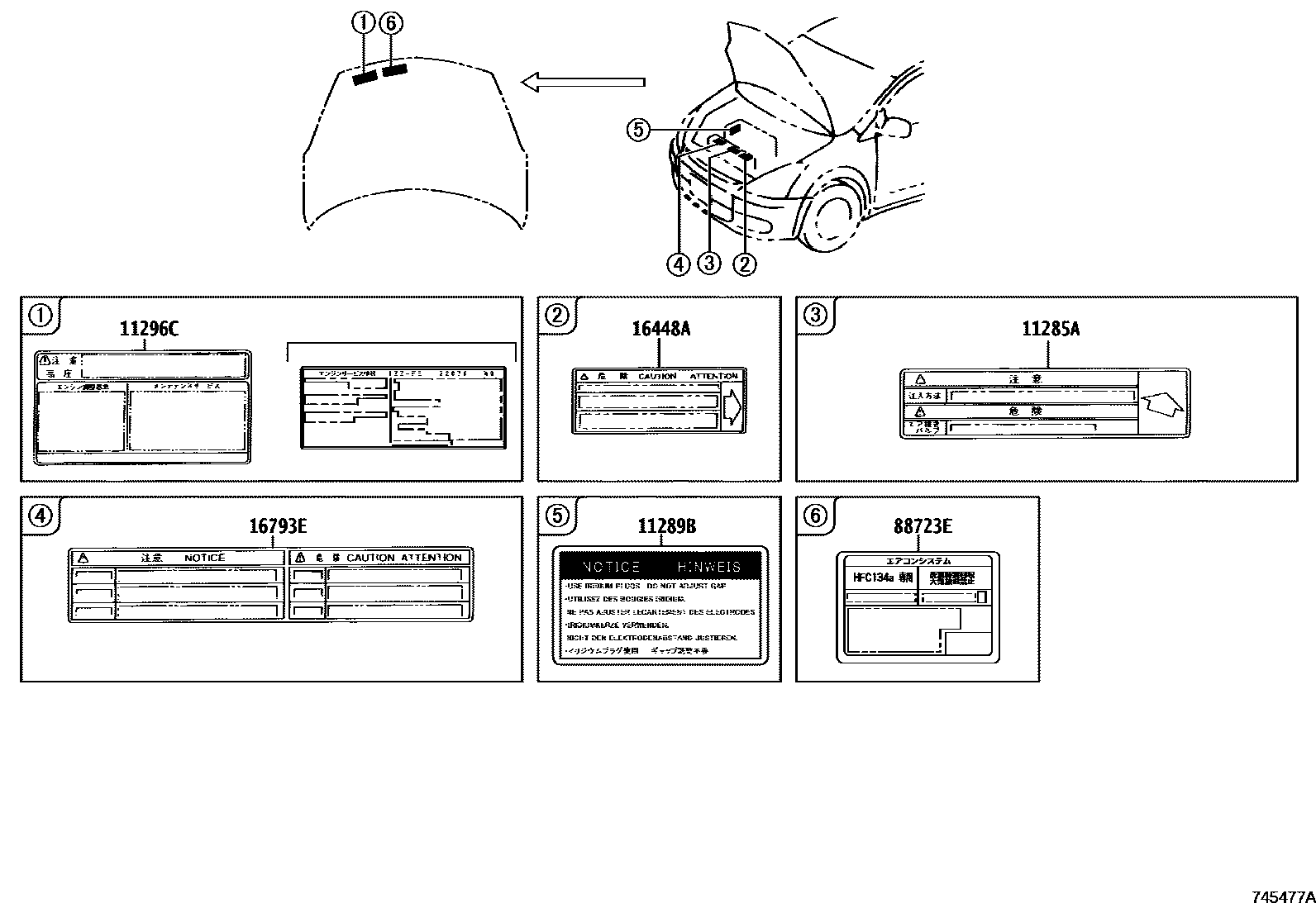

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1�������� 0002 1���������&���� (1/2) 0003 1���������&���� (2/2)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-22050i1ZZFE..ZNE10200508-200903

11289BLABEL, SPARK PLUG NOTICE

main11289-28010i1AZFSE..ANE1#200304-200508

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-22071i1ZZFE..ZNE1#200508-200903

main11296-28021i1AZFSE..ANE1#200304-200508

16448APLATE, RADIATOR CAUTION

main16448-22010i1AZFSE,1ZZFE..ANE1#,ZNE1#200301-200508

16793ELABEL, COOLING FAN CAUTION

main16793-22010i1AZFSE..ANE1#200304-200508

88723ELABEL, COOLER SERVICE CAUTION

main88733-52010iANE1#,ZNE1#200301-200508

sub88733-52011

6 parts on this diagram · 3 diagrams in section
